TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP TYPE | |
| USE WITH | |
| MOUNTING | |
| LOCATING NIB | |
| SHUNTED | |
| CONNECTION. | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| STRIP LENGTH | |
| CERTIFICATION |

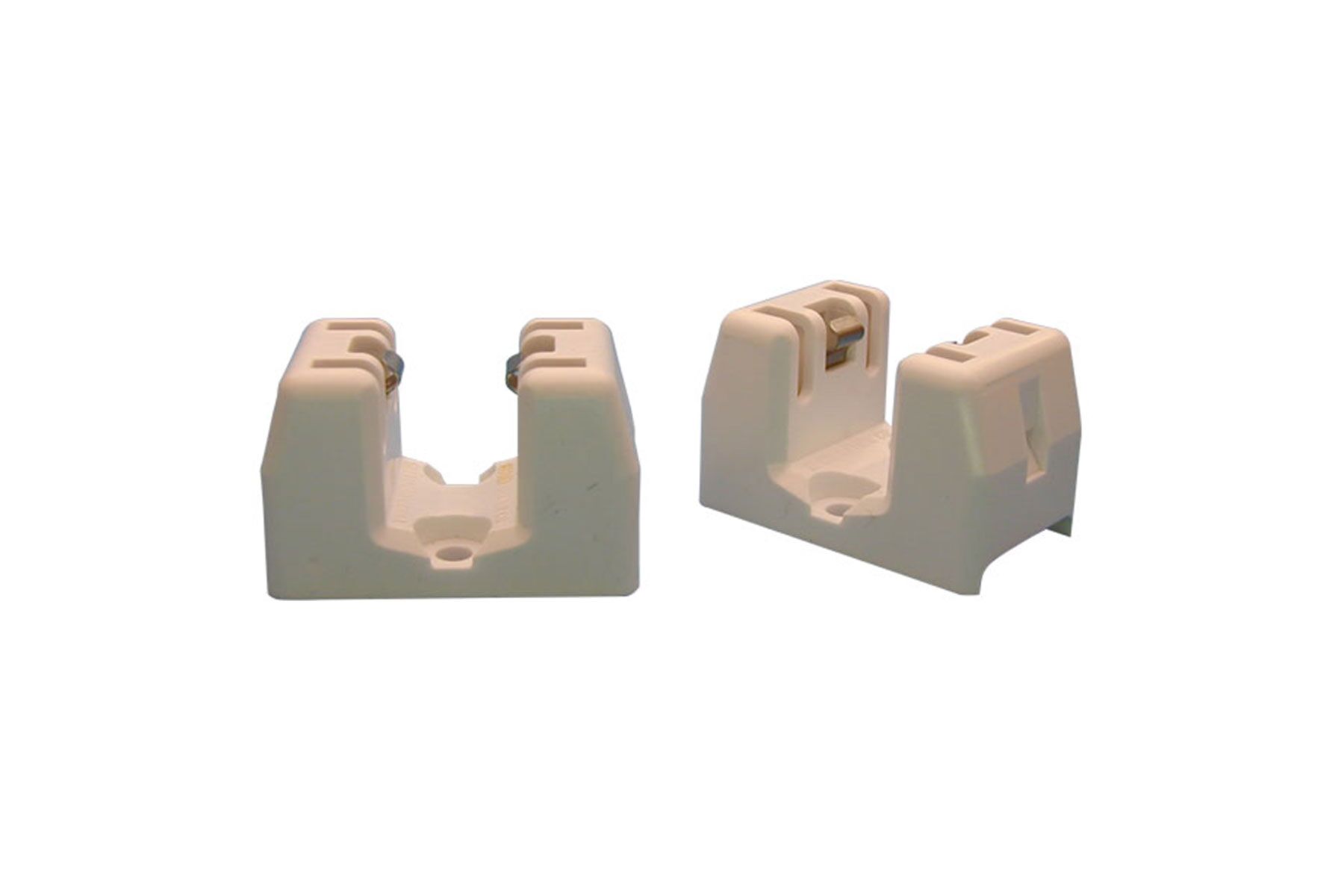

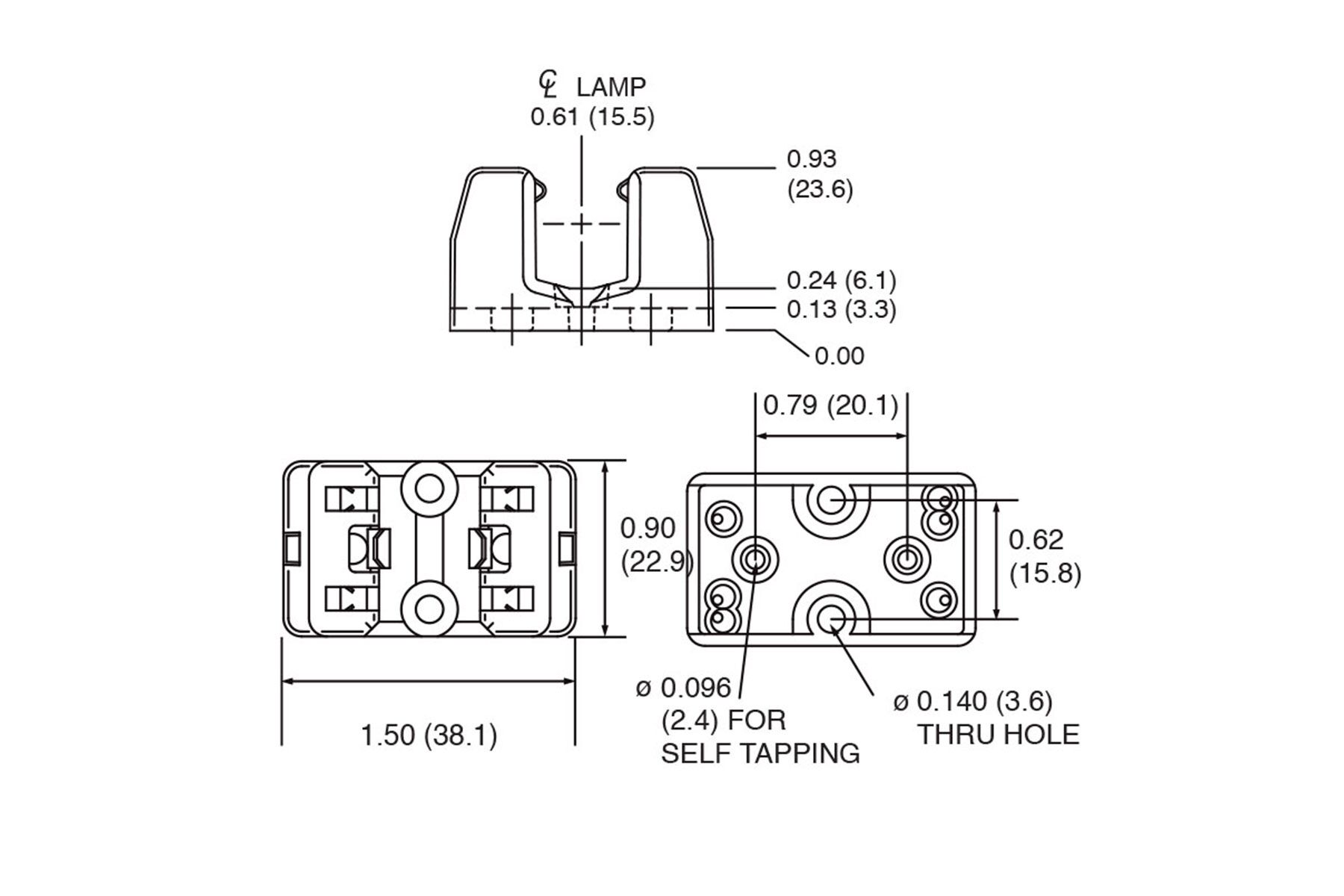

499 – T5 Circline Fluorescent Light Socket – Quick Connect 18 AWG Solid Wire – 40W 2GX13 Base – Snap or Screw Mount – 75 Watt 600 Volts Max – cULus cCSAus
• White polycarbonate body, rated 125°C
• For new HO circline lamps
• Quick connect push-in wire terminals for 18 AWG Solid or Bonded copper wire, stripped 7⁄16”
• Self-tapping or through-hole mount
• Rated 75W, 600V
• UL Listed & CSA Certified
