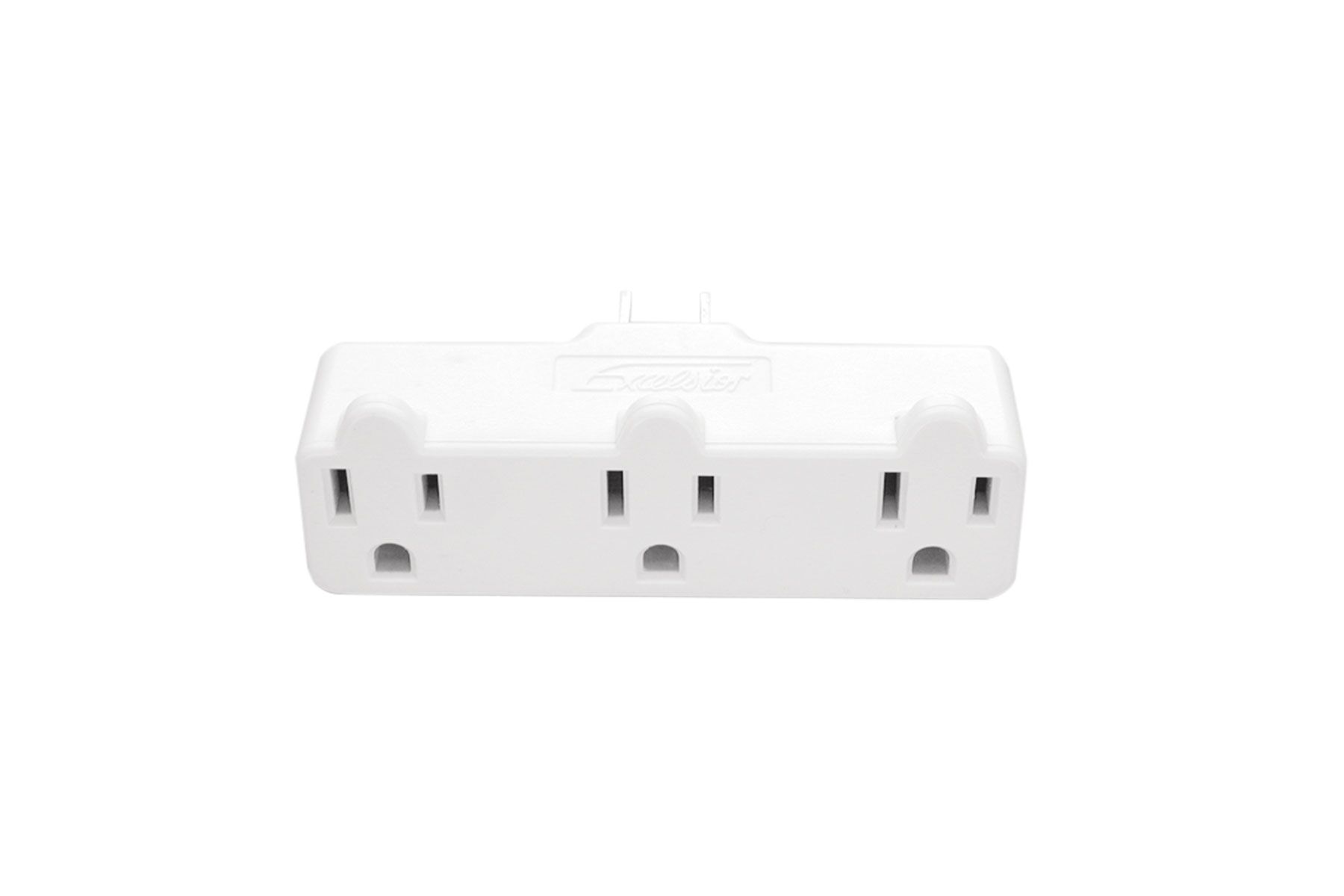

WT-020 – 3 Outlet Ground Current Tap Plug-in Receptacle – Off White – UL Listed, CSA Approved

3 Outlet Ground Current Tap Plug-in Receptacle – Off White – UL Listed CSA Approved

– Made from molded plastic, black or white
– Designed to snap in surface mounting in fixtures, appliances and general applications.
– Tempered steel spring clips to securely hold in panel
– Plastic clips are available, change part no. to 1372P
– Accommodates panel thickness of 0.031” to 0.062” with tight fit
– Other leads lengths and terminations are available
– Rated 15A at 125V
– UL listed and CSA approved
– Accommodates panel thickness of 0.031” to 0.062” with tight fit
– Standard leads are 14AWG 6” AWM/TEW 105ºC on white and black and 16AWG 6” AWM/TEW on green All are stripped 1/2” long
– Rated 15A at 125V
– UL listed and CSA approved

TECHNICAL INFORMATION

ITEM

CONNECTION

Plug-in

NEMA CONNECTOR

5-15R

NO. OF OUTLET

3

MAX AMPS

VOLTAGE (V)

COLOR.

TEMP RATING

CERTIFICATION

,
