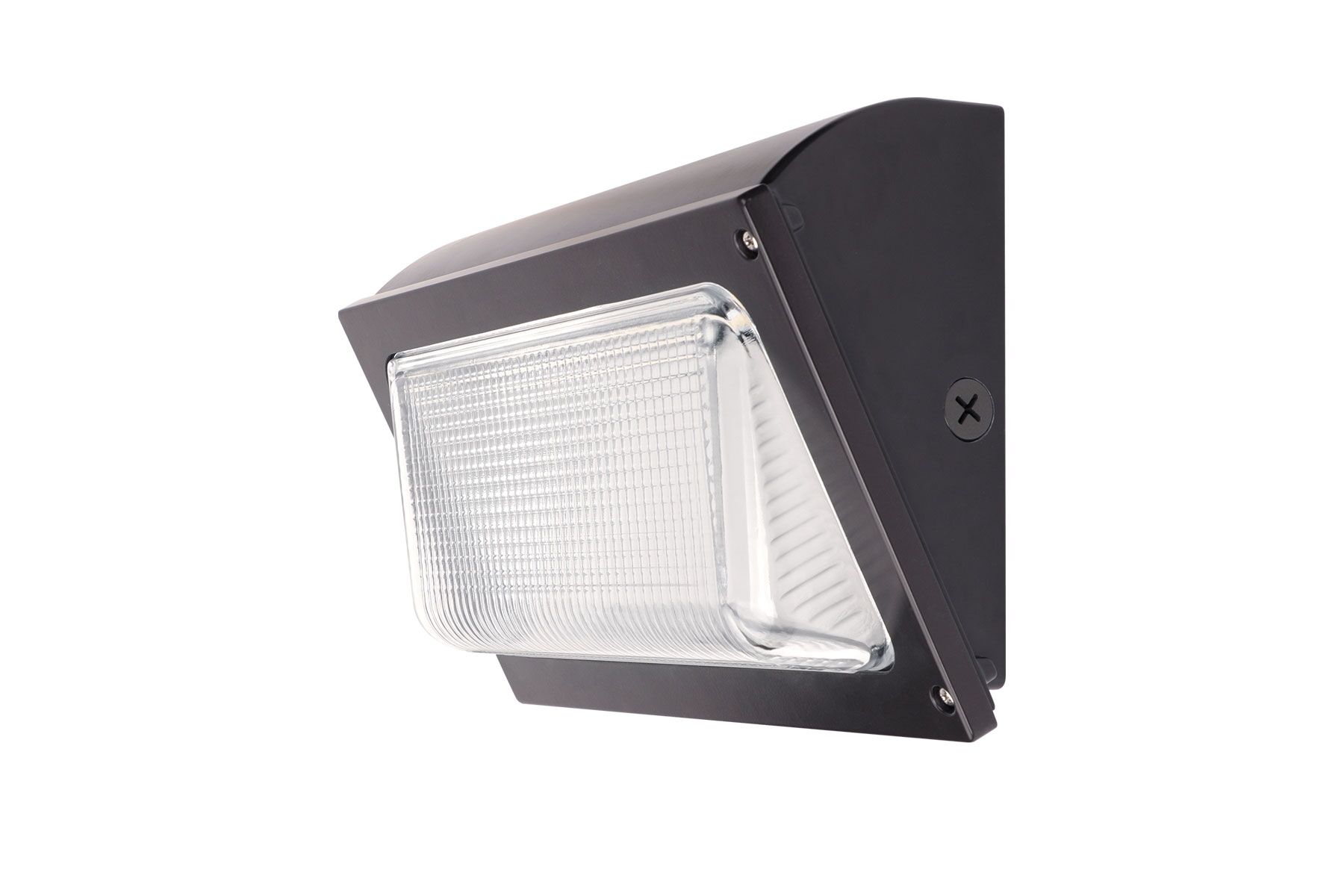

WP5M-M120WC0P-CD – Multi Wattage and Color Selectable Integrated LED Wall Packs, Dusk to Dawn Outdoor Light with Photocell, 0 – 10V Continuous Dimming, 120 – 347V, 72W – 3000K = 9348LM / 4000K = 10052LM / 5000K = 9807LM, 96W – 3000K = 11689LM / 4000K = 12723LM / 5000K = 12297LM, 120W – 3000K = 13878LM / 4000K = 15472LM / 5000K = 14865LM
Etlin-Daniels newest generation of WP5M-M series LED Classic Wall Packs offer an easy to install and high efficiency solution to replace inefficient HID wall packs, or for new construction projects. Available with Multi-Wattage and 3CCT switching, in 120-347V, both available products are the same size housing, allowing for reduced accessories. One Dark Sky Compliant Shield option and one wire guard option.
The durable, ultra-slim die-cast classic housing comes with 4 available ½” conduit hubs: 1 on the back, 1 on each side and one on the bottom. The Borosilicate glass lens diffuses the light source providing uniform distribution. There is a built-in DC photocell which can be disabled, and the IP65 Wet Location rating allows for secure performance over the long fixture life.
For additional energy savings, take advantage of the 0-10V Continuous Dimming. The WP5M-M series is the perfect option for commercial, industrial, healthcare, residential, retail and hospitality facilities.
• Outdoor LED Light Source.
• Light weight, ultra-slim heavy duty die-cast aluminum body
• High efficiency impact resistant Borosilicate glass refractor for uniform illumination
• Wattage selectable switch – 30W / 40W / 50W.• 3CCT switch – 3000K / 4000K / 5000K
• Easy to install housing with spider pattern knockouts
• IP65 Wet Location rated
• 0-10V Continuous Dimming
• Dark Sky Compliant Shield and Wire Guard available
• 5 year warranty
• L70 – 50,000 hours
• DLC 5.1 Premium
|LUMENS (LM)|| |
72W – 3000K = 9348LM | 4000K = 10052LM | 5000K = 9807LM, 96W – 3000K = 11689LM | 4000K = 12723LM | 5000K = 12297LM, 120W – 3000K = 13878LM | 4000K = 15472LM | 5000K = 14865LM
|COLOR TEMPERATURE (K)|
|MASTER CARTON QTY.|
