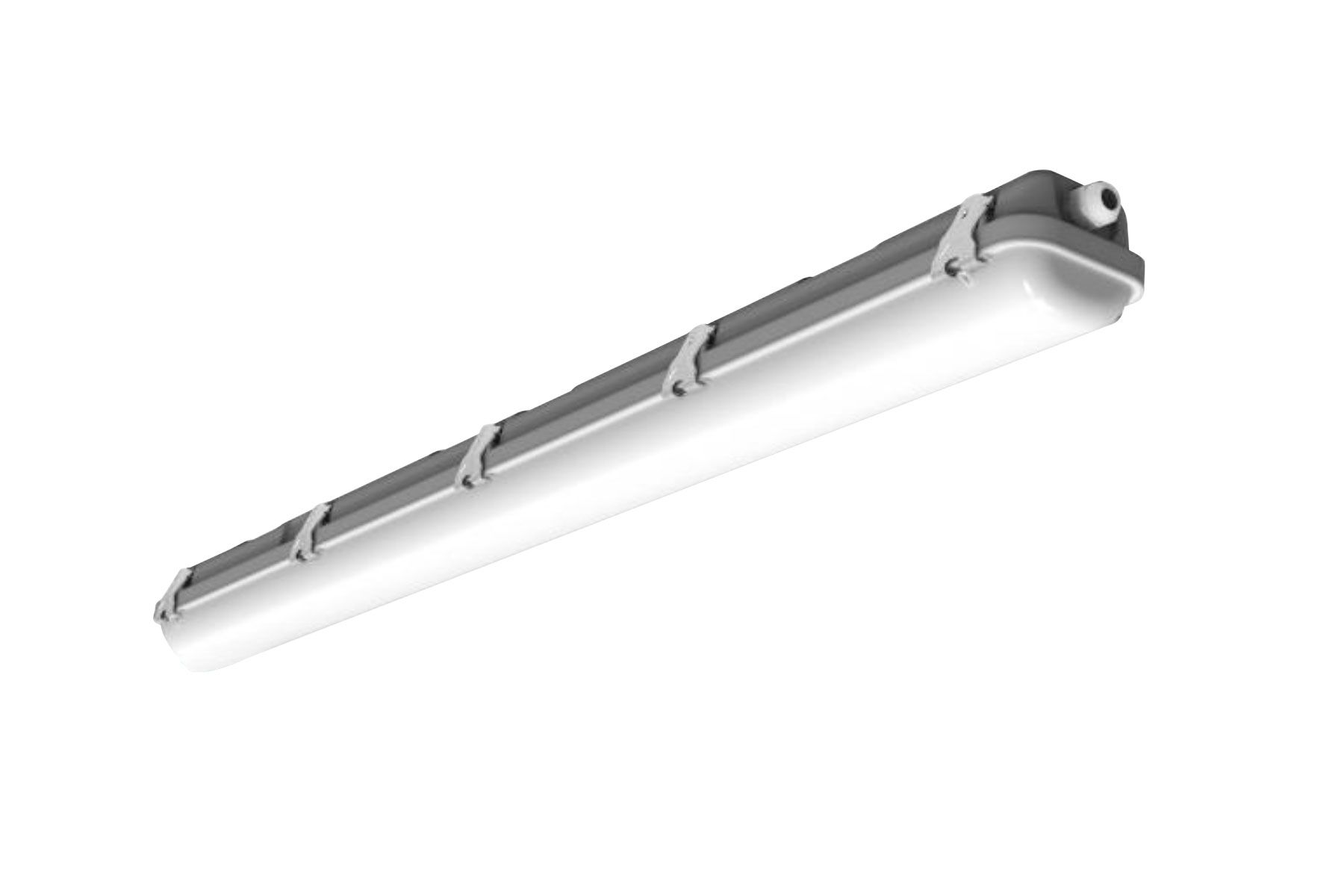

VP542-M46WL0C-F – Multi Wattage and Color Selectable 4 FT. Linear Vapor Tight LED Lights, 0 – 10V Continuous Dimming, Integrated LED, 30W – 3500K = 4382LM / 4000K = 4459LM / 5000K = 4358LM, 38W – 3500K = 5251LM / 4000K = 5320LM / 5000K = 5230LM, 46W – 3500K = 6368LM / 4000K = 6616LM / 5000K = 6343LM, 120 – 347V, Gray with Frosted Lens, CAN ICES-005 (B) / NMB-005 (B)

 The new Etlin-Daniels VP542-M46WLOC-F Linear Vapor Tight fixtures offer the latest in quality, features, and convenience. Available in 120-347V, and with a 3-way switch to adjust available wattages (lumen levels), and also a 3CCT switch, the new VP542 generation offers 9 possible options in illumination and colour temps all in one fixture. This will eliminate potential wattage and color temperature mistakes on job sites, while reducing inventory stress.

Manufactured with stainless steel mounting hardware and clips, and with a durable 100% UV stabilized polycarbonate housing and lens, these fixtures offer a durable, wet location solution for any area where moisture may be a concern. Take advantage of further energy savings by employing the available 0-10V Continuous Dimming.

 • Indoor LED Light Source
• Compact and lightweight 4 foot design
• Stainless steel mounting hardware & clips
• Unique hinging system holds lens and sealed strip portion in place for ease of installation – LED strip remains protected throughout installation.
• UV Stabilized high-impact housing and lens.
• Ceiling and wall flushmount hardware in packaging
• 120-347V
• 3-wattage selectable (30W/38W/46W)
• 3CCT (3500K/4000K/5000K)
• Default settings are 38W / 4000K
• 0-10V Continuous Dimming
• L70 – 50,000 hours, 5 Years Warranty
• IP66, NEMA 4X, IK10, NSF (Non-Food) DLC Standard
