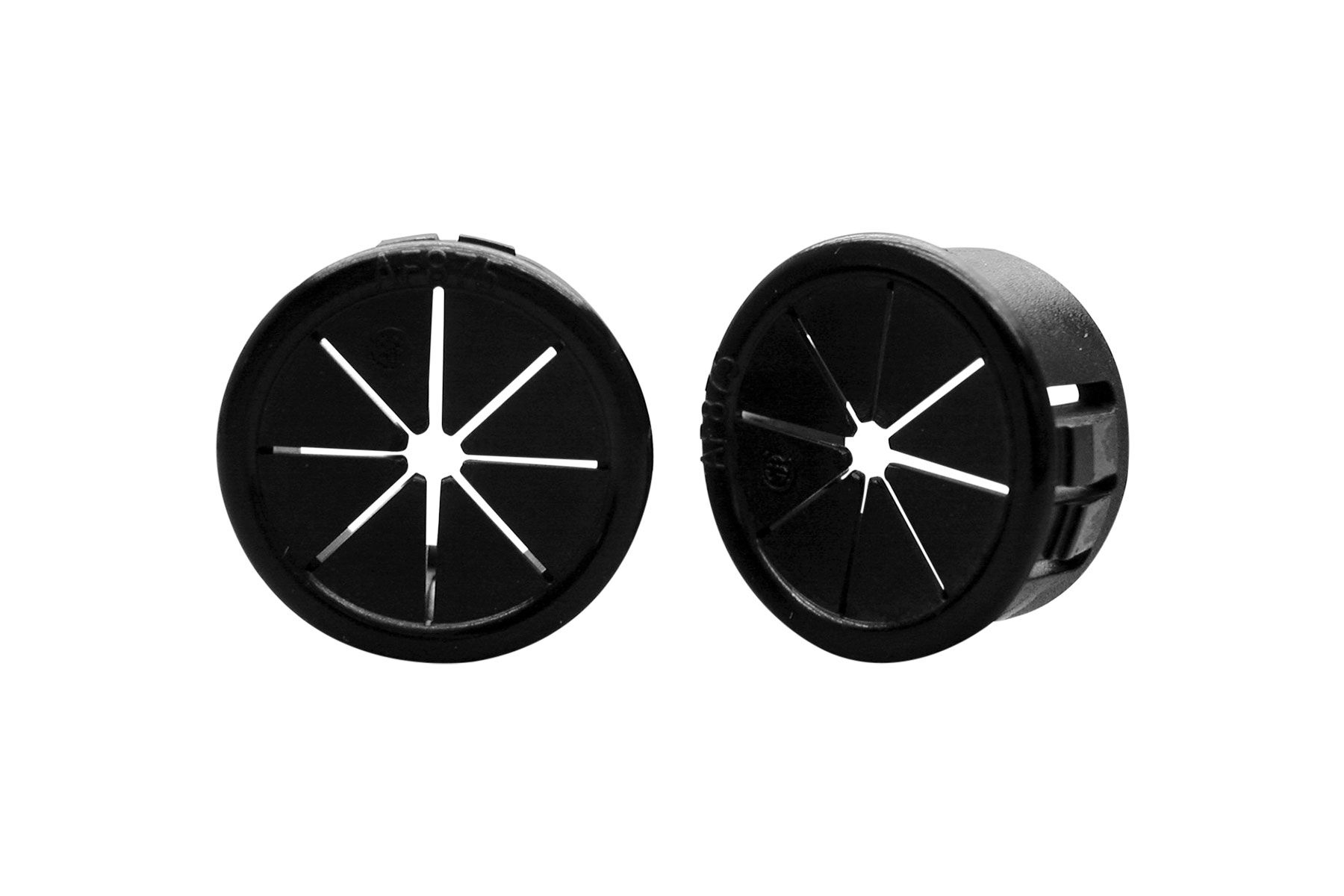

UBE1000 – 1.062 Inch All-Fit Adjustable Insulating Bushing – 1 Inch Hole Diameter – Black – CSA

1.062 Inch All-Fit Adjustable Insulating Bushing – 1 Inch Hole Diameter – Black – CSA

All-Fit Adjustable Insulating Bushings

Etlin-Daniels Nylon “All-Fit” Adjustable Bushings are designed to protect wire, cable, tubing or irregular shaped items from sharp, unfinished edges. The specially designed, resilient multiple supports absorb shock and vibration, and adjust to accept various diameters and shapes.

The All-Fit Bushing is equipped with multiple locks to positively snap-in panel thickness’ ranging from 1⁄32″ to 1⁄8″. Bushings are molded and stocked in Black heat stabilized nylon.

TECHNICAL INFORMATION

ITEM

HOLE DIAMETER

1"

OVERALL DIAMETER

1.062"

THICKNESS

.406"

CHASSIS MAX THICKNESS

.125"

MAX. ID

.75"

MATERIAL

COLOR
