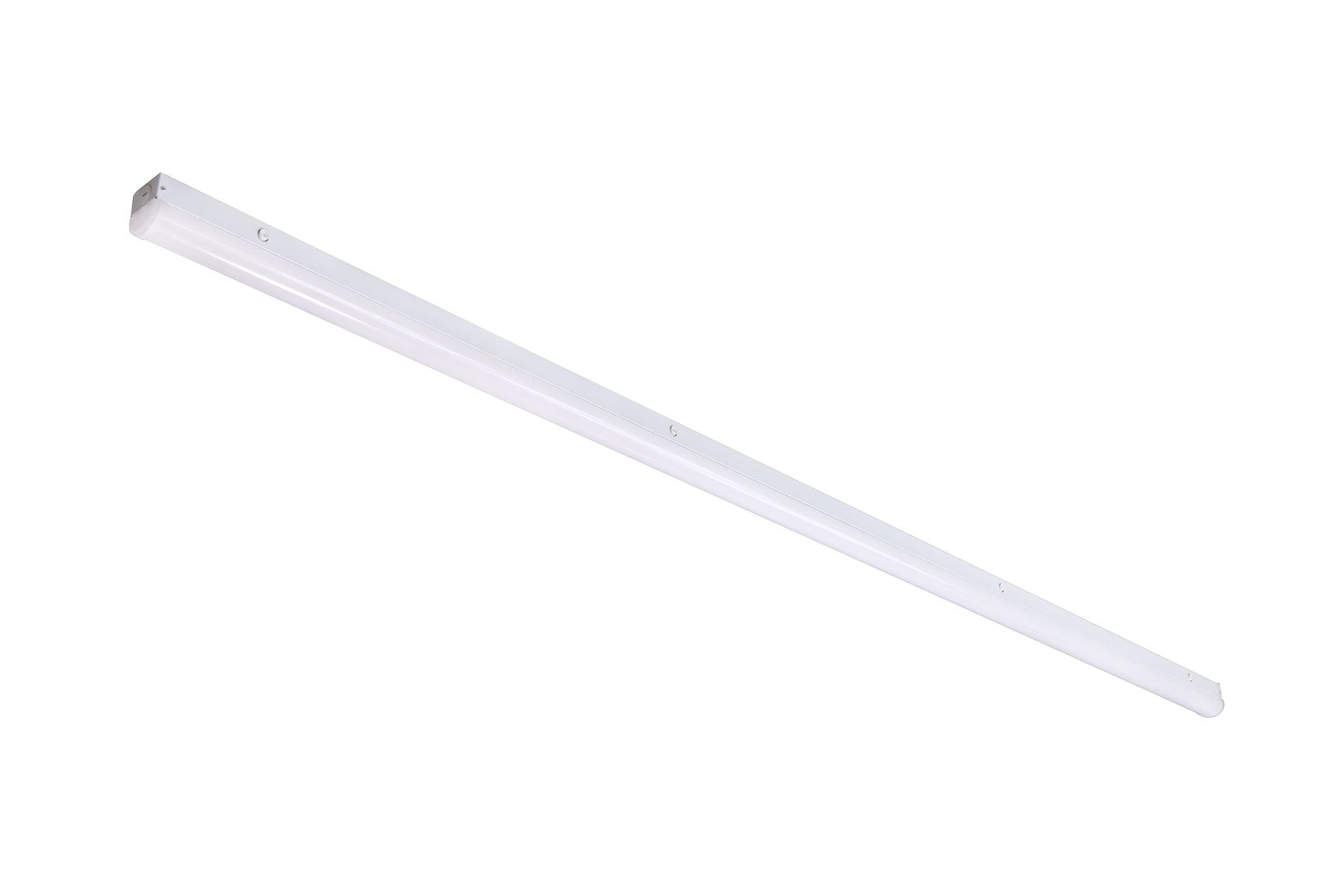

STL68-M90WL4C0-WH – 8 FT. Multi Wattage and Color Selectable Integrated LED Strip Fixture, 0 – 10V Continuous Dimming, 120 – 347V, 70W 80W – 3000K = 10245LM / 3500K = 11406LM / 4000K = 11576LM / 5000K = 11229LM, 90W – 3000K = 11291LM / 3500K = 12144LM / 4000K = 12603LM / 5000K = 12011LM

 The new Etlin-Daniels STL68-M90WL4CO-WH 8 foot LED Strip fixture offers the latest in quality, multi-features and performance. With its slim deign, the STL68 has external buttons that easily release the lighting array and cover, making the internal components easily accessible. And you can choose between 70W, 80W and 90W in light levels as well as 3000K, 3500K, 4000K and 5000K in color temperatures.

The driver offers 2 types of control – it is equipped with available 0-10V Continuous Dimming circuitry, and also has 2 low voltage leads that provide for the installation of an Internal Microwave Sensor option – STL6-SENMC-12V.

The high efficacy of 130lm/w allows for superior energy savings and the frosted lens delivers even and glare-free illumination. End knockouts provide for continuous row mounting / Connection Brackets are available – using the STL6-CBSM for surface mount applications and the STL6-CBSP for suspension mount applications. Wire guards are available to protect from physical shock. An innovative and easy-to-install j-box cover comes with each fixture to ensure that all wires are properly protected and the proper aesthetic is maintained.

FEATURES
• LED Indoor Light Source
• Light weight powder coated metal housing with frosted glare free lens
• Fixtures can be surface or suspension mounted
• End knockouts for continuous row mounting.
• 120-347V
• Damp location rated
• Multi-Wattage Switching – 70W / 80W / 90W4CCT – 3000K / 3500K / 4000K / 5000K
• Optional internal Microwave Sensor option
• J-box covers included
• Wire guards available
• 0-10V Continuous Dimming
• 5 year warranty
• L90 – 51,000 hours
• DLC5.1 Standard – Ambient Lighting / DLC5.1 Premium – Stairwells & Passageways
