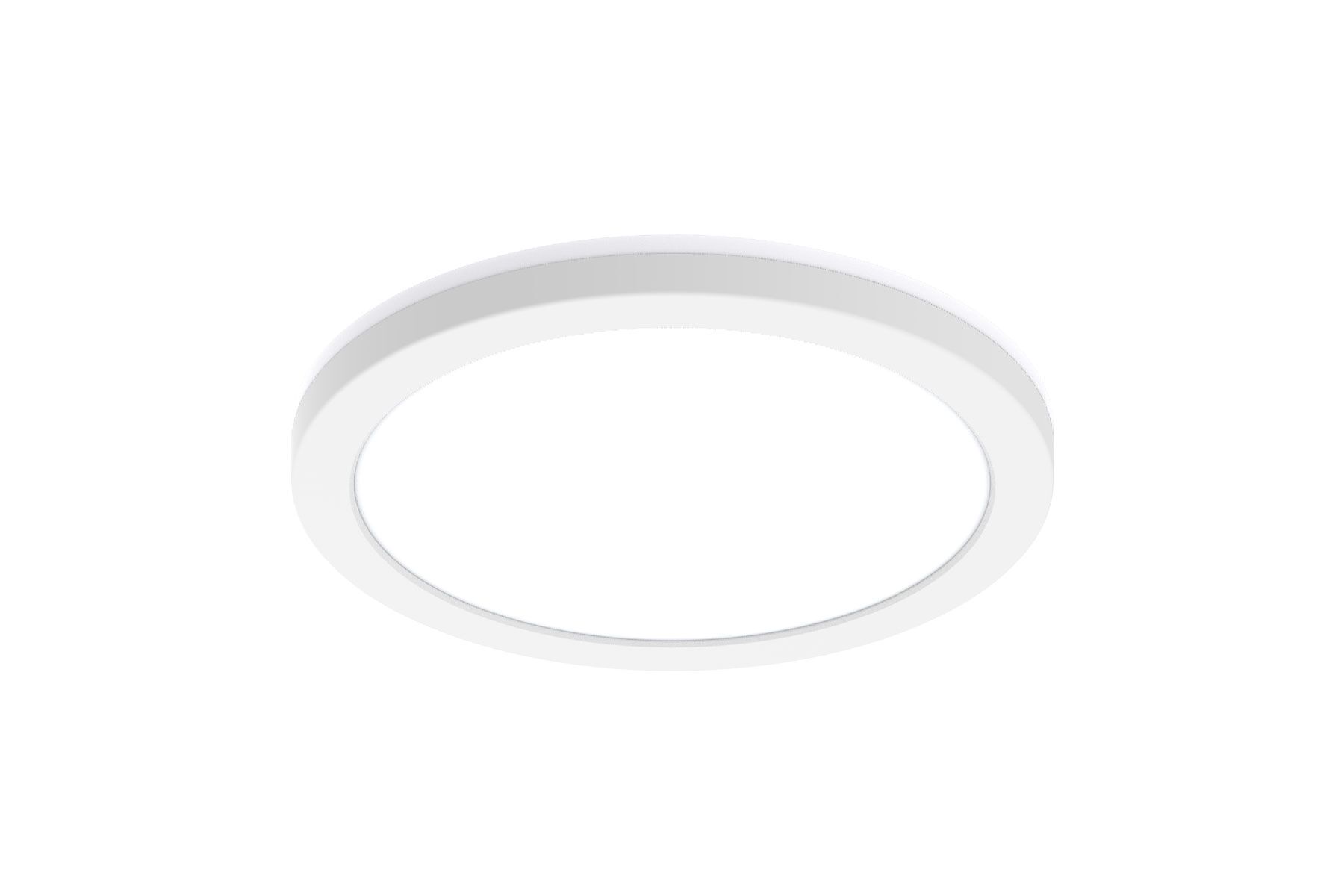

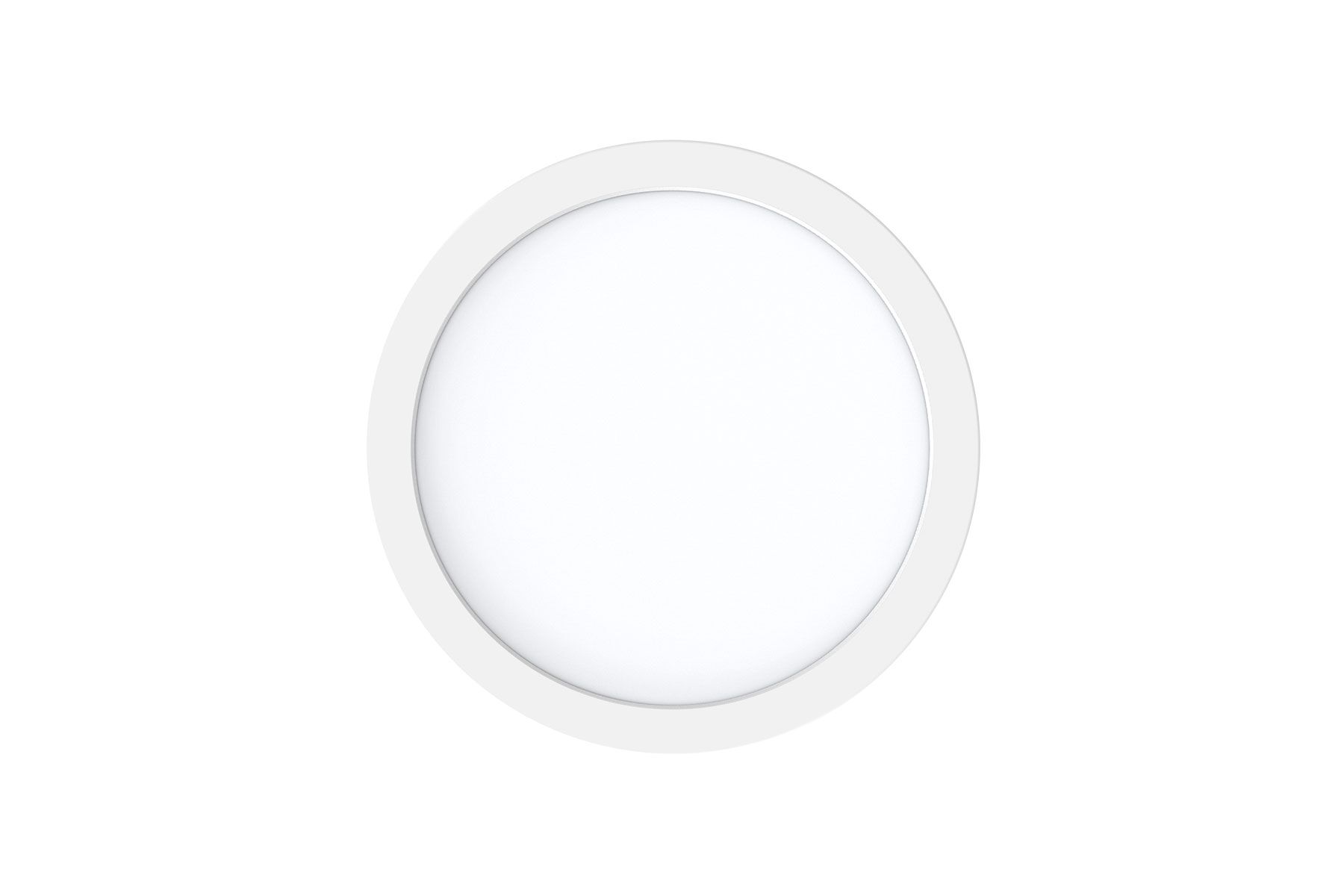

SMSWRNL7-1215CD-WH-FF – 7 Inch. Color Temperature Selectable Integrated LED Slim Flush Mount Night Light 120 Volt, 12W, 2700K/3000K/3500K / 4000K / 5000K = 840LM + 200LM

FEATURES:
• 5CCT – 2700K, 3000K, 3500K, 4000K, 5000K• D.O.B Technology
• Ultraslim 13mm thickness (Standard Fixture) / Ultraslim 16.5mm thickness (Night Light Fixture)
• Uniform Light Distribution
• Wet Location – Indoor Rated (Standard Fixture) / Damp Location – Indoor Rated (Night Light Fixture)
• 120Vac, 60Hz
• >80CRI
• Triac Dimmable
• Clip-on Black & Brushed Nickel Trims available (Not Available for Night Light Fixture)
• Contractor-friendly installation. Rotatable

CERTIFICATIONS:
• cETLus
• Meets ICES-005 Requirements

TECHNICAL INFORMATION
SPEC SHEET
INSTRUCTION MANUAL
IES

TECHNICAL INFORMATION

SIZE	7.00" x 5.47" x 0.52"
Wattage (W)	12W
VOLTAGE (V)	120V
LUMENS (LM)	840LM
COLOR TEMPERATURE (K)	2700K, 3000K, 3500K, 4000K, 5000K
CRI	>80CRI
CONTROL TYPE	TRIAC DIMMABLE
CERTIFICATION	cETLus, CAN ICES-005 (B) / NMB-005 (B)
MASTER CARTON QTY.	20

SPEC SHEET

INSTRUCTION MANUAL

IES

2700K

3000K

3500K

4000K

5000K
