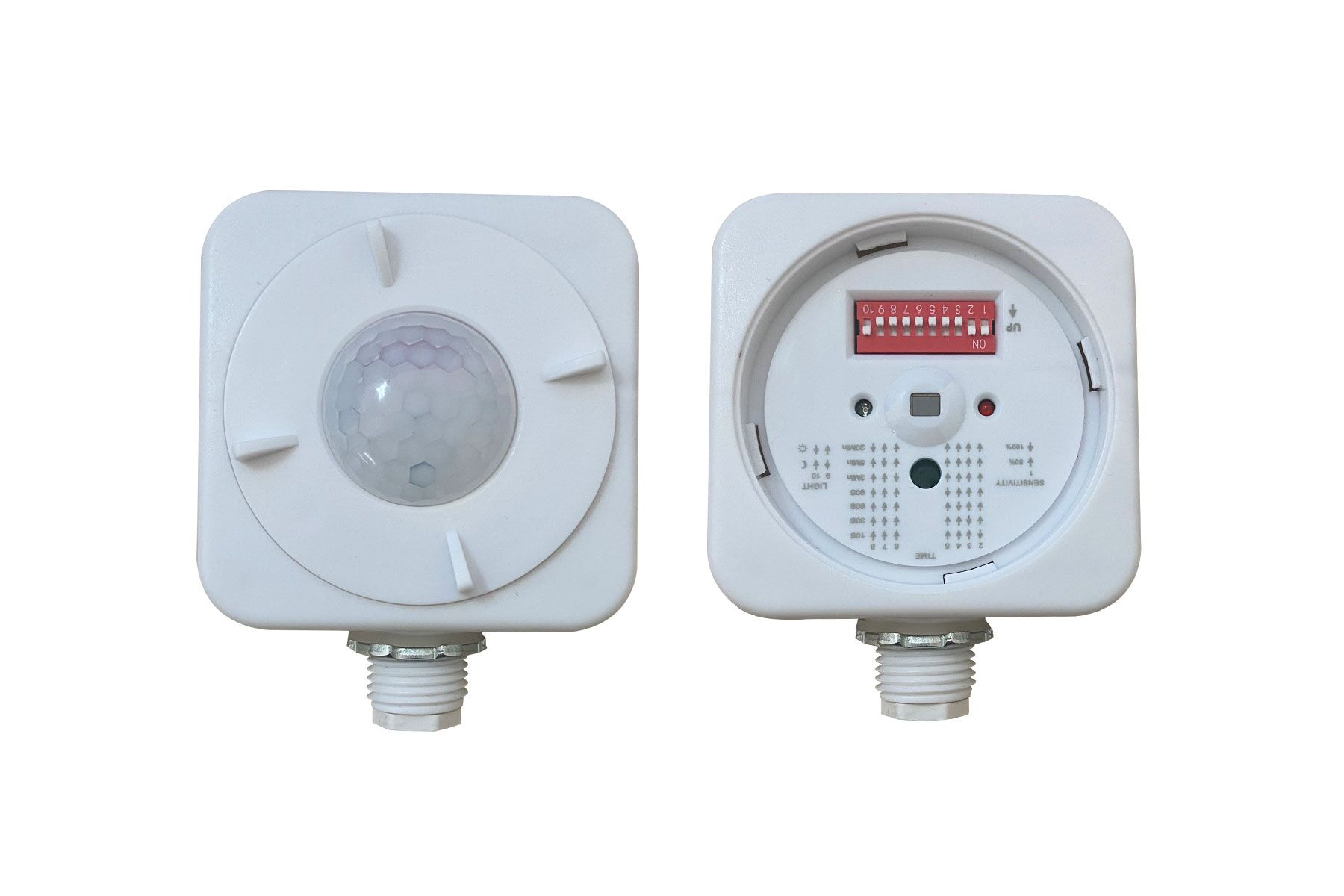

SENPIR-HLB-O – High and Low Bay PIR Occupancy Sensor /120V-277V-347V/360˚

The Etlin-Daniels SENPIR-HLB-O is a Wet Location rated, High / Low Bay Passive Infrared Sensor, which can be mounted to both indoor and outdoor luminaires to provide extra energy savings by turning off fixtures when there is no occupancy. It provides multiple settings by dip switch to regulate Detection Range, Hold Time and Lux Settings.

Please consult the Installation Guide for all available Dip Switch settings and wiring instructions.

• Wet Location Rated Dimmable Infrared Sensor (please ensure proper ingress protection connections are made).
• High / Low Bay rated – all with same lens.
• Coverage 8-40ft.
• No minimum load requirement.
• White high impact injection molded plastic.
• Dip Switches control Detection Range, Hold Time & Lux settings.
• May be used with Halogen / Incandescent, CFL, Fluorescent, HID, LED.

TECHNICAL INFORMATION

COVERAGE RANGE

8' – 40'

INPUT VOLTAGE

AC120V-277V-347V

LOAD REQUIREMENT

800W @ 120VAC
1200W @ 277VAC
1500W @ 347VAC

POWER FREQUENCY

50˜60Hz

CERTIFICATION

, ,

PRODUCT DIMENSIONS

3.84 x 1.74 x 3.2 (INCHES)
