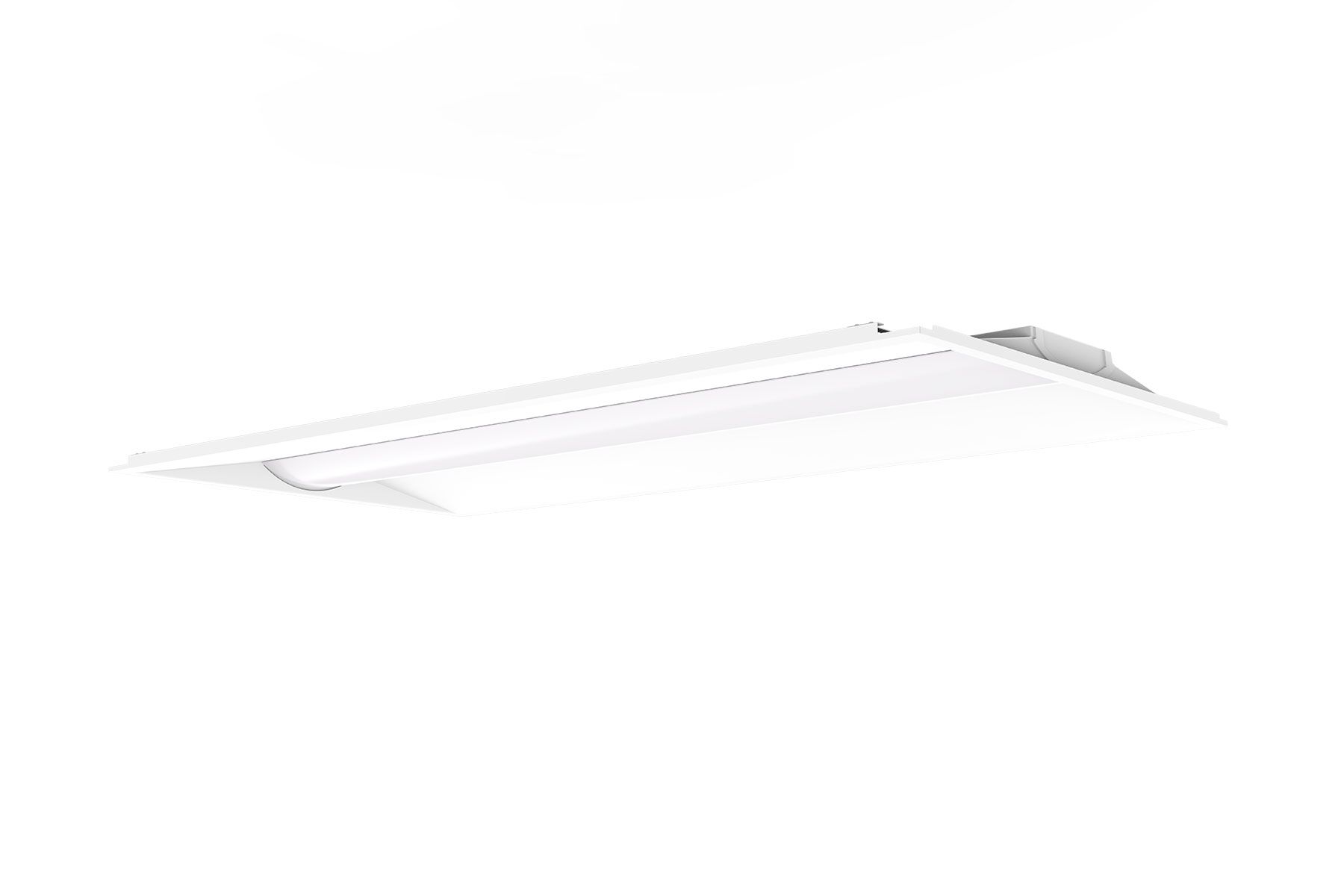

RTDIBS524-M50WC0 – 2 Ft. X 4 Ft. Multi Wattage and Color Selectable Integrated LED Troffer, 0 – 10V Continuous, 30W – 3500K = 3704LM / 4000K = 3845LM / 5000K = 3935LM, 40W – 3500K = 4910LM / 4000K = 5116LM / 5000K = 5193LM, 50W – 3500K = 6297LM / 4000K = 5798LM / 5000K = 5822LM, 100 – 347V
The new generation of Etlin-Daniels RTDIBS5-M series LED Indirect Basket Troffers sets the standard for performance, flexibility, and glare-free illumination. We have eliminated much of the decision guesswork by providing a fixture that operates from 100-347V, with 3CCT and Multi-Wattage switching. All with high efficacy – 125lm/w. For enhanced energy savings, take advantage of the 0-10V Continuous dimming.
The RTDIB5-M series is the perfect solution for large and small public office areas, classrooms and hallways, libraries, cafeterias and dining rooms, hospitals and waiting rooms and long-term care facilities.
• LED Indoor Light Source
• Light weight, shallow body design
• High efficiency reflective PC cover for soft, glare free and bright illumination
• Integrated heat dissipation technology for safer and long-lasting performance
• 100-347V
• Multi-wattage switch – 30W / 40W / 50W
• 3CCT switch – 3500K / 4000K / 5000K
• Efficacy – 125lm/w
• 0-10V Continuous Dimming
• 5 year warranty
• L70 – 50,000 hours
• DLC Premium
TECHNICAL INFORMATION
SIZE | 2Ft. x 4Ft. |
---|---|
Wattage (W) | |
VOLTAGE (V) | |
LUMENS (LM) | 30W – 3500K = 3704LM | 4000K = 3845LM | 5000K = 3935LM, 40W – 3500K = 4910LM | 4000K = 5116LM | 5000K = 5193LM, 50W – 3500K = 6297LM | 4000K = 5798LM | 5000K = 5822LM |
COLOR TEMPERATURE (K) | |
CRI | |
CONTROL TYPE | |
CERTIFICATION | |
MASTER CARTON QTY. |
