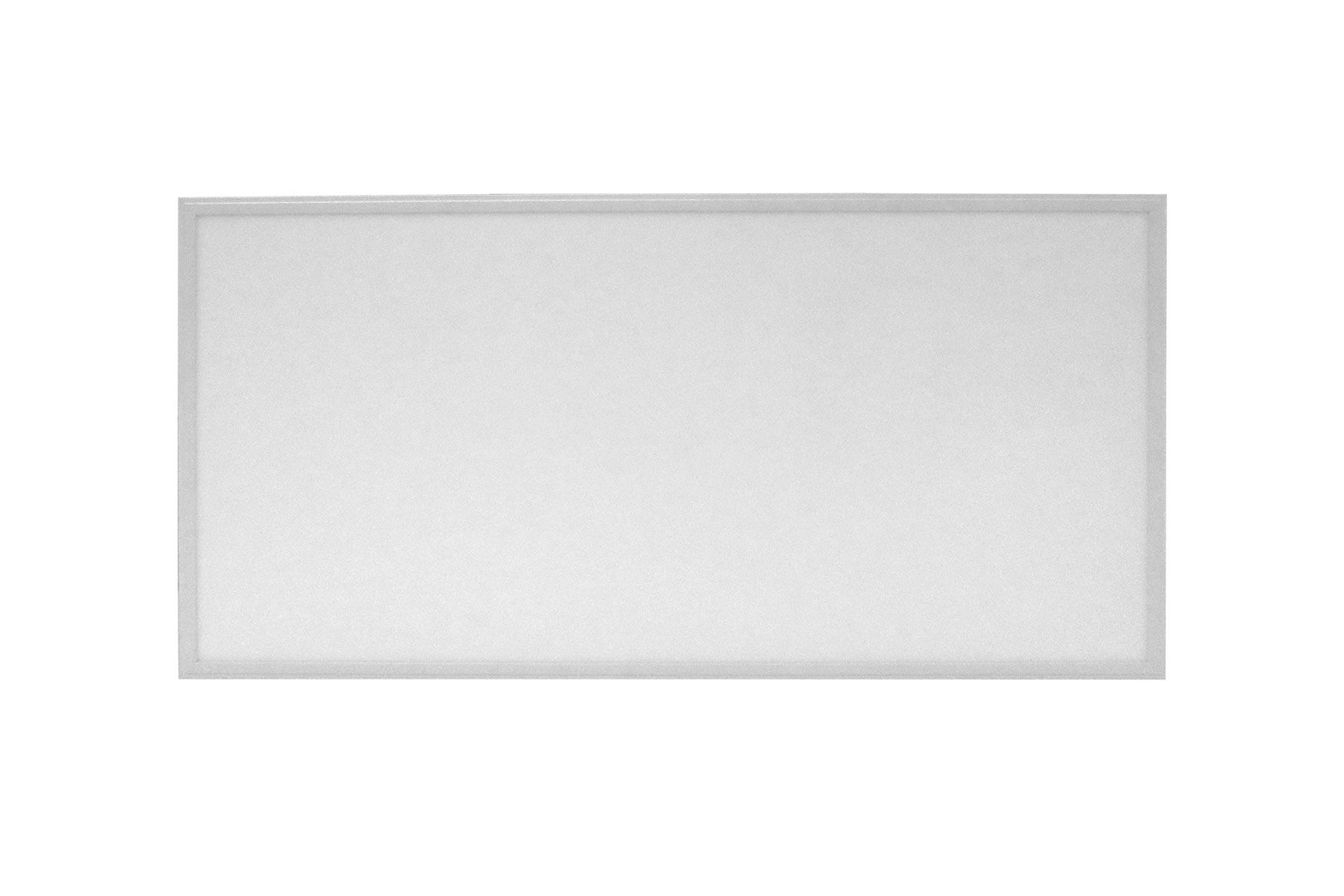

RTBP524P2-M50WC0-WH – 2 Ft. X 4 Ft. Multi Wattage and Color Selectable Integrated LED Flat Panel Light, 0 – 10V Continuous Dimming, 120 -347V, 30W – 3500K = 3814LM / 4000K = 3769LM / 5000K = 3771LM, 40W – 3500K = 5028LM / 4000K = 5025LM / 5000K = 5001LM, 50W – 3500K = 6254LM / 4000K = 6260LM / 5000K = 6256LM

 The new Etlin-Daniels RTBP524P2-M50WCO-WH LED Back Lit Flat Panel offers improved illumination, increased energy savings and greatly reduced maintenance over traditional fluorescent troffers. The PMMA lens provides for even and glare free illumination over the fixture’s life.

This new generation is available in 120-347V, and also offers Multi-Wattage and 3CCT flexibility for the utmost in convenience. And this new generation is 125lm/w – DLC5.1 Premium, qualifying for the best utility rebates. There are 4 mounting options available – recessed in t-bar, recessed drywall, surface and suspended. For further energy savings, take advantage of the 0-10V Continuous Dimming.

The new Etlin-Daniels RTBP524P2-M Series is the perfect compliment for any office, educational, healthcare, commercial or industrial applications, whether they are employed to retrofit or upgrade an existing site, or installed in a new build.

• Indoor LED Light Source
• Light weight, durable aluminum and polycarbonate housing
• PMMA surface illumination for glare free uniformity
• Flicker free performance
• 4 mounting options – recessed t-bar, recessed drywall, surface and suspended
• 120-347V
• 125lm/w
• Multi-Wattage – 30W / 40W / 50W
• 3CCT – 3500K / 4000K / 5000K
• Damp Location rated
• Earthquake clips for secure recessed applications
• 0-10V Continuous Dimming
• 5 year warranty
• L70 – 50,000 hours
• DLC5.1 Premium

SPEC SHEET

INSTRUCTION MANUAL



30W IES FILES

3500K

4000K

5000K

40W IES FILES

3500K

4000K

5000K

50W IES FILES

3500K

4000K

5000K
