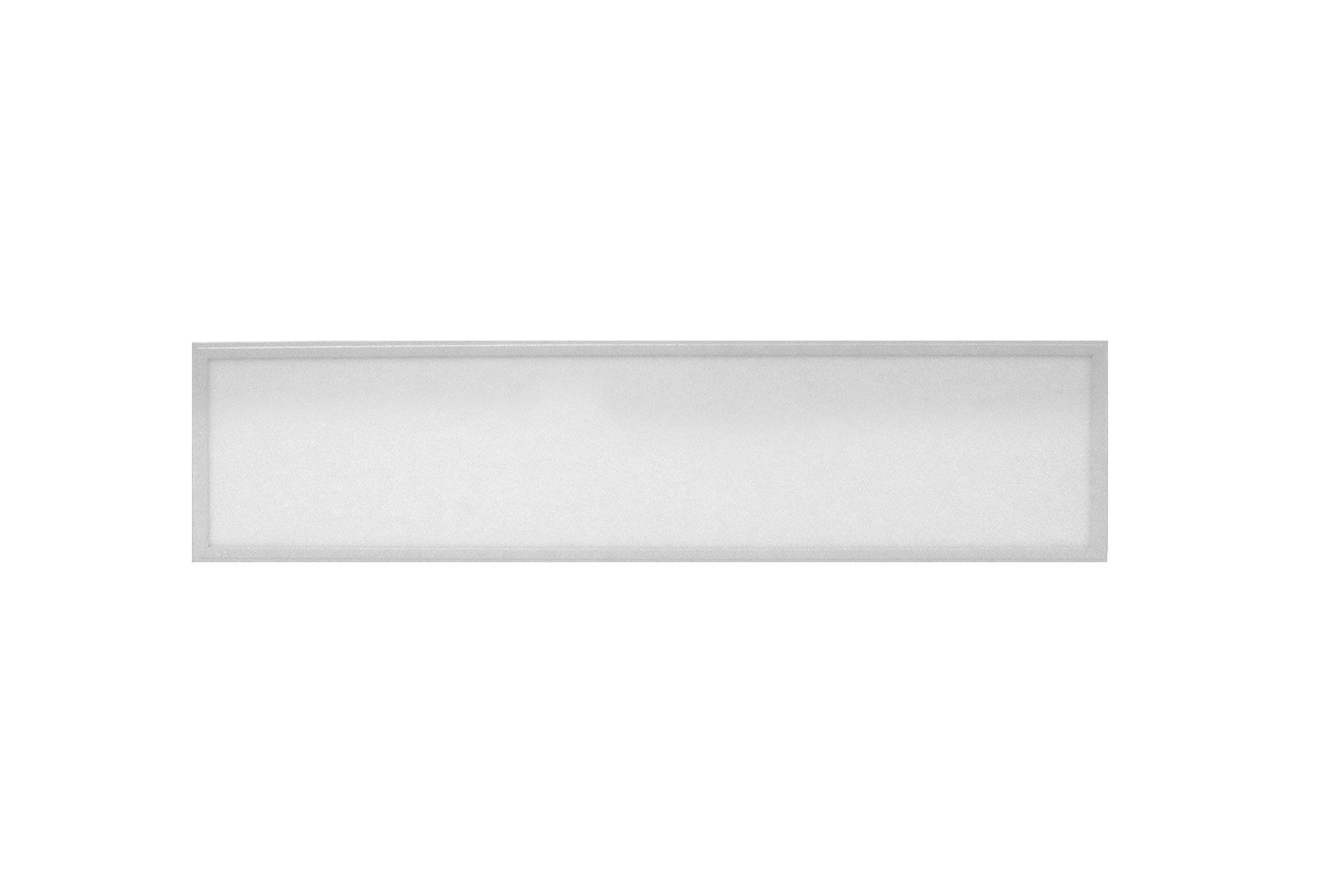

RTBP514P2-M40WC0-WH – 1 Ft. X 4 Ft. Multi Wattage and Color Selectable Integrated LED Flat Panel Light, 0 – 10V Continuous Dimming, 120 -347V, 25W – 3500K = 3149LM / 4000K = 3160LM / 5000K = 3157LM, 30W – 3500K = 3758LM / 4000K = 3753LM / 5000K = 3796LM, 40W – 3500K = 5006LM / 4000K = 5002LM / 5000K = 5015LM

 The new Etlin-Daniels generation of RTBP514P2-M40WCO-WH 1 x 4 LED Back Lit Flat Panel offers excellent, flicker-free lighting, increased energy savings and greatly reduced maintenance over traditional fluorescent troffers. The PMMA lens provides for even and glare-free illumination over the fixture’s life.

This new P2 generation is available in 120-347V and also features multi-wattage and 3CCT switching for the utmost convenience, reducing inventory stress while also eliminating contractor installation issues with either the wrong colour or wattage. This new P2 generation is 125lm/w efficacy – DLC5.1 Premium for the best available utility rebate status.

There are 4 mounting options available – recessed in t-bar, recessed drywall, surface mount or suspended. For further energy savings, take advantage of the available 0-10V Continuous Dimming.

The new Etlin-Daniels RTBP5P2-M Series is the perfect compliment for any office, educational, healthcare, commercial or industrial applications, whether they are employed to retrofit or upgrade an existing site, or installed in a new build.

  Indoor LED Light Source
  Light weight, durable aluminum and polycarbonate housing.
  PMMA surface illumination for glare free uniformity.
  Flicker free performance.
  4 mounting options – recessed t-bar, recessed drywall, surface and suspended
  120-347V
  125lm/w
  Multi-wattage – 25W / 30W / 40W
  3CCT – 3500K / 4000K / 5000K
  Damp Location rated
  Earthquake clips for secure recessed applications
  0-10V Continuous Dimming
  5 year warranty
  L70 – 50,000 hours.
  DLC5.1 Premium

SPEC SHEET

INSTRUCTION MANUAL



25W IES FILES

3500K

4000K

5000K

30W IES FILES

3500K

4000K

5000K

40W IES FILES

3500K

4000K

5000K
