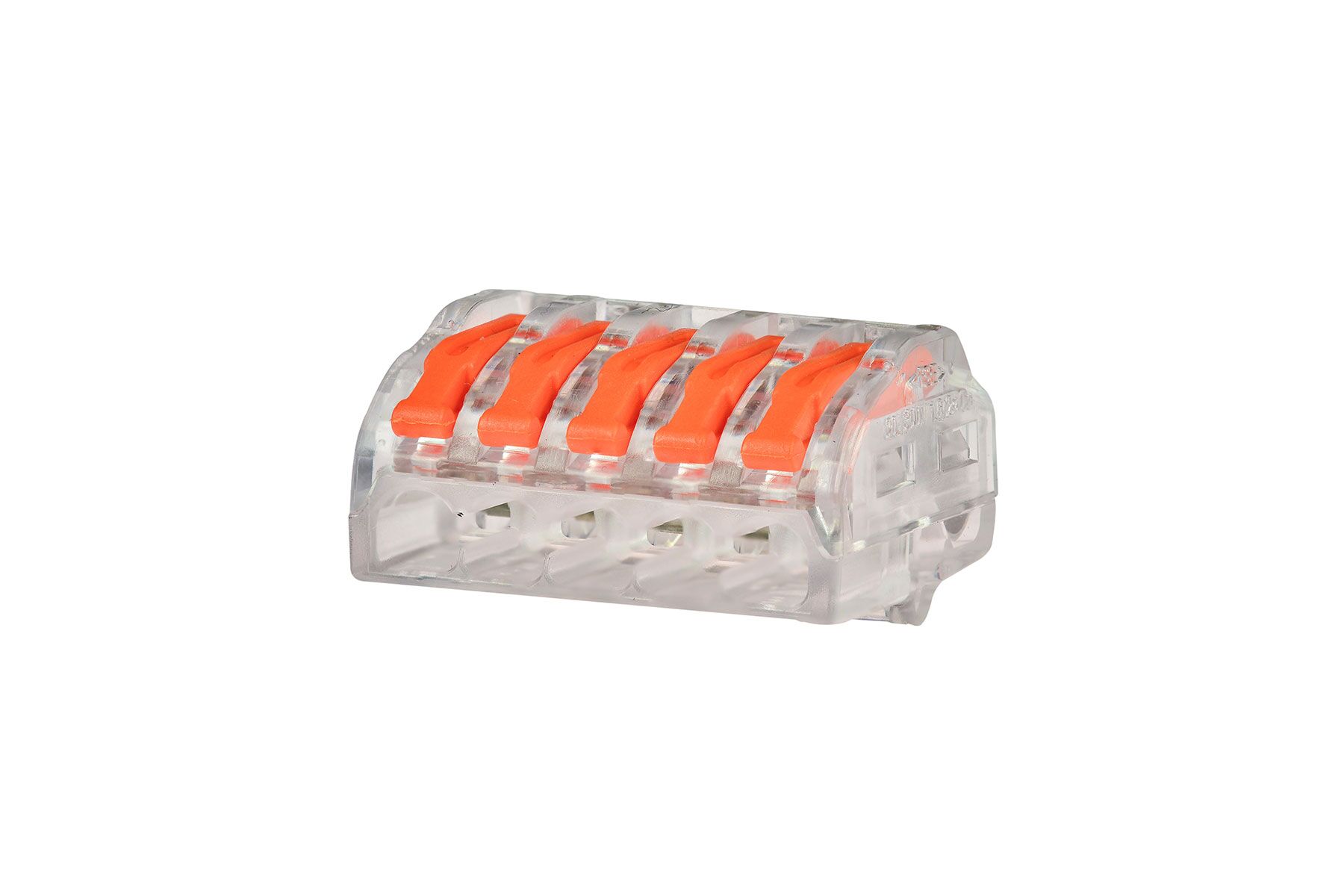

PC625 – 5 Pole Lever Type Releasable Push in Wire Connector – 12 – 28 AWG Wire Range – 600V Max Voltage – Orange Transparent cULus

Simple to use! Pull the lever up, insert your wire and push the lever down again! It’s that easy! Saves Installation time and we know that time is money! Good for wire range of 28AWG to 14AWG. Works on solid or stranded conductors. You can combine different wire gauges in the same connector.

Transparent so you can see if the wires are properly inserted. Available in 2 and 3 positions. Wires can easily be removed by simply lifting the lever and releasing the wire. Great for many applications such as lighting and control wiring. No tools are required.

  Accept conductors 0,2 – 4,0mm
  Re-usable and for use with rigid/solid and flexible/stranded conductors.
  Polycarbonate (PC), Flame-retardant shell to UL 94-V0 housing.   Polyamide (PA) levers
  Transparent body makes it easy to see wire location.
  Rated to 600V max. for building wiring and 1000V max. in lighting fixtures and signs.

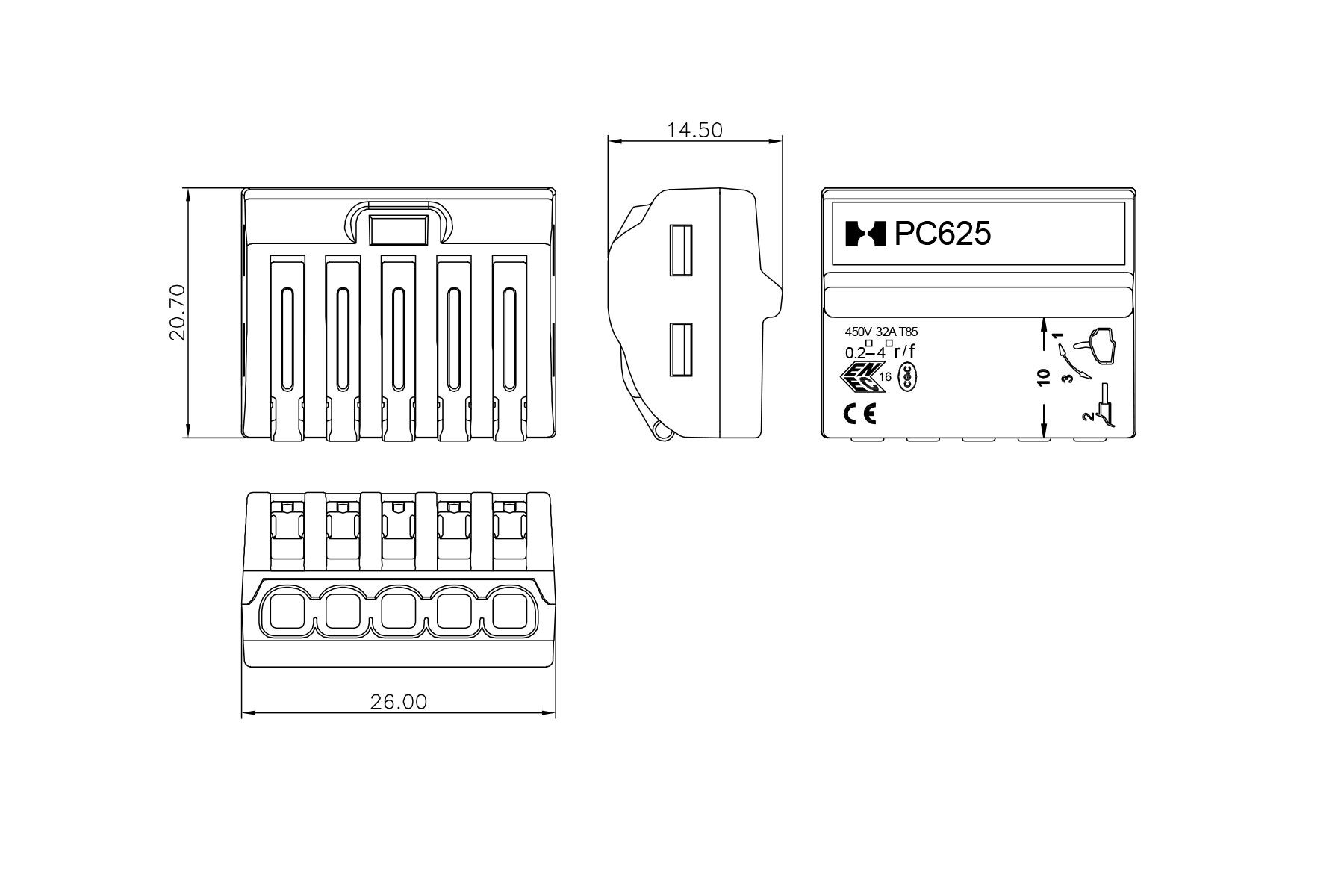

TECHNICAL INFORMATION

TYPE

Lever Type Releasable Wire Connector

POLE

5

CURRENT

32A

VOLTAGE (V)

STRIPPING LENGTH

10mm

WIRE RANGE

#28-#14 AWG SOL / STR, #12 AWG SOL CU (UL)

CERTIFICATION

SPEC SHEET
