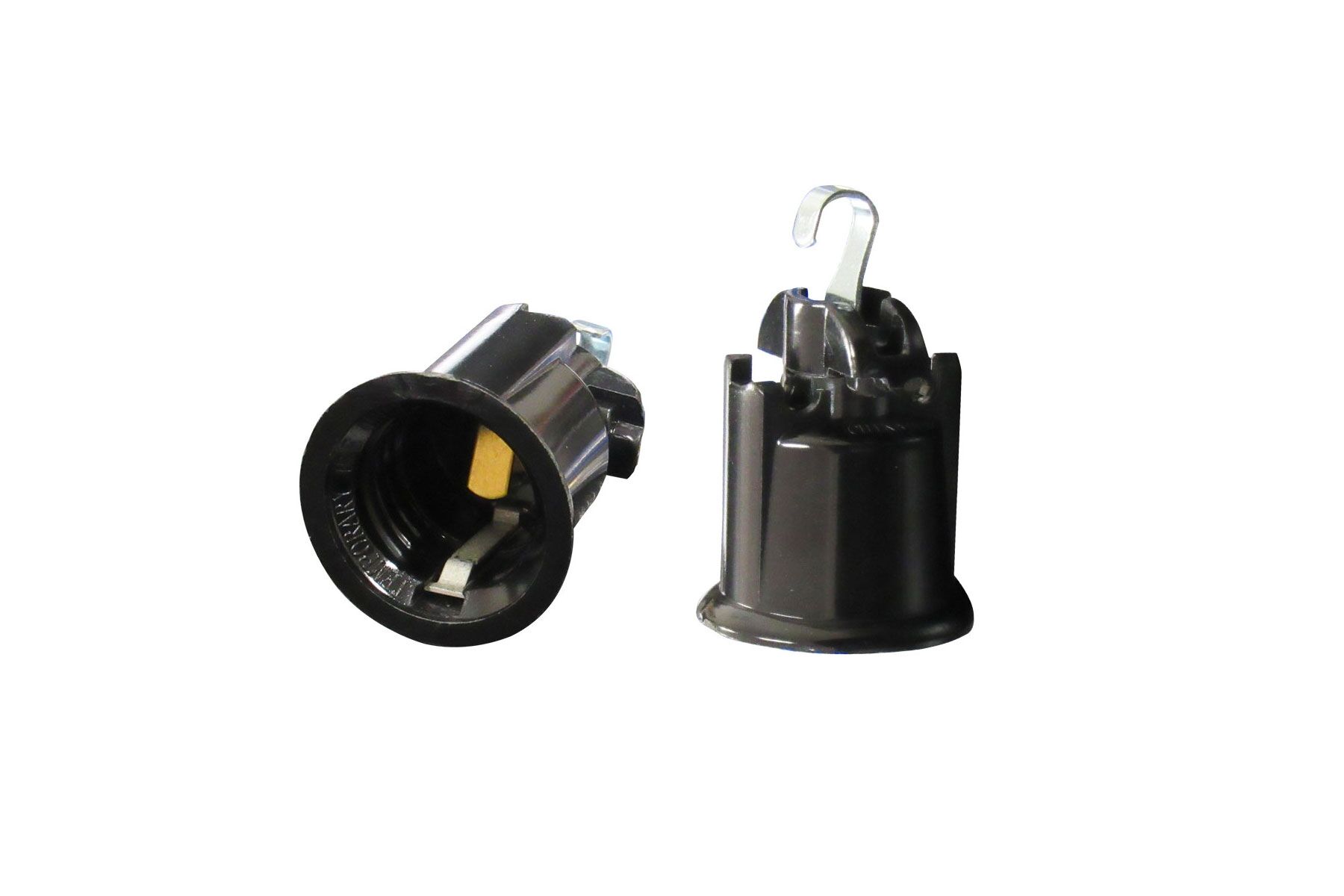

IS514-SS – Medium Base Weatherproof Phenolic Pin Type Incandescent Light Socket – E26 Lamp Base – 1″ Base Diameter – 2.52 Inches Overall Height – Pin Terminals – 660 Watt 250 Volts Max – Screw Mount – Black Phenolic – cULus Listed
– Two piece heavy duty phenolic body
– Accepts no. 14 AWG or no. 12 AWG stranded insulated wire
– Ideal for stringing multiple lamps on the same conductors
– As the cap is screwed on, the pin terminals pierce the insulation of the wire to provide a safe positive connection without stripping, bending or tightening screws.
– With plated steel wire hook
– Has an integral molded screw shell with skeleton type contacts
– Rated660W at 250V
– cULus listed
TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |

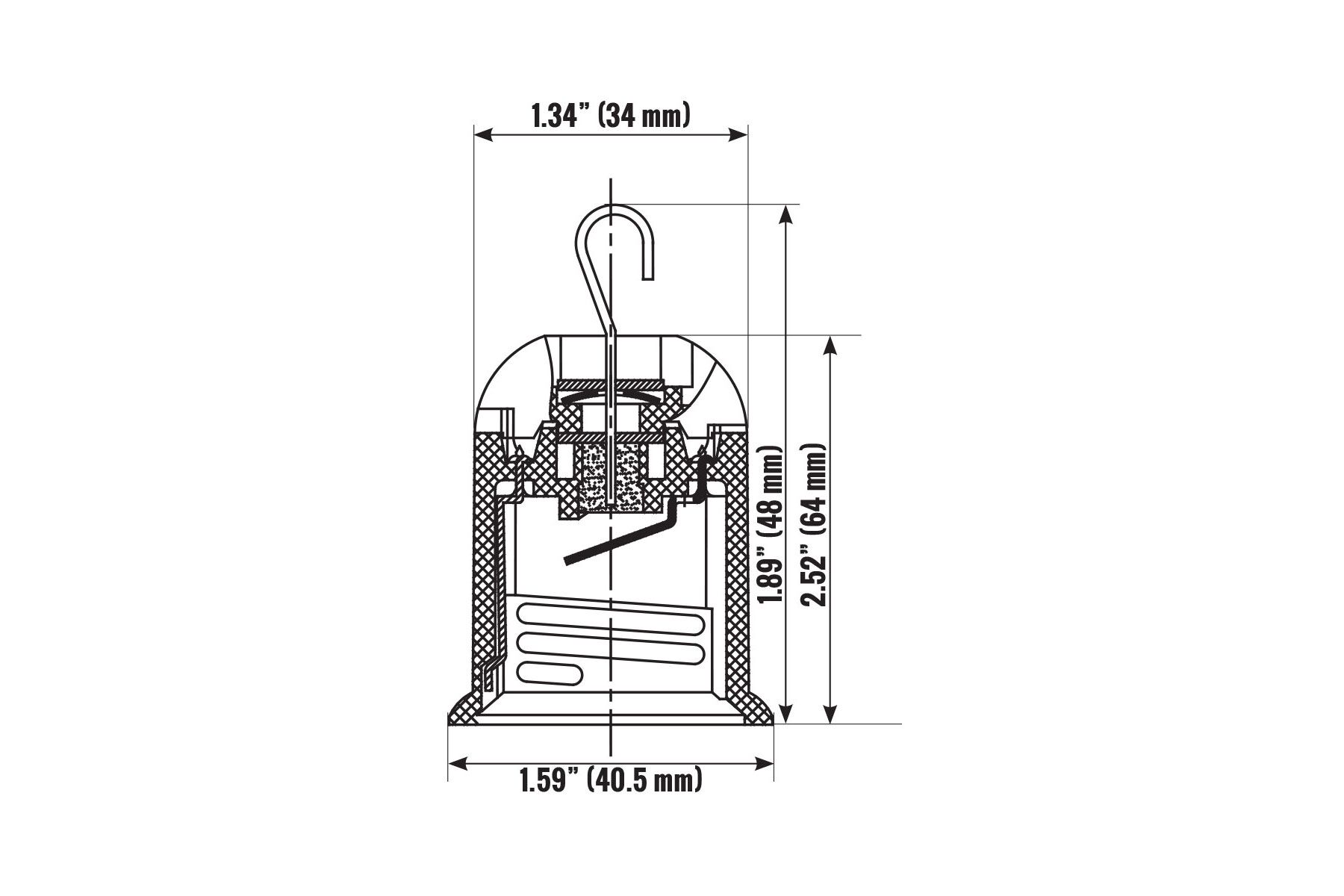

| OVERALL HEIGHT | 2.52" |
| BASE DIAMETER | 1" |
| TERMINALS | |
| MOUNTING | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| CERTIFICATION |
