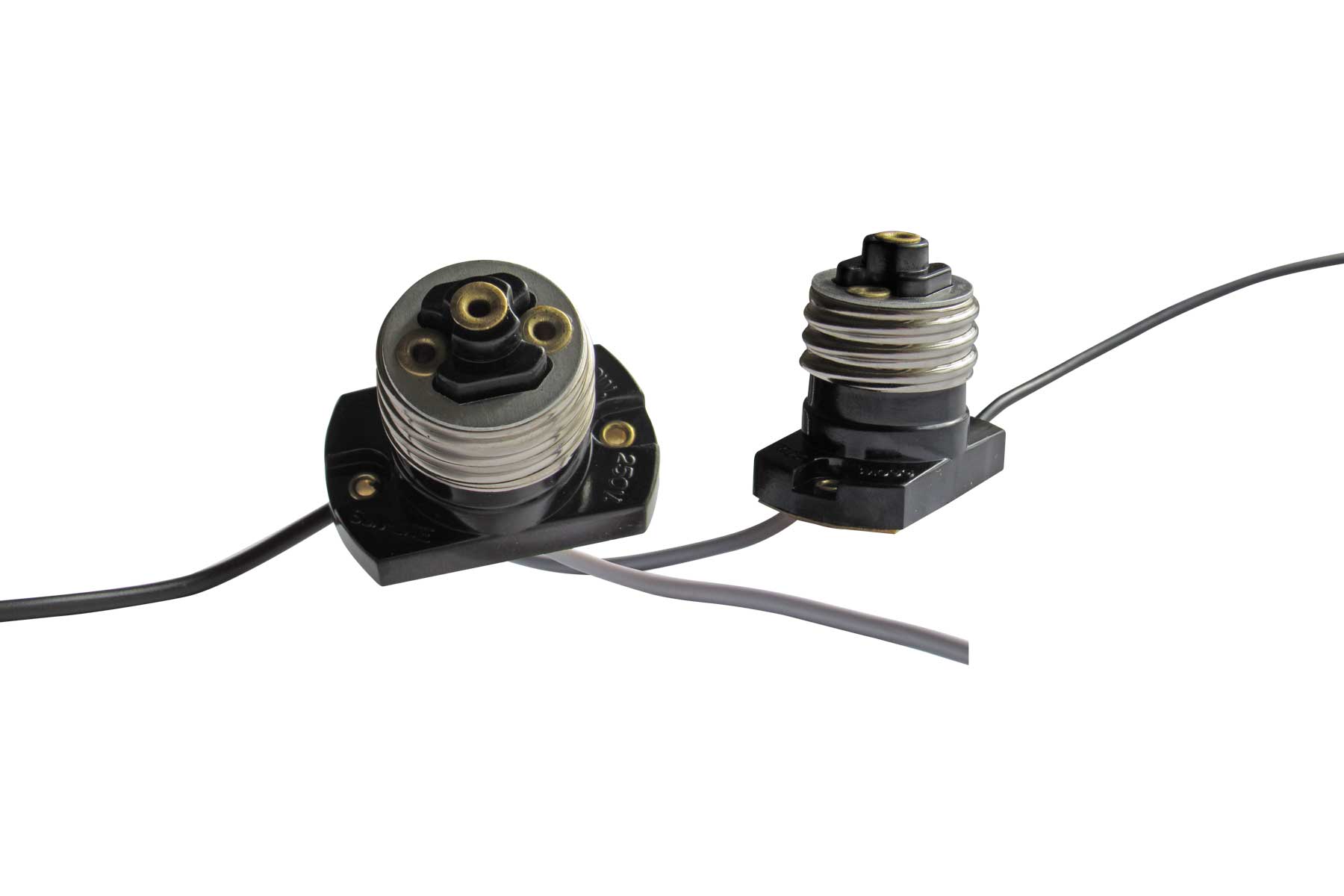

IS270-1-4.25″TEW – Medium Base Phenolic Incandescent Light Socket Adapter with Mounting Ears – E26 Lamp Base – 1″ Base Diameter – 1.5 Inch Overall Height – 4.25″ TEW Solid Wire Leads Terminal – 660 Watt 250 Volts Max – Screw Mount – Black Phenolic – cULus Listed
– One piece phenolic body with standard male screw shell with reinforcing ring
– Has two ears on 19⁄32” centres for mounting
– Standard screw shell is aluminum. Brass or nickel-plated, brass available upon request
– Adapter is available with or without leads
– Standard wire leads are 18 AWG, TEW 105°C, 6” long, stripped 1⁄2”
– Can be supplied harnessed to most sockets on request
– 660W, 250V
– cULus Listed

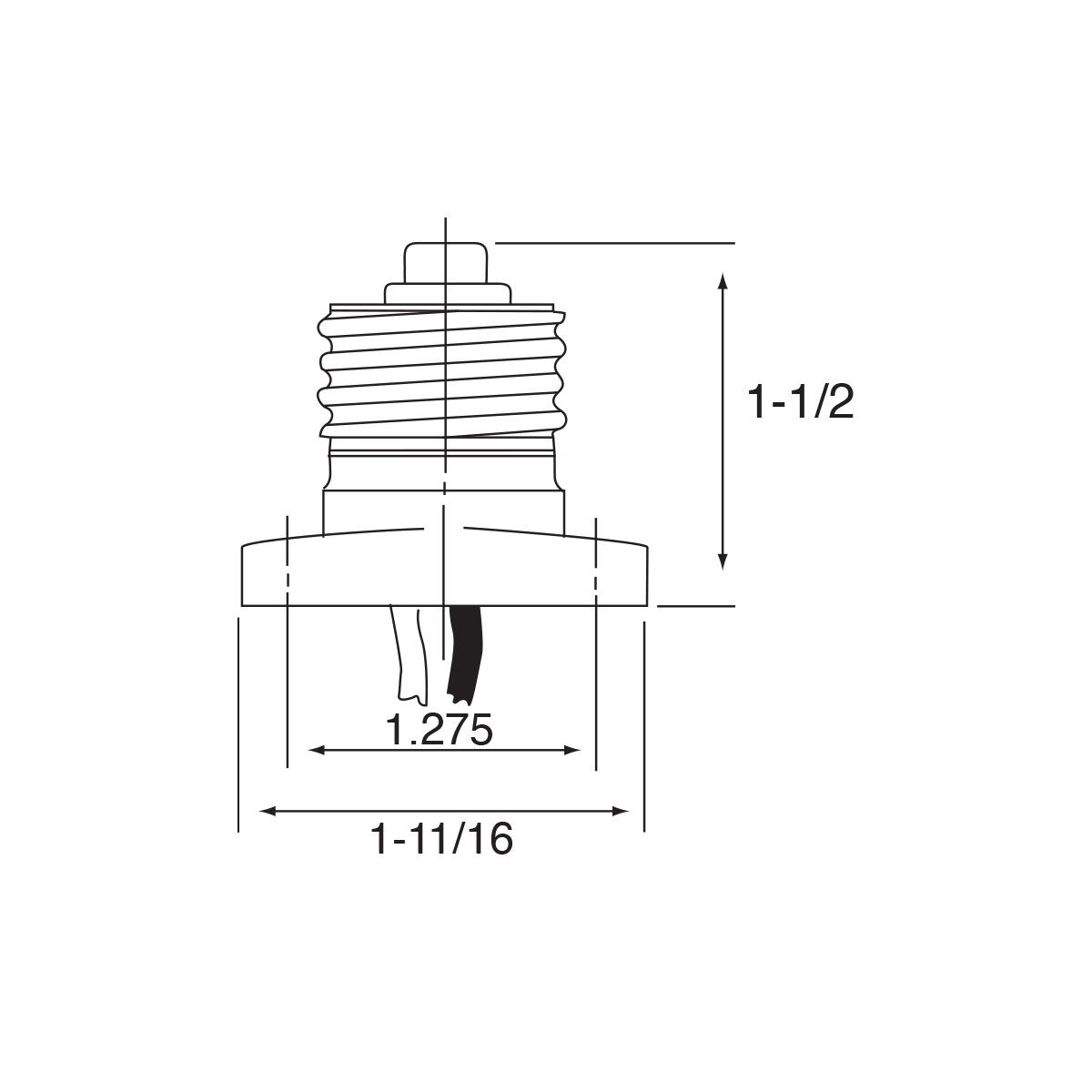

TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |
| OVERALL HEIGHT | 1.375" |
| BASE DIAMETER | 1" |
| TERMINALS | |
| MOUNTING | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| CERTIFICATION |
