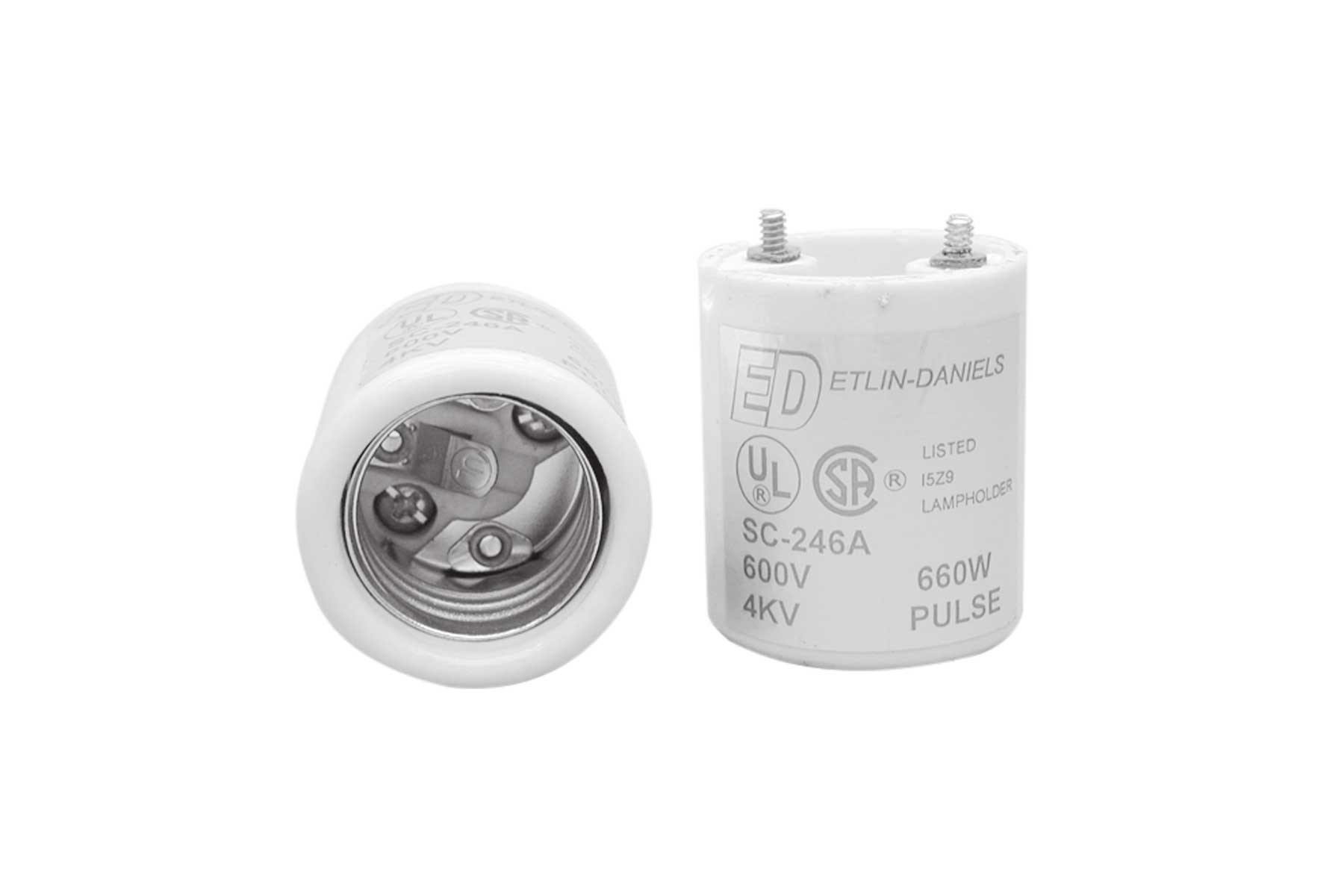

IS267S-1-SCTERM – 4KV Pulse Rated Medium Base Porcelain Incandescent Light Socket with 6/32″ Mounting Screws – E26 Lamp Base – 1″ Base Diameter – 1.66 Inch Overall Height – Screw Terminals – 660 Watt 600 Volts Max – Screw Mount – White Porcelain – cULus Listed
– White glazed porcelain body
– Copper alloy nickel-plated screw shell
– Copper alloy nickel-plated centre contact
– Standard leads are 18 AWG, SEW-2 (SF2) 600V 200°C, 12” long, or specify desired wire and length
– Supplied with insulating fibre
– Supplied with two #6-32 mounting screws on 27⁄32” centres
– Die cast caps are available
– 660W, 600V
– UL Listed
TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |
| OVERALL HEIGHT | 1.66" |
| BASE DIAMETER | 1" |
| TERMINALS | |
| MOUNTING | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| CERTIFICATION |
