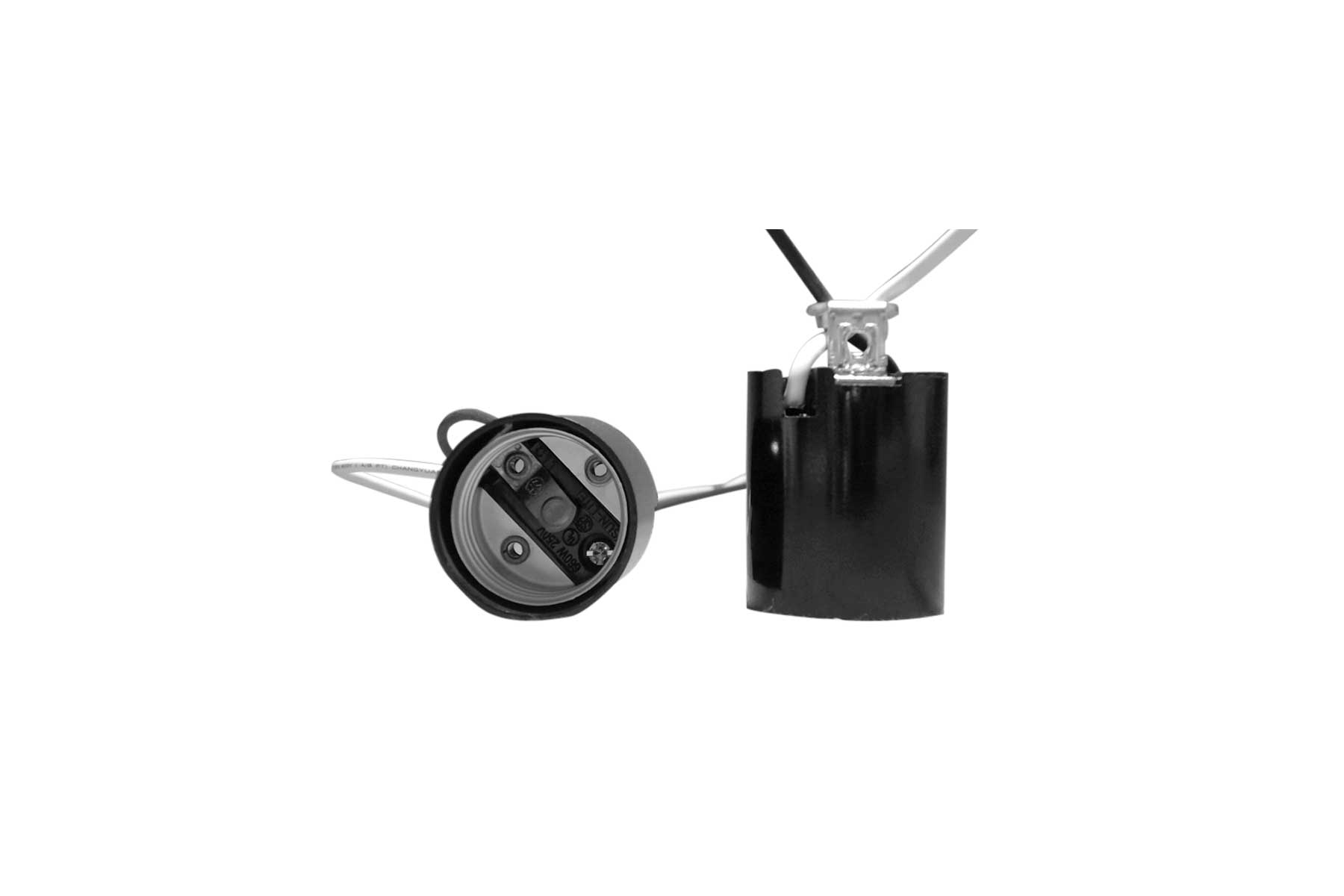

IS201-37N-CAP – Medium Base Phenolic Keyless Incandescent Light Socket – E26 Lamp Base – 1″ Base Diameter – 660 Watt 250 Volts Max – 37N Hickey with 1/2″ Nipple- Black Phenolic – cULus Listed
– High heat phenolic body
– Aluminum screw shell is standard, brass or nickel-plated copper available to order
– Standard leads are 18 AWG, EXL 125°C, 12” long, stripped 1⁄2” or specify desired length and type of wire
– Also available less leads with eyelets for soldering
– The above series are designed to accommodate a wide variety of hickeys or brackets, which can be ordered from the following pages
– Insulating fibre cover or cap can be attached upon request
– Also available with ground wire
– Many configurations are available, as well as many mounting options
– Can be harnessed together for many applications, such as bathroom strips or showcase lighting, etc.
– White Urea lampholders are available to order
– 660W,250V
– cULus Listed
TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |
| OVERALL HEIGHT | 1.35" |
| BASE DIAMETER | 1" |
| TERMINALS | |
| BRACKET HEIGHT | 1/2" |
| MOUNTING | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| CERTIFICATION |
