IS101-6SPT1 – Candelabra Light Socket with Shoulder – E12 Lamp Base – 1/2″ Base Diameter – 1.219 Inch Overall Height – 6 Inch SPT-1 105ºC 18 Gauge Leads – 75 Watt 125 Volts Max – Threaded Body Mounting – Black Phenolic – cULus Listed
– Outer threaded phenolic body with special locking features to prevent body halves from misaligning
– Molded skeleton type screw shell
– Specify lead type, length and stripping
– 75W, 125V
– Sockets can be supplied with various hickeys and brackets
– Can be supplied with phenolic rings in Black, Brown, Brass or Silver Plated, or Die Cast Brass or Silver
– cULus Listed.

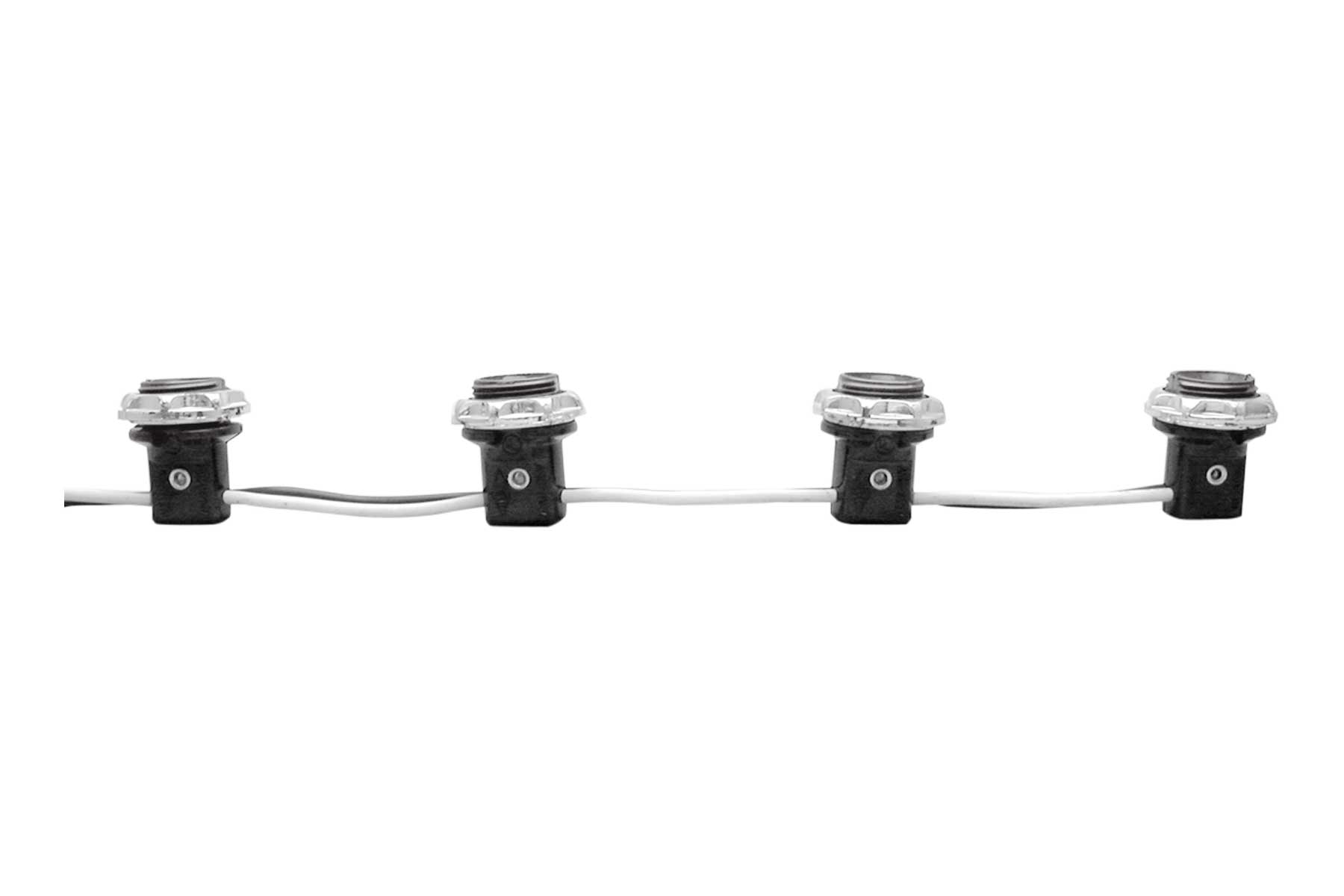

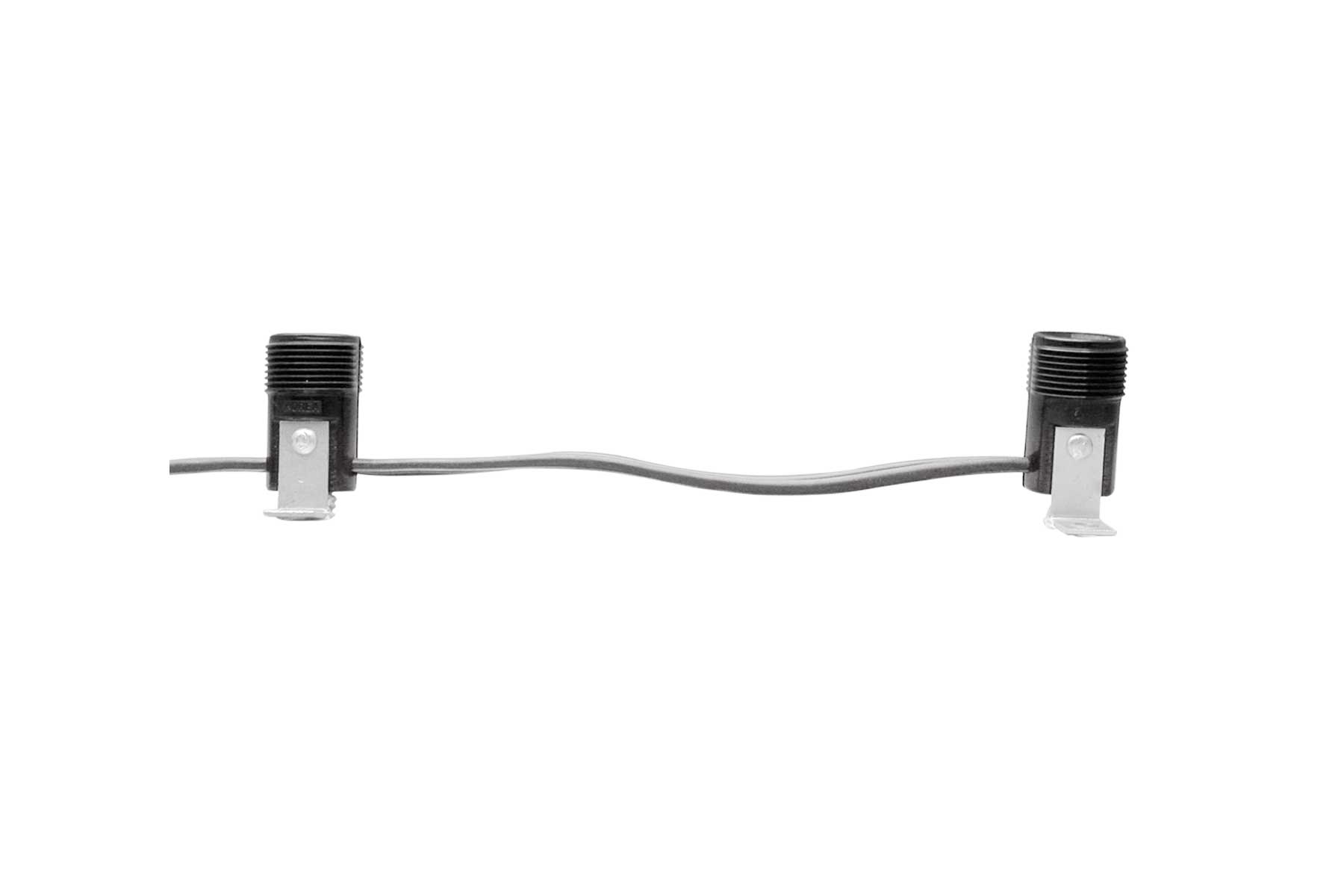

To order harness sets of two or more sockets:
– Specify the style and number of socket pieces
– Centre-to-centre distance between sockets (2” minimum) and free end length
– Wire type, colour and strip length
– Style and colour of finishing nut
TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |
| OVERALL HEIGHT | 1.219" |
| BASE DIAMETER | 1/2" |
| TERMINALS | |
| MOUNTING | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| CERTIFICATION |
