TECHNICAL INFORMATION
| MIN. WIRE RANGE | 2 Wires (#18 AWG) |
|---|---|
| MAX. WIRE RANGE | 1 Wire (#16 AWG) + 1 Wire (#14 AWG) |
| VOLTAGE (V) | |
| COLOR. |

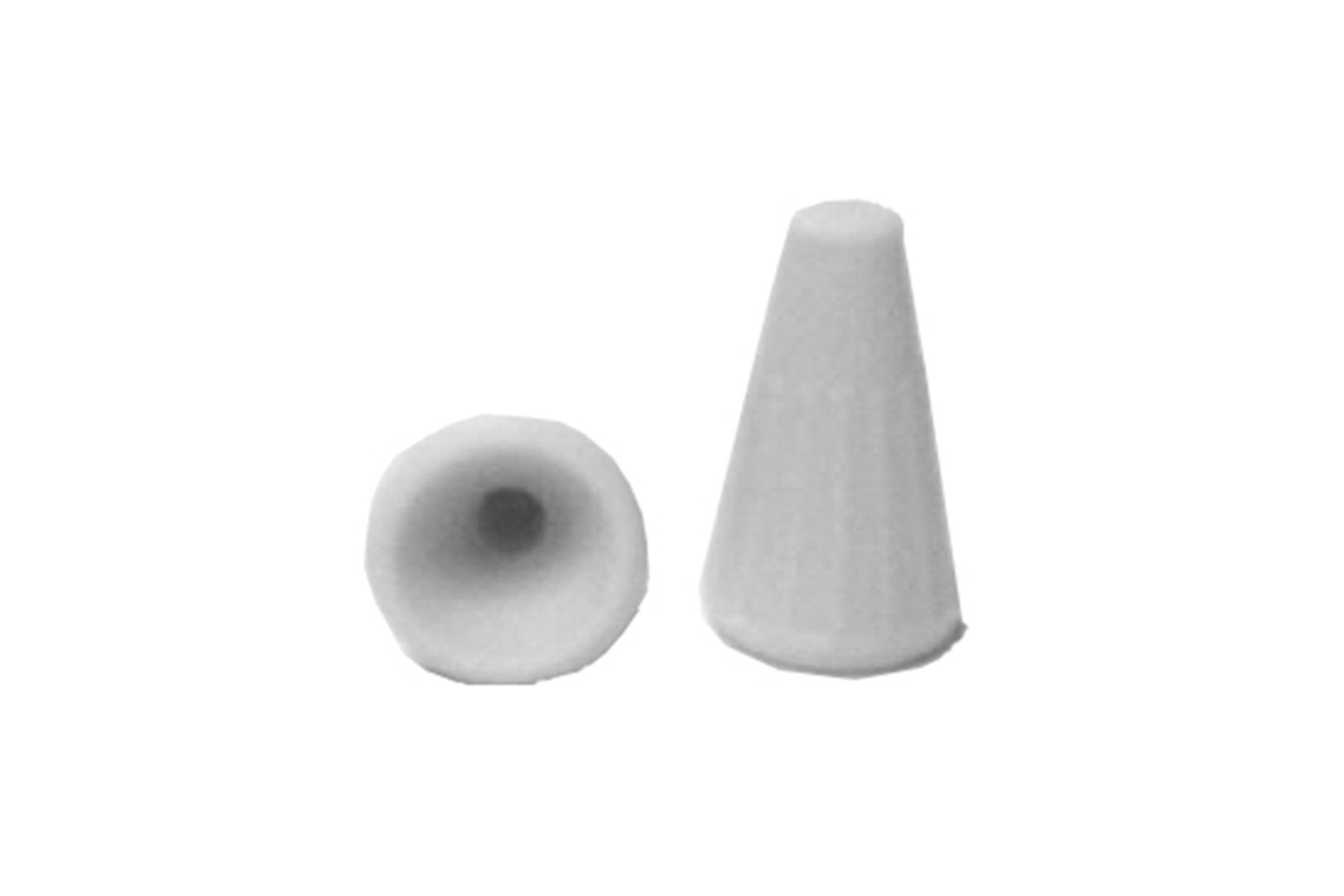

HI-5 – Pressure Type Terminal Wire Nut Connectors – Can Combine Solid & Stranded Wire – 2 – 4 Wires (16 – 18AWG) – 300 Volts Max – UL
HI-5 – Pressure Type Terminal Wire Nut Connectors – Can Combine Solid & Stranded Wire – 2 – 4 Wires (16 – 18AWG) – 300 Volts Max – UL
Can fit the following wire combinations :
2, 3 or 4 (#18 AWG)
2 or 6 (#16 AWG)
1 or 2 (#18 AWG) with 1 (#16 AWG)
1 or 2 (#18 AWG) with 1 or 2 (#16 AWG)
1 (#18 AWG) with 1 (#14 AWG)
2 (#18 AWG) with 1 (#14 AWG)
1 (#16 AWG) with 1 (#14 AWG)
