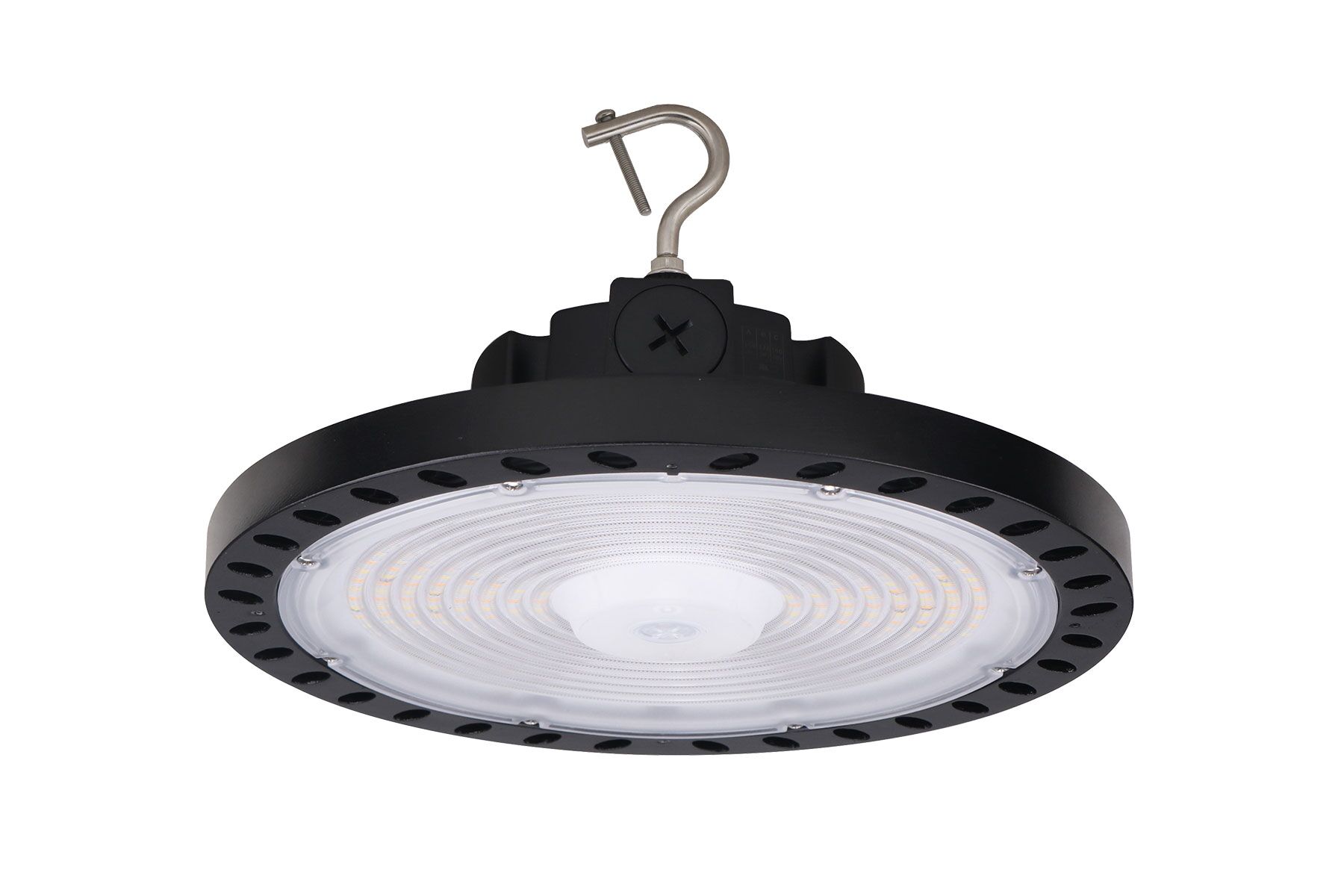

HBRA9-M240WC0MB-C9-10B - Multi Wattage and Color Selectable 13 Inch. Round High Bay LED Lights, 0 - 10V Continuous Dimming, Integrated LED, 180W - 3500K = 27000LM / 4000K = 29700LM / 5000K = 27900LM, 200W - 3500K = 29400LM / 4000K = 32400LM / 5000K = 30400LM, 240W - 3500K = 34800LM / 4000K = 38400LM / 5000K = 36000LM, 120 - 347V, CAN ICES-005 (B) / NMB-005 (B)

HBRA9-M240WC0MB-C9-10B – Multi Wattage and Color Selectable 13 Inch. Round High Bay LED Lights, 0 – 10V Continuous Dimming, Integrated LED, 180W – 3500K = 27000LM / 4000K = 29700LM / 5000K = 27900LM, 200W – 3500K = 29400LM / 4000K = 32400LM / 5000K = 30400LM, 240W – 3500K = 34800LM / 4000K = 38400LM / 5000K = 36000LM, 120 – 347V, CAN ICES-005 (B) / NMB-005 (B)

 Etlin-Daniels introduces their latest generation of LED UFO (Round) Highbay Fixtures – the HBRA9 series. Constructed of durable die-cast aluminum, with a compact design, each fixture offers the latest in high efficacy, multiple wattage and color temperature options, flexible mounting options, along with precision, glare-free illumination.

With its high impact polycarbonate lens, the standard 90˚ beam pattern provides a UGR <28 rating, achieving DLC 5.1 Premium status, for maximum rebate availability. At 120-347V, Microwave Sensor base and 10’ whip pre-installed, 6kv surge protection, multi-wattage and 3CCT switching, the new HBRA9 series offers a high-performance solution reducing inventory stress and potential ordering errors.

Aluminum and prismatic reflectors and 60˚ and 110˚ lens options are available, along with wire guards. Built-in 0-10V Continuous Dimming provides for extra energy savings. The new HBRA9 series is the perfect solution where LED Highbay are being considered.

• LED Indoor Light Source
• Compact durable die-cast aluminum design
• Optional Ceiling and Pendant mounting
• 120-347V // CRI>80
• UGR<28 for DLC5.1 Premium status
• NSF2 // Nema 4X // IK08
• 10’ power cord & sensor base pre-installed
• 0-10V Continuous Dimming
• 6kv Surge Protection // IP65 Wet Location Rated
• 3CCT – 3500K/4000K / 5000K
• Multi-Wattage – HBRA9-M240 – 240W/200W/180W
• 5 year warranty
• L70 – 50,000 hours
• DLC5.1 Premium

Categories: , , , ,

TECHNICAL INFORMATION

Wattage (W)

, ,

VOLTAGE (V)

LUMENS (LM)

, ,

COLOR TEMPERATURE (K)

, ,

CRI

CONTROL TYPE

CERTIFICATION

,

MASTER CARTON QTY.

SPEC SHEET

INSTRUCTION MANUAL



IES

180W – 3500K – IES
180W – 4000K – IES
180W – 5000K – IES

200W – 3500K – IES
200W – 4000K – IES
200W – 5000K – IES

240W – 3500K – IES
240W – 4000K – IES
240W – 5000K – IES
