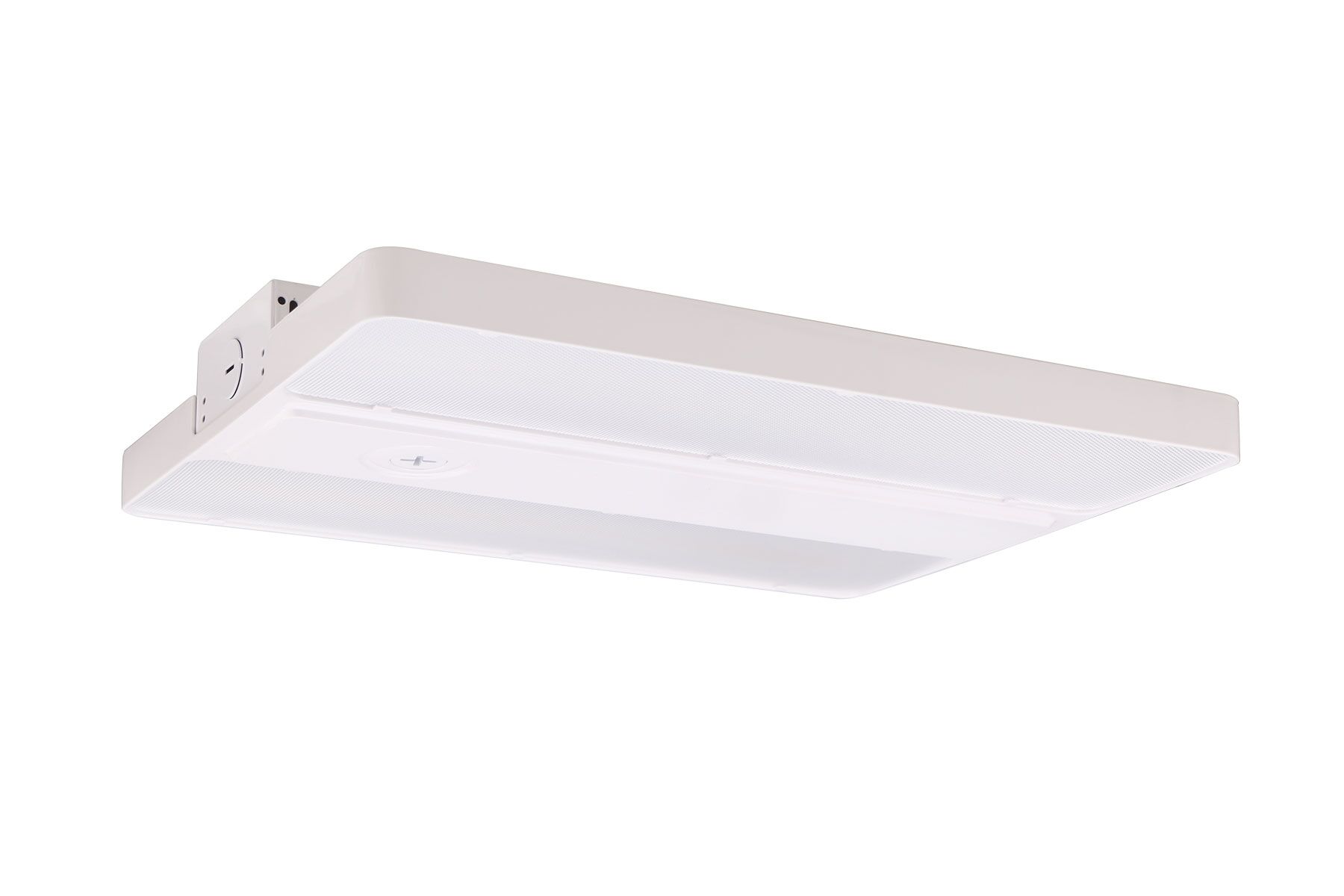

HBL612SP-M150WC0MB-WH-10MC – Multi Wattage and Color Selectable 1.2 Ft. Linear High Bay LED Lights, 0 – 10V Continuous Dimming, Integrated LED, 100W – 4000K = 14200LM / 5000K = 14600LM, 135W – 4000K = 18765LM / 5000K = 19305LM, 150W – 4000K = 20400LM / 5000K = 21000LM, 120 – 347V, CAN ICES-005 (B) / NMB-005 (B)

 Etlin-Daniels is pleased to introduce their latest generation of LED Linear Highbay Fixtures – the HBL6SP Series. Constructed of durable die-cast aluminum, with a new compact design, each fixture offers the latest in high efficacy, multiple wattage and color temperature options, flexible mounting options, along with precision, glare free illumination.

The new compact 1.2’ design in the HBL612SP-M150WCOMB-WH-10MC and 1.5’ design in the HBL615SP-M220WCOMB-WH-10MC meet the UGR requirements through their Shatterproof polycarbonate lens to achieve DLC5.1 Premium status. And all fixtures come pre-equipped with Multi-Wattage and 2CCT switching, and are 120-347V.

Also equipped with a 10’ whip, 6kv surge protection and the Microwave Sensor base pre-installed to reduce contractor labor, and v-hooks and chain in packaging, the new HBL6SP series will reduce inventory stress while eliminating potential order errors. With multiple mounting options – suspended, surface mount, pendant mount – and with wire guards available, and available 0-10V Continuous Dimming, the new HBL6SP series is the perfect solution where LED Highbays are required.



• LED Indoor Light Source
• Ultra-Compact die-cast aluminum design
• V-Hooks and Chain in packaging
• Pendant Mount and Ceiling Mount available
• 120-347V // CRI>80
• UGR<28 for DLC5.1 Premium status
• 10’ power cord & Microwave Sensor base pre-installed
• 0-10V Continuous Dimming
• 6kv Surge Protection // Damp Location Rated
• 2CCT – 4000K / 5000K
• Multi-Wattage – HBL612SP – 150W/135W/100W
• 5 year warranty
• L70 – 50,000 hours
• DLC5.1 Premium

TECHNICAL INFORMATION

Wattage (W)

, ,

VOLTAGE (V)

LUMENS (LM)

, ,

COLOR TEMPERATURE (K)

,

CRI

CONTROL TYPE

CERTIFICATION

,

MASTER CARTON QTY.

SPEC SHEET

INSTRUCTION MANUAL



100W IES FILE

60W 3500K IES File

100W 4000K

60W 4000K IES File

100W 5000K

135W IES FILE

80W 3500K IES File

135W 4000K

80W 4000K IES File

135W 5000K

150W IES FILE

110W 3500K IES File

150W 4000K

110W 4000K IES File

150W 5000K
