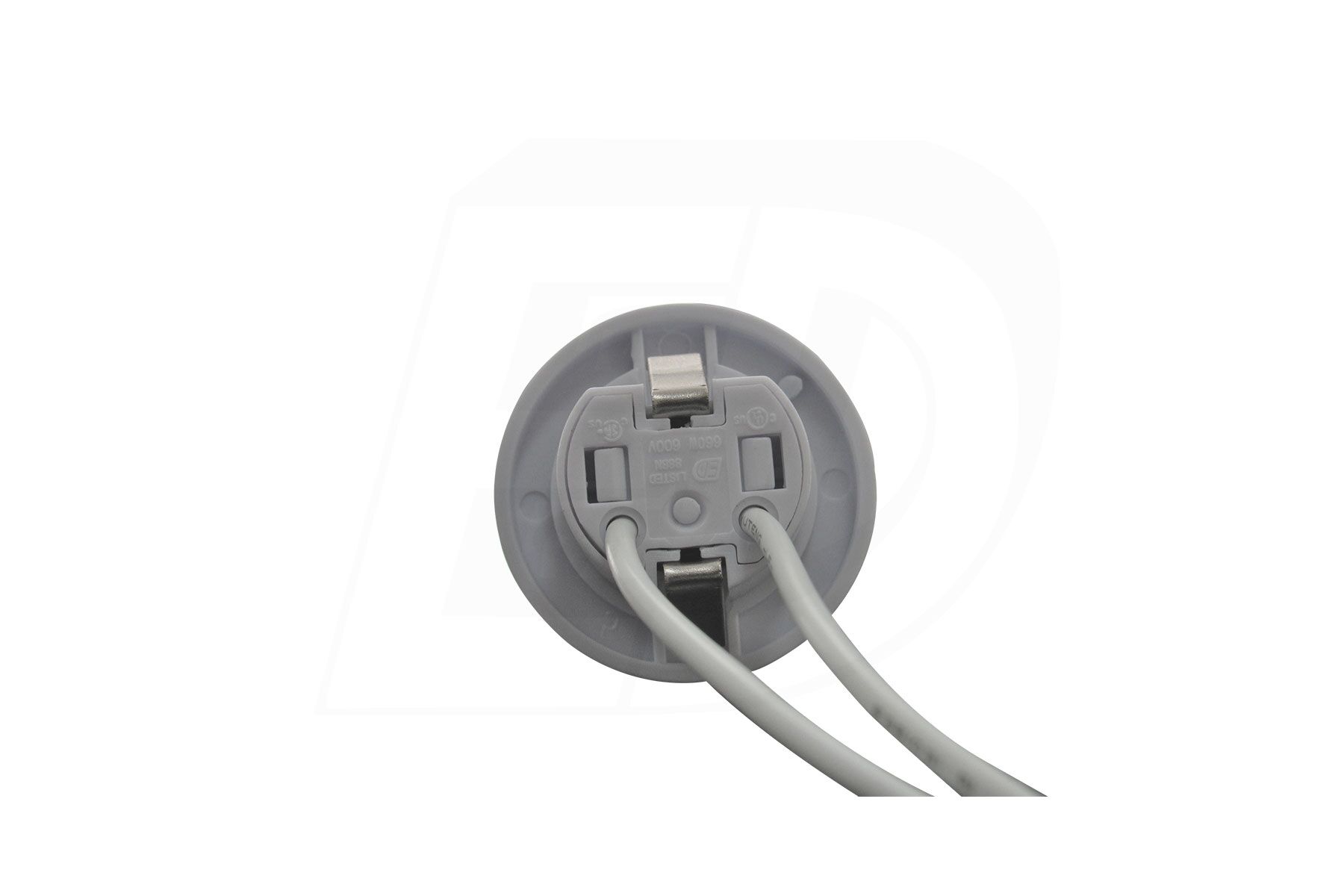

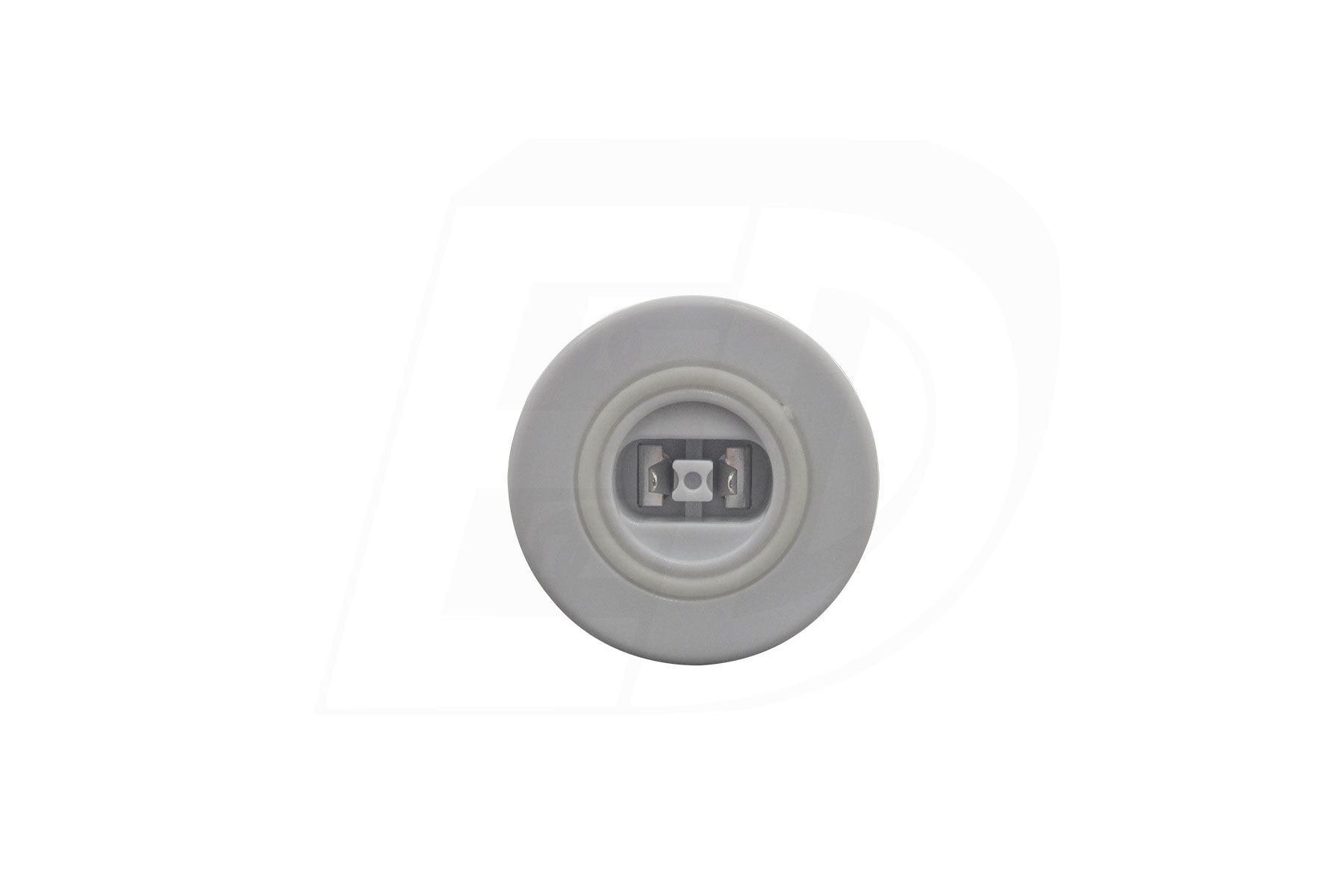

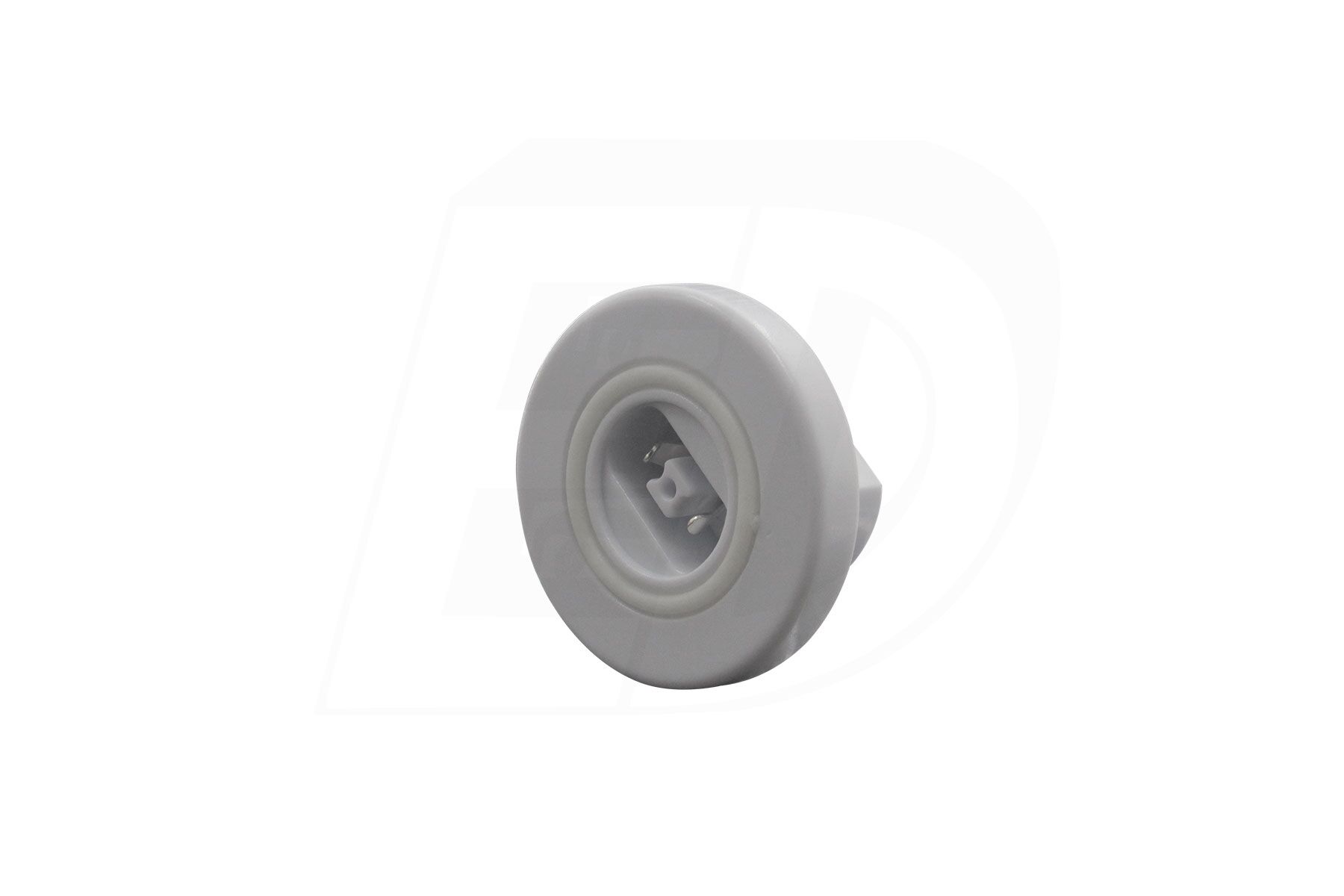

FLSA-12PG-9L – T6, T8, T10, T12 Lamps High Output Fluorescent Light Socket – Snap-in, Fixed End Mount – R17D Base – 660 Watt 1000 Volts Max – cULus cCSAus

  • Body made from PC material
  • Silver plated Phosphor Bronze contacts
  • Spring end of set, both are required
  • Push-in terminals for solid ballast wires direct into the lampholder, no extra connections
  • Neoprene “O” ring gasket
  • Snap in mount into panel
  • Recommended panel thickness 0312” to .0625”
  • Rated 600V 660W or 1000V 660W for non-home use
  • Certified for outdoor use in enclosed fixtures
  • cCSAus Certified / cULus Listed

TECHNICAL INFORMATION

ITEM.

LAMP TYPE

, , ,

LAMP BASE

MOUNTING

,

HEIGHT

LOCATING NIB.

SHUNTED

CONNECTION

Wattage (W)

VOLTAGE (V)

,

COLOR.

MATERIAL.

STRIP LENGTH

CERTIFICATION

,
