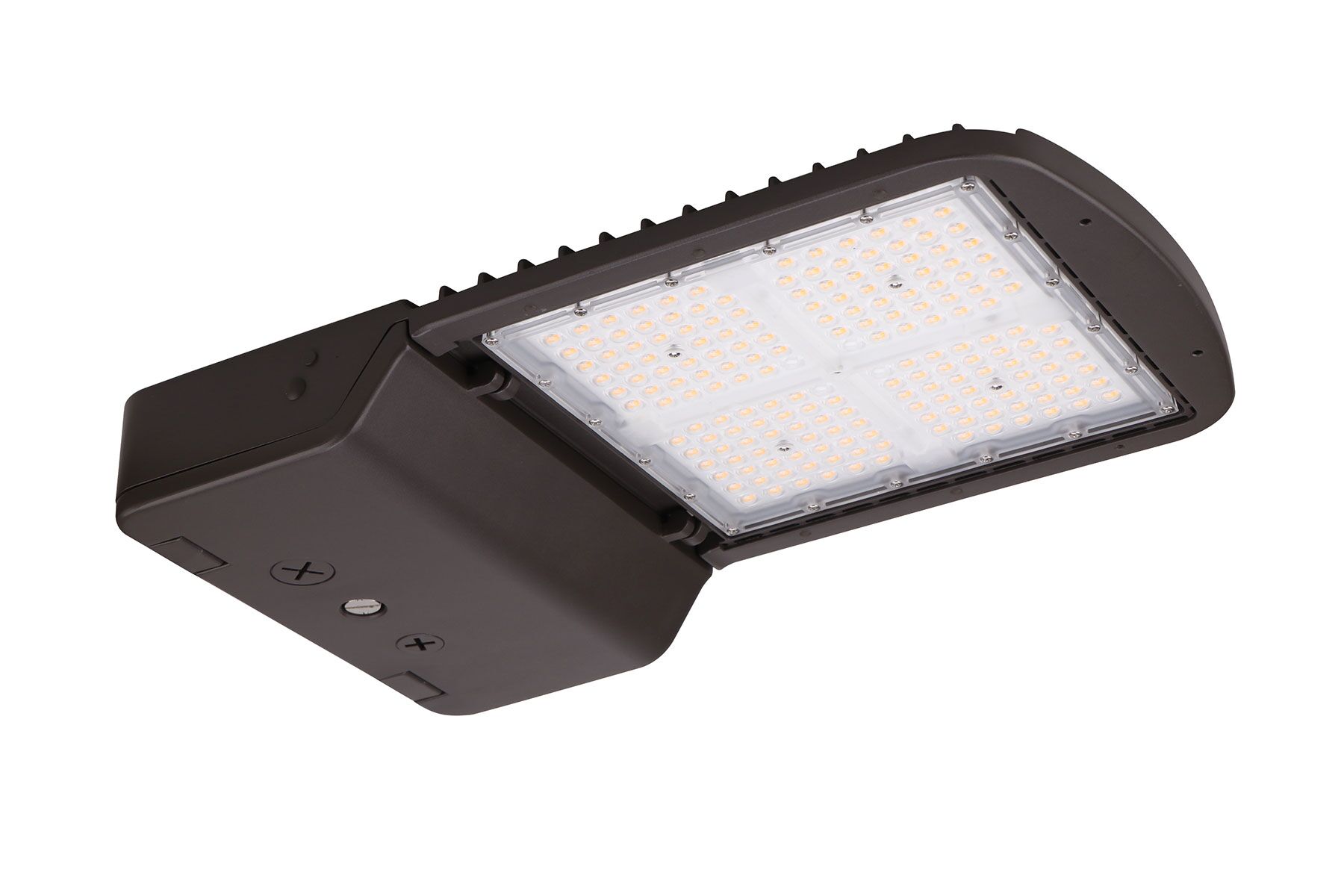

FLH5S-M150WC0-5-PBS-DB – Multi Wattage and Color Selectable Integrated LED Parking Lot Light and Flood Lights, Outdoor Light, 0 – 10V Continuous Dimming, 100W – 3000K = 14566LM / 4000K = 16121LM / 5000K = 15604LM, 120W – 3000K = 16841LM / 4000K = 18662LM / 5000K = 18144LM, 150W – 3000K = 20140LM / 4000K = 23117LM / 5000K = 229092LM, 120 – 347V, CAN ICES-005 (B) / NMB-005 (B)
Etlin-Daniels is pleased to introduce our FLH5S-M Series of High Wattage Flood / Shoebox LED fixtures. They are now equipped with many features that set the standard for flood lighting. The FLH5S-M150 has a switch that allows for choosing between 3 available wattages – 150W / 120W / 100W, and the FLH5S-M300 has 300W / 250W / 200W switching options. Both also offer 3CCT switching – 3000K, 4000K and 5000K, and come pre-equipped with 10kv Surge Protection, a 3-meter whip, a Photocell Base pre-installed with a Shorting Cap, and a Microwave Sensor Base pre-installed with an IP-rated cap.
The newly designed and compact die-cast aluminum dark bronze frame provides for enhanced heat dissipation, while the high light transmittant polycarbonate lens provides a NEMA Type 5 distribution – optional NEMA Beam Patterns are also available as accessories.
All fixtures are shipped without any mounting bracket installed – you can choose between a Yoke or Trunnion option along with a new Universal Mount that allows for a Round or Square Pole Mount, along with a built-in Slipfitter function. For additional energy savings, you can take advantage of the 0-10V Continuous Dimming, and also, the available Microwave Sensor and Photocell options.
Typical applications on either pole or surface mounts to highlight signage, building facades, car dealerships, parking lots, parks and sports fields, storage yards and general area lighting.
• Outdoor LED Light Source
• IP65 Wet Location Rated
• 10kv Built-In Surge Protection
• Type 5 NEMA Distribution / other NEMA patterns available under FLH5S-M Accessories.
• 3CCT – 3000K / 4000K / 5000K
• 3 Wattage Selectable – FLH5S-M150 – 150W / 120W / 100W
• Mounting Bracket Options – Trunnion, Yoke and Universal (Round or Square Pole and Slipfitter Function) brackets available
• 120-347V Photocell Base pre-installed with Shorting Cap
• 12V Microwave Sensor Base pre-installed with IP-rated cap
• 0-10V Continuous Dimming
• 5-Year Warranty
• L70 – 50,000 hours
• DLC 5.1 Premium
|COLOR TEMPERATURE (K)|
|MASTER CARTON QTY.|
IES FILE 100W
IES FILE 120W
IES FILE 150W
