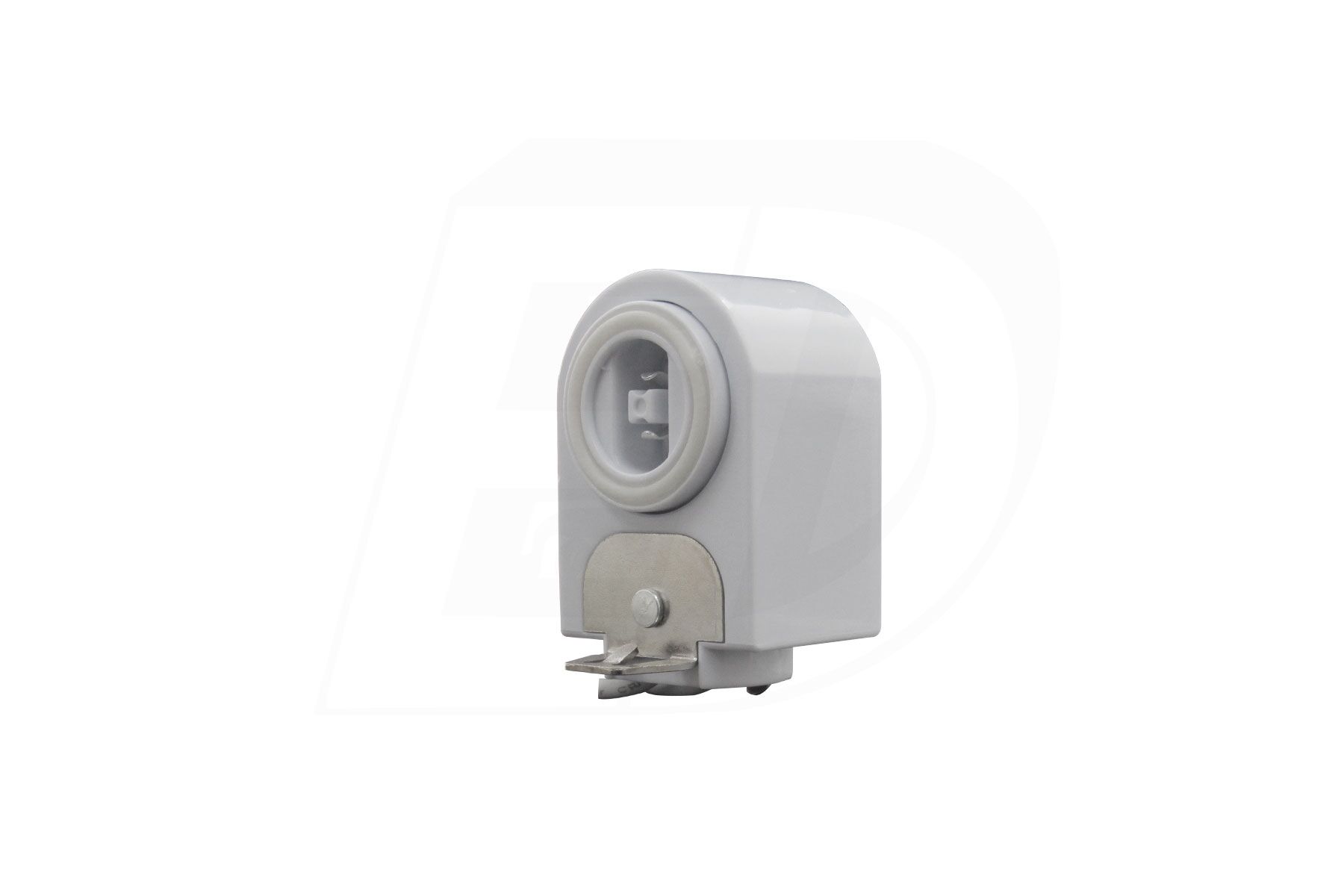

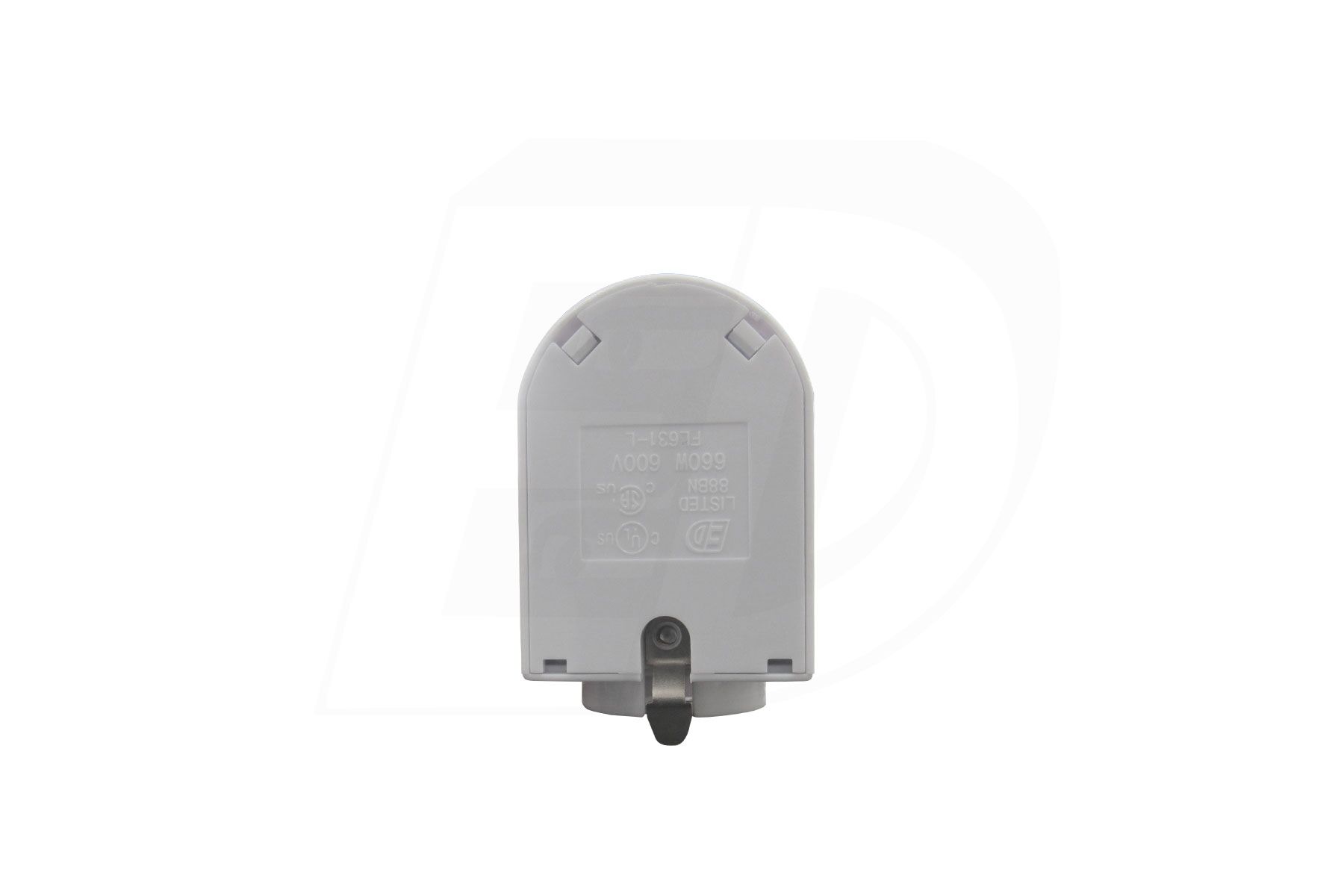

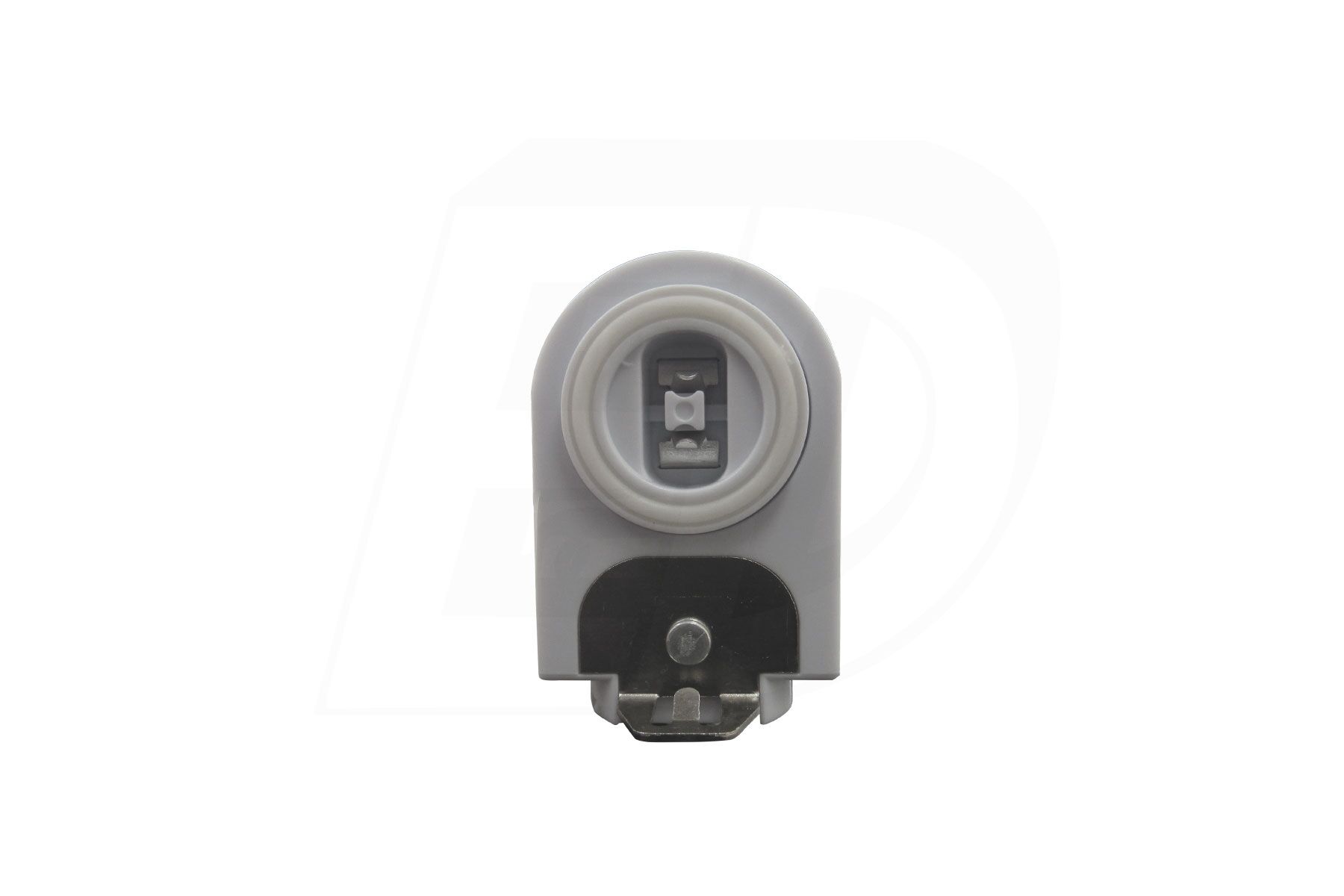

FL631-L – T6, T8, T10, T12 Lamps High Output Fluorescent Light Socket – Snap-in, Fixed End Mount – R17D Base – 660 Watt 1000 Volts Max – cULus cCSAus

  • Body made from PC material
  • Silver plated Phosphor Bronze contacts
  • Fixed end of set, both are required
  • 9” 18AWG TEW AWN 105ºC wire leads, stripped 1/2” or per customer specifi cations
  • Neoprene “O” ring gasket
  • Mounts into “D” hole in panel
  • For .036” to .048” panel thickness
  • Available in vertical or horizontal contacts
  • Rated 600V 660W or 1000V 660W for non-home use
  • Certifi ed for outdoor use in enclosed fi xtures
  • cCSAus and cULus listed

TECHNICAL INFORMATION

ITEM.

LAMP TYPE

, , ,

LAMP BASE

MOUNTING

,

HEIGHT

LOCATING NIB.

SHUNTED

CONNECTION

WIRES FROM.

Wattage (W)

VOLTAGE (V)

,

COLOR.

MATERIAL.

STRIP LENGTH

CERTIFICATION

,
