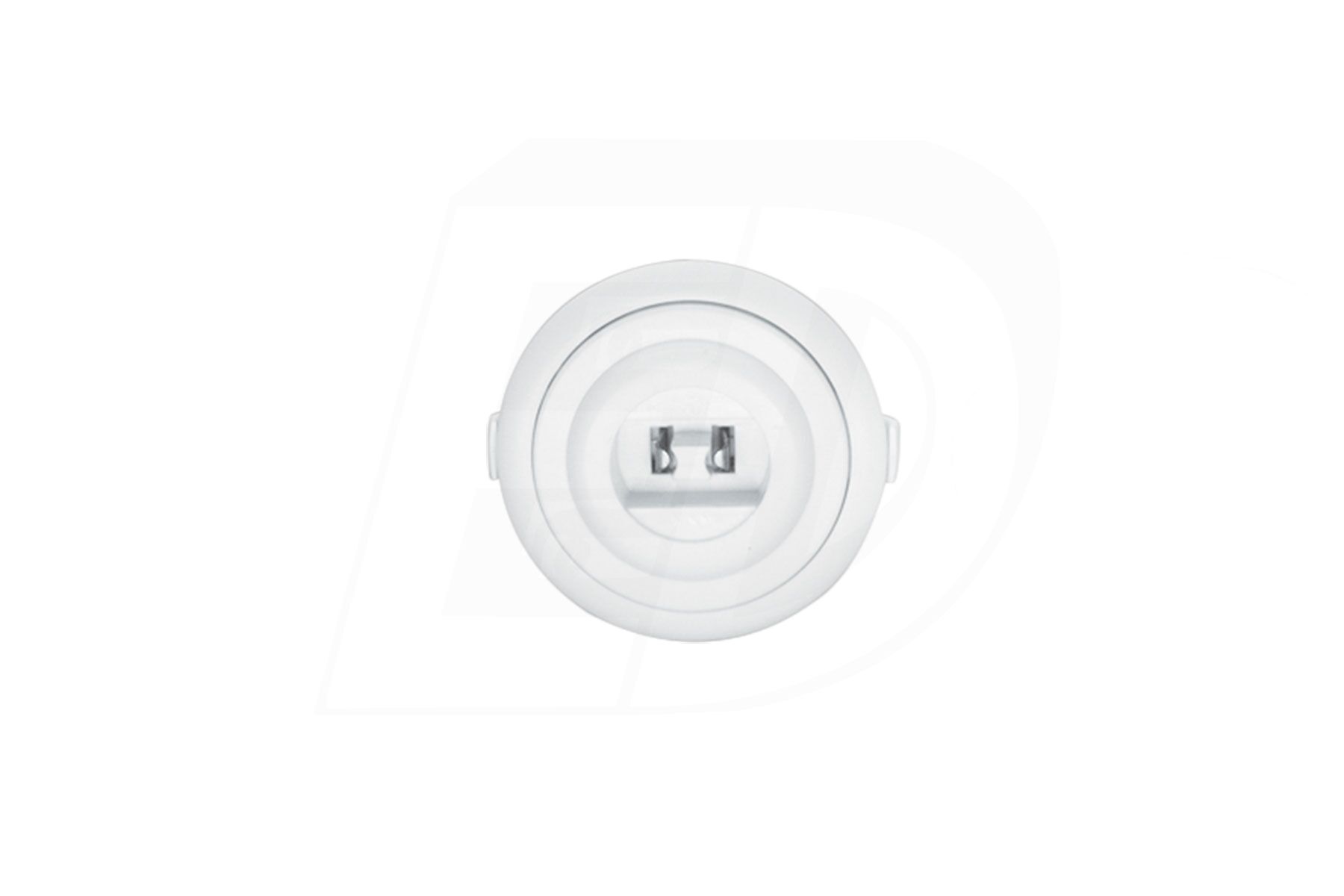

FL523 – T6, T8, T10, T12 Lamps High Output Fluorescent Light Socket – Snap-in, Plunger End Mount – R17D Base – 660 Watt 1000 Volts Max – cULus cCSAus
- These updated lampholders are made polycarbonate
- Ideal for retail, commercial, signage and industrial applications
- Keyway provides proper orientation and secures lampholder
- Quickwire terminals accept 18 AWG solid or bonded copper wire, strip
- For panel thicknesses from 0.035” to 0.050” ( .9mm to 1.3mm )
- Easily snaps into panel for quick assembly
- Wires from the back of the lampholder
- Two wire ports per terminal
- FL524 is rated at 1000W 600V
- c UL us, c CSA us listed
