TECHNICAL INFORMATION
| ITEM | |
|---|---|
| LAMP BASE | |
| USE WITH | |
| MOUNTING | |
| CONNECTION. | |
| WIRES-FROM | |
| Wattage (W) | |
| VOLTAGE (V) | |
| COLOR. | |
| MATERIAL. | |
| STRIP LENGTH | |
| CERTIFICATION |

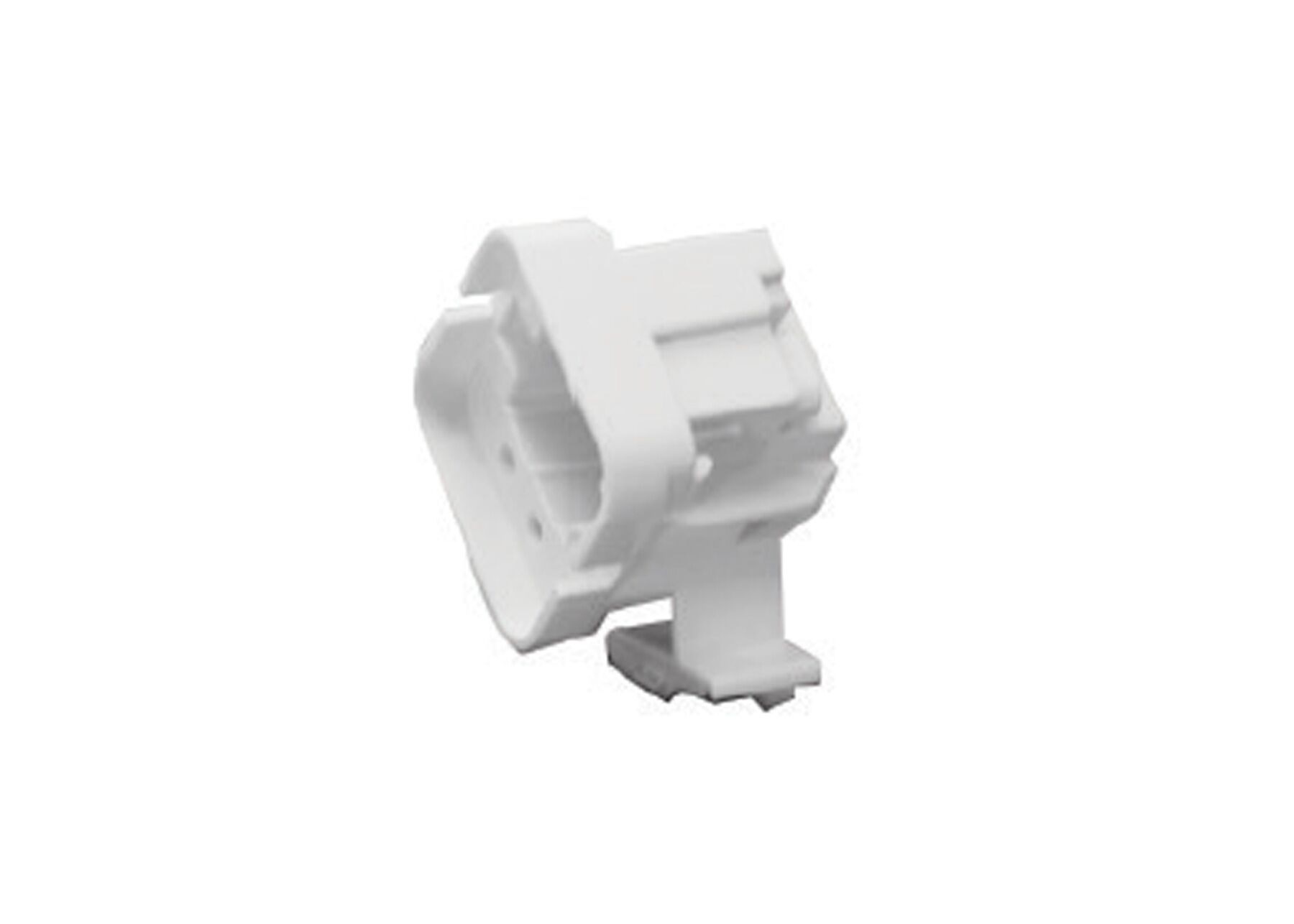

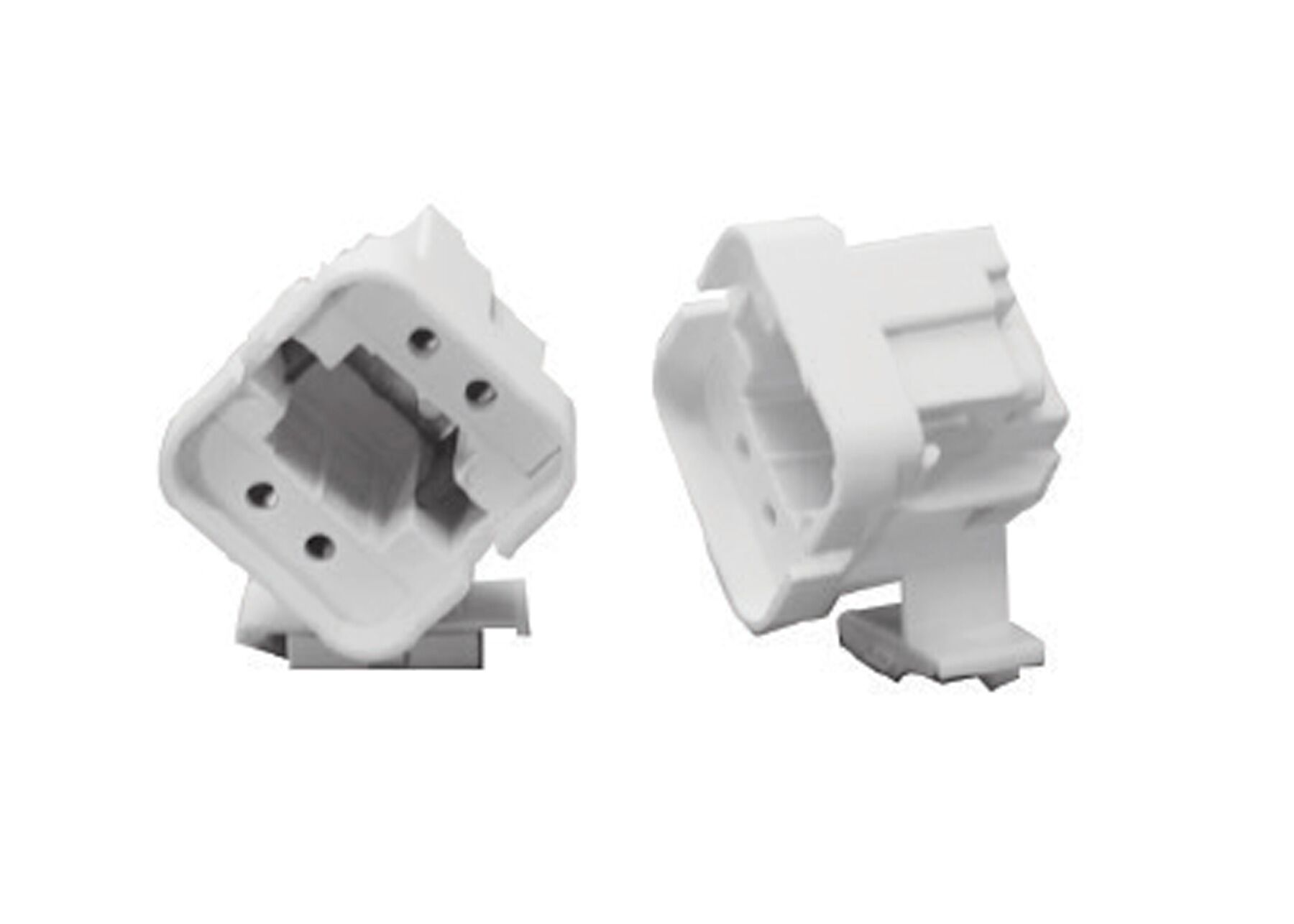

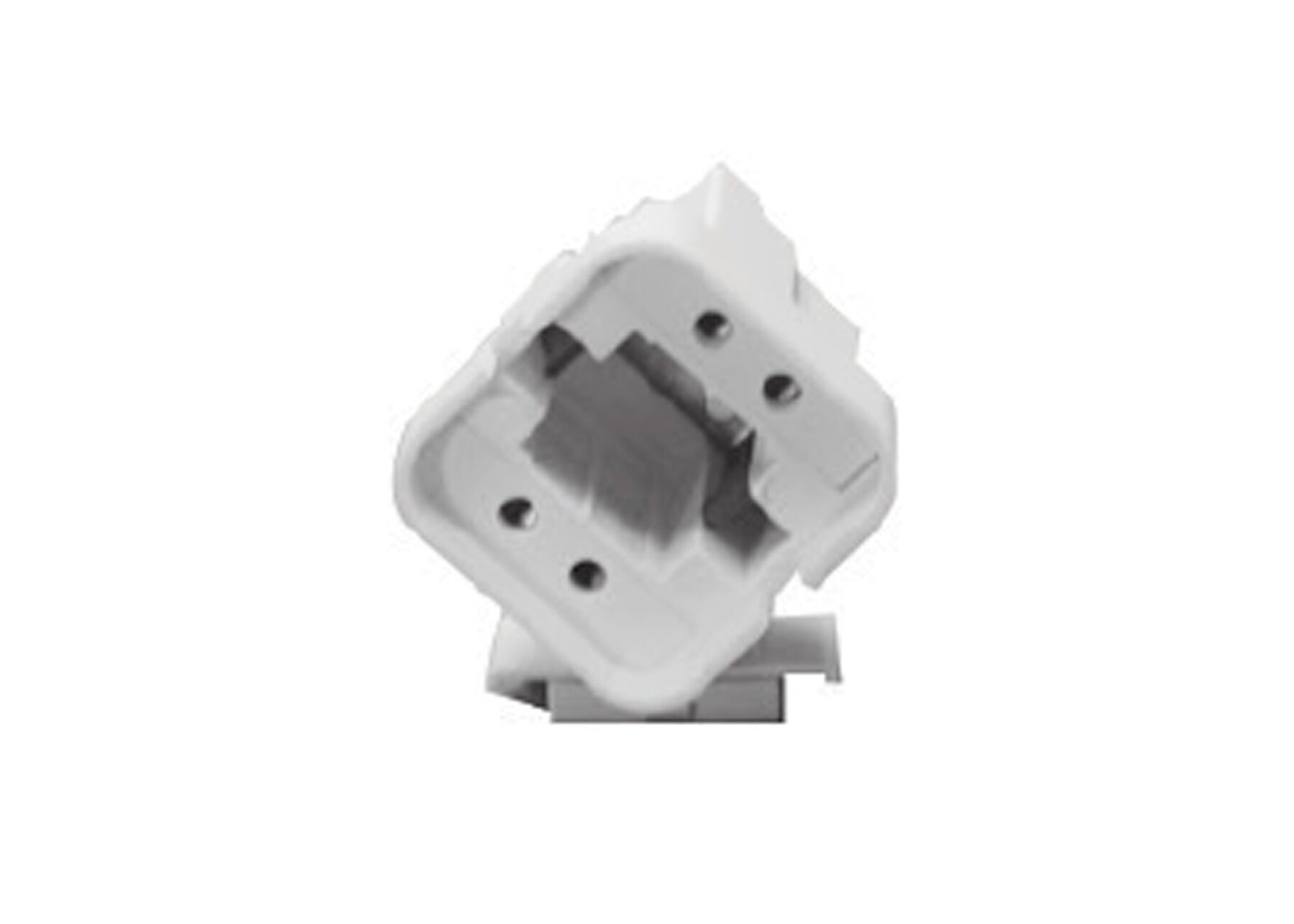

FL423V-Q3-45-BSI – 4 Pin G24, GX24 CFL Light Socket – Horizontal Snap-in Mount, 45º Angle – All Wattages Triple or Quad Tube Lamps – 75 Watt 600 Volts Max – cULus cCSAus
- For 4 pin electronic ballasted quad or triple tube lamps
- White high heat Polycarbonate body, 110°C rated
- Metal spring clip for positive lamp retention
- Quick connect push-in wire terminals for 18 AWG Solid or Twist & Tin or solder dipped wire, stripped 3⁄8”
- Two wire ports per terminal to speed harness wiring
- Snap In mount on base plate
- Rated 75W, 600V
- cCSAus Certified / cULus Listed
