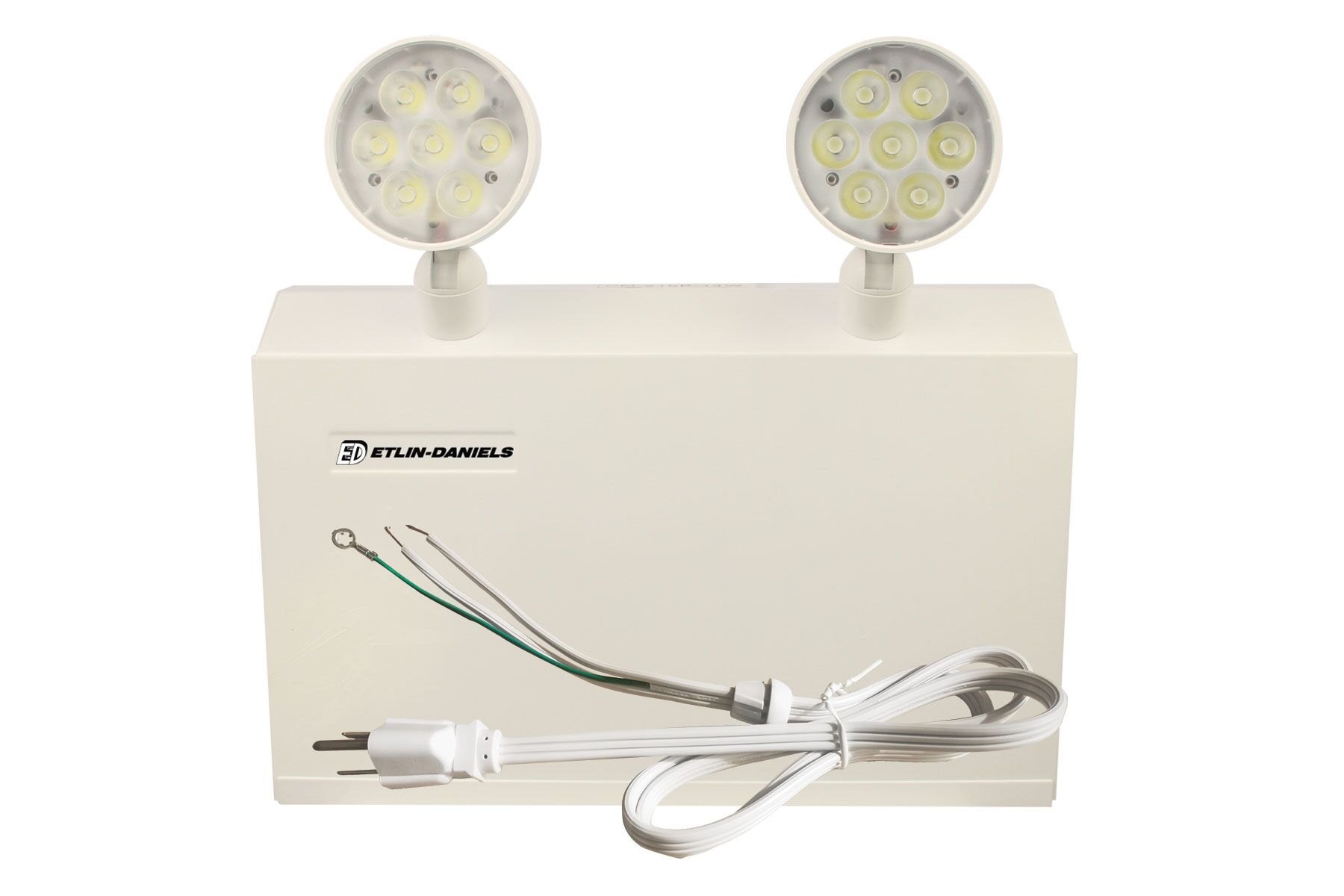

ER3140D-WHM-A13CP-BB-10RC – LED Emergency Light Battery Unit, Metal Compact Frame with 2 X 5W Thermoplastic Adjustable Heads, Internal Battery May Power Up to 140W of Remote Heads at 12VDC, 120 / 347V, Battery Backup > 120 Min., Remote Capable, CAN ICES-005 (B) / NMB-005 (B)

DESIGN:
• Rugged steel housing.
• Thermplastic, adjustable LED Combo Heads.
120V AC power cord with plug supplied in packaging.
• Universal Spider pattern knockouts and keyhole slots stamped in back of housing for mounting.
• White powder coat finish is standard. Black powder coat also available.
• Top Combo Head Mounting.

CIRCUITS:
• 120/347V, 60Hz Input.
• 6 V DC / 12 V DC / 24 V DC emergency power output available.
• Wattage capabilities from 36W to 500W.
• 30 Minutes Emergency Power duration time is standard.
• Push Button test switch / Pilot LED for AC on and Charge Indicator.
• Solid state design.
• Surge Protection – 1500V.
• Maintenance Free Lead Acid Battery.
• Complete Battery Recharge time from 24-50 hours.

CERTIFICATIONS:
  ER3140D / ER3275D – cCULus
   ER300D / ER302D / ER370D / ER372D /
   ER3144D / ER3320D / ER3500D – cCSAus
• Complies to CSA 22.2 #141-15
• Meets ICES-005 Requirements

TECHNICAL INFORMATION

Wattage (W)

Input Power

14W / 16W

Wattage Capacity

30 Min: 140W / 60 Min: 70W / 90 Min: 46W / 120 Min: 35W

Heads

2 x 5W

VOLTAGE (V)

Output Voltage

12 VDC

Battery Back-Up

Remote Capable

CERTIFICATION

,

SPEC SHEET

INSTRUCTION MANUAL



IES
