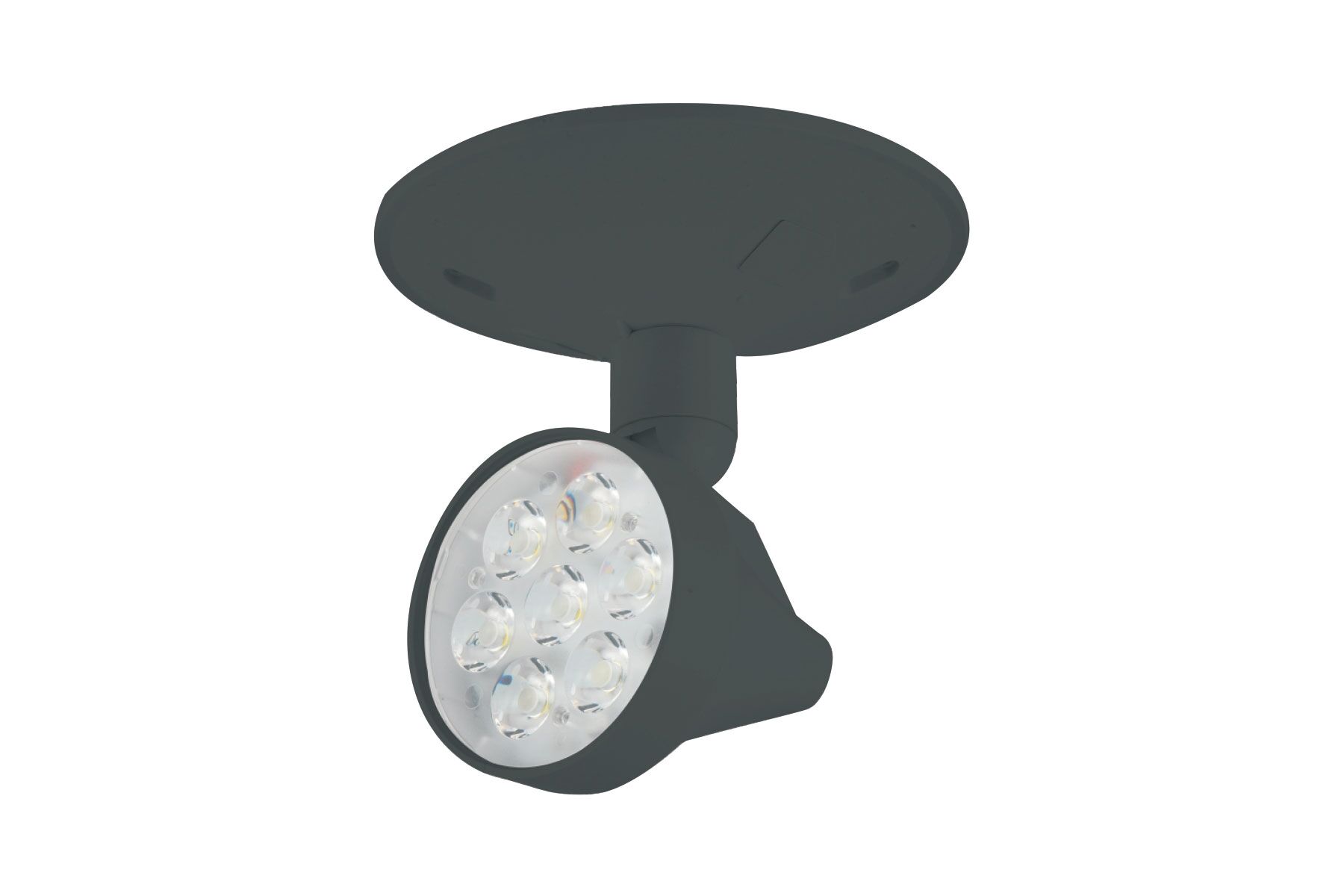

ER270SBL-U24D-7 – LED Single Remote Head Emergency Light, Thermoplastic Adjustable 1 X 7W Heads, 6V – 24VDC

 DESIGN:
 • High Impact ABS Thermoplastic.
• Fully Adjustable and lockable.
• Ceiling & Wallmount.
• Surface Mounting Holes to Match J-Box.
• White & Black Available.
• Lumen Output Remains Stable Throughout Battery Discharge.
• Colour Temp.: 6000 – 6500K.• IP20 Rating.• Class II Safety Classification.

 CIRCUITS:
 • Supply Voltage 6-24VDC.
• Output Voltage 3V.
• Operating Temp 0-30˚C.
• Single Heads – 1W / 5W / 7W.
• Dual Heads – 1W / 5W / 7W.
• Super Bright SMD LED.

 CERTIFICATIONS:
• cCSAus
• Complies to CSA 22.2 #141-15
• Meets ICES-005 Requirements

TECHNICAL INFORMATION

Wattage (W)

Output Power

7W

Max. Discharge Current

1250mA

VOLTAGE (V)

LUMENS (LM)

CERTIFICATION

,

SPEC SHEET

INSTRUCTION MANUAL



IES FILE
