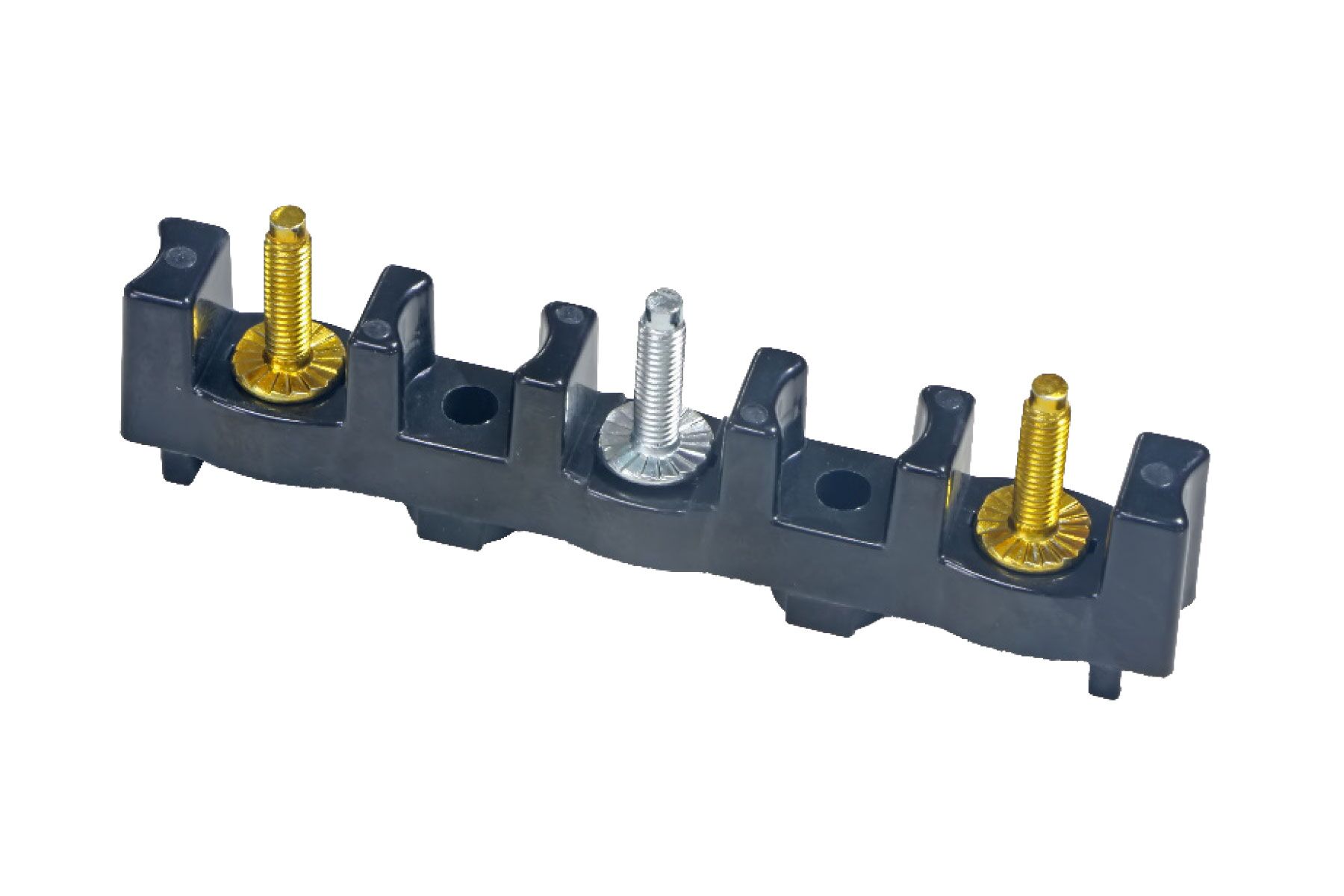

EDDTP-20TB – HEAVY DUTY STUD POST CONNECTION BARRIER POWER TERMINAL BLOCK – 3 POLES – 12 to 4 AWG – 65 AMPS, 300V
These stud type heavy duty barier terminal blocks allow you to bring in your power and then split it off to the circuits using ring or fork terminals to connect to your load side. These blocks are compact and are easy to wire, saving time and cost.
KEY BENEFITS INCLUDE:
• Space savings with high-density wiring.
• Secure connections with a lug-and-stud design that prevents conductor pull-out
• Easy assembly with quick panel mounting via peg and screw holes.
IDEAL FOR USE IN:
• HVAC: Furnaces, air conditioners, thermostats.
• Appliances: Ovens, refrigerators, washers, dryers, and more.
• Commercial kitchen equipment, vending machines. • Automotive: RVs, farm equipment, marine applications
TECHNICAL INFORMATION
| POLES | 3 Poles |
|---|---|
| RATING | 300V 65A |
| FLAMMABILITY RATING | 94 – V0 |
| LOAD SIDE CONNECTION MATERIAL | SWRM |
| LOAD SIDE MATERIAL | Alum |
| LOAD SIDE TERMINAL MATERIAL | Steel |
| LOAD SIDE CONNECTION | 10 – 32 Steel |
| MAX. OPERATING TEMP | 150ºC |
| WIRE RANGE | 4 – 12 AWG |

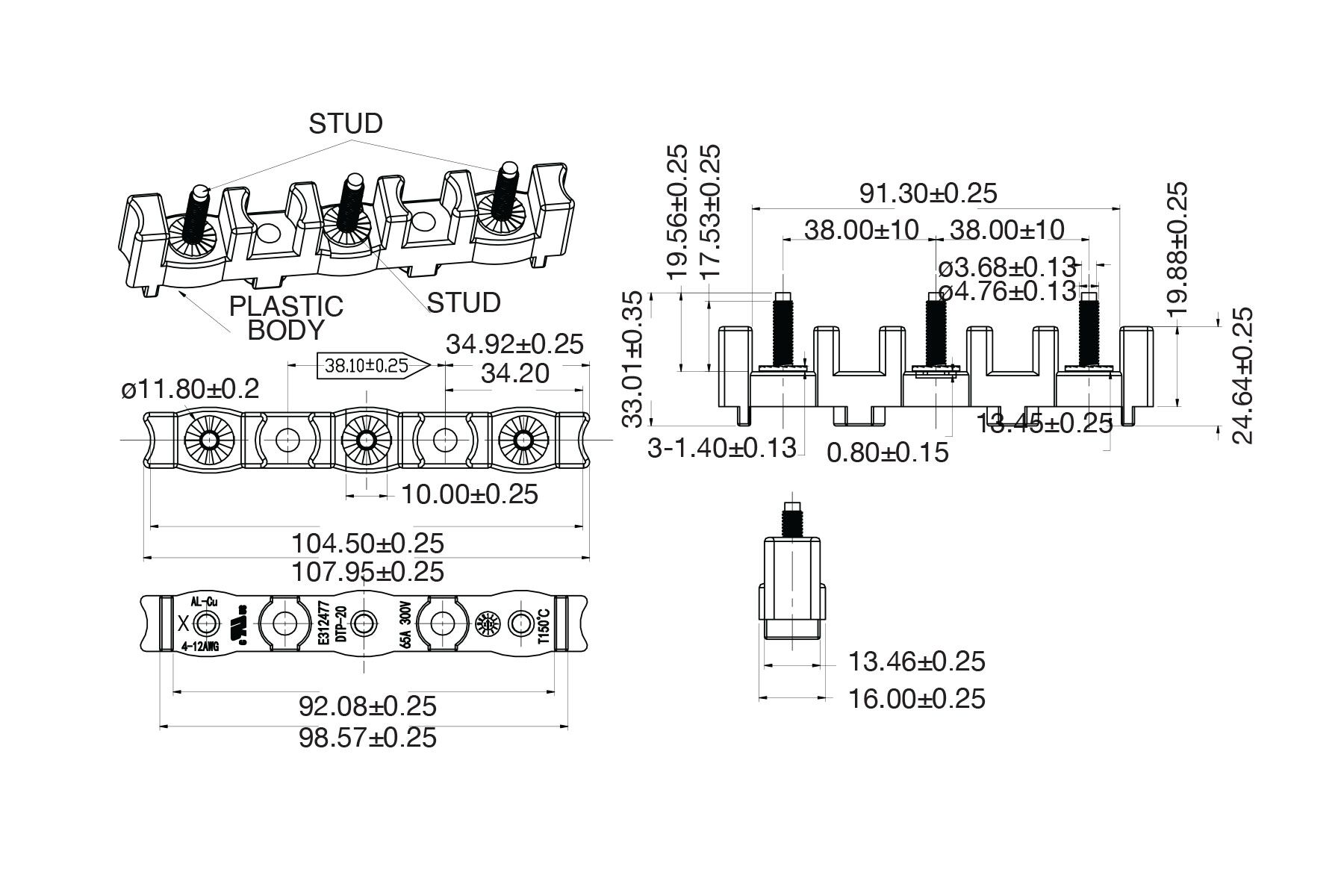

SPEC SHEET
