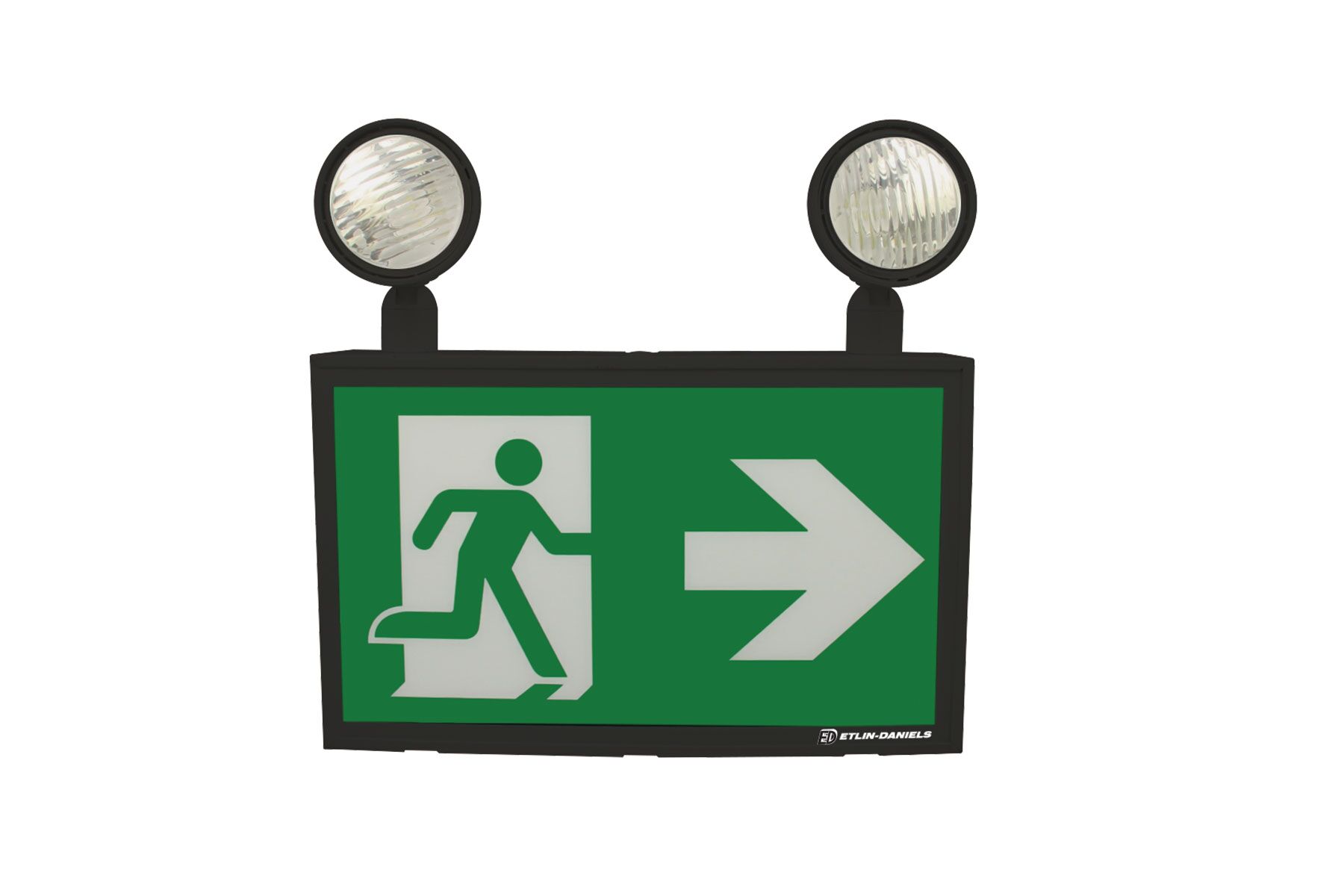

EC322BLM-A13-BB-GU-4 – LED Running Man Exit Sign with Combo Heads, Metal Frame Single and Double Sided Operation, Adjustable 2 X 2W Combo Heads, 3 Running Man Pictogram Legends Included, 120 – 347V, Battery Backup > 120 Min., No Remote Capability
DESIGN:
• Durable Steel Housing
• Wall and side mount only
• Single or double face
• 3 pictograms included for directional orientation
• IP20 – Damp Location•
White powder coat finish is standard. Black powder coat also available.
• High illuminance LED display
CIRCUITS:
• EX300 – 120/347V / 50/60Hz. EC322 – 120-347V / 50/60Hz
• >120 Minute Battery Back-up.
• 24 Hour Recharge Time.
• Push Button test switch / Pilot LED for AC on and Charge Indicator.
• Surge Protection – 1500V.
CERTIFICATIONS:
• cCSAus
• Complies to CSA 22.2 #141-15
• Meets ICES-005 Requirements
TECHNICAL INFORMATION
| Wattage (W) | |
|---|---|
| Heads | 2 x 2W |
| VOLTAGE (V) | |
| Battery Back-Up | |
| CERTIFICATION |
SPEC SHEET
INSTRUCTION MANUAL
IES FILE
