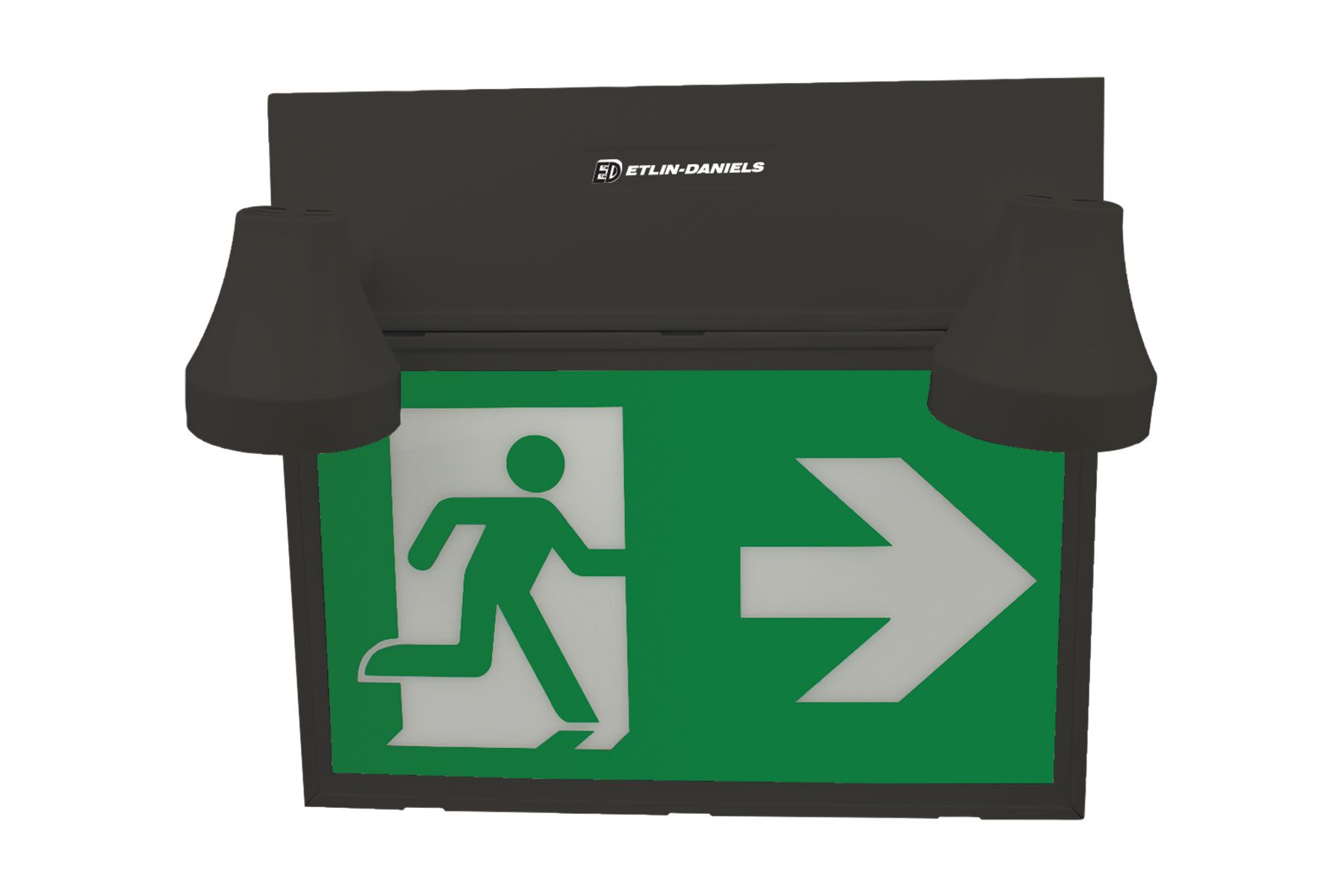

EC302BLM-A13-BB-GU-10RC – LED Running Man Exit Sign with Combo Heads, Adjustable 2 X 5W Combo Heads, Internal Battery May Power Up to 34W of Remote Heads at 6VDC, 120 / 347V, Battery Back Up > 120 Min, Remote Capable, CAN ICES-005 (B) / NMB-005 (B)

DESIGN:
• Rugged steel housing – built for large battery capacity.
• Thermplastic, adjustable LED Combo Heads.
• Universal Spider pattern knockouts and keyhole slots stamped in back of housing for mounting.
• Side mounting available.
• 3 Running Man pictogram legends are supplied for directional orientation – single & double sided.
• White powder coat finish is standard. Black powder coat also available.
• Top Combo Head Mounting.

CIRCUITS:
• 120/347V, 50/60Hz Input.
• 6 V DC / 24 V DC emergency power output available.
• Wattage capabilities from 36W to 500W.
• 30 Minutes Emergency Power duration time is standard.
• Push Button test switch / Pilot LED for AC on and Charge Indicator.
• Solid state design.
• Surge Protection – 1500V.
• Maintenance Free Lead Acid Battery.
• Complete Battery Recharge time from 24-50 hours.

CERTIFICATIONS:
•  ER3140D / ER3275D – cCULus
   ER300D / ER302D / ER370D / ER372D /
   ER3144D / ER3320D / ER3500D – cCSAus
• Complies to CSA 22.2 #141-15
• Meets ICES-005 Requirements
