TECHNICAL INFORMATION
| WIRE RANGE |
|---|

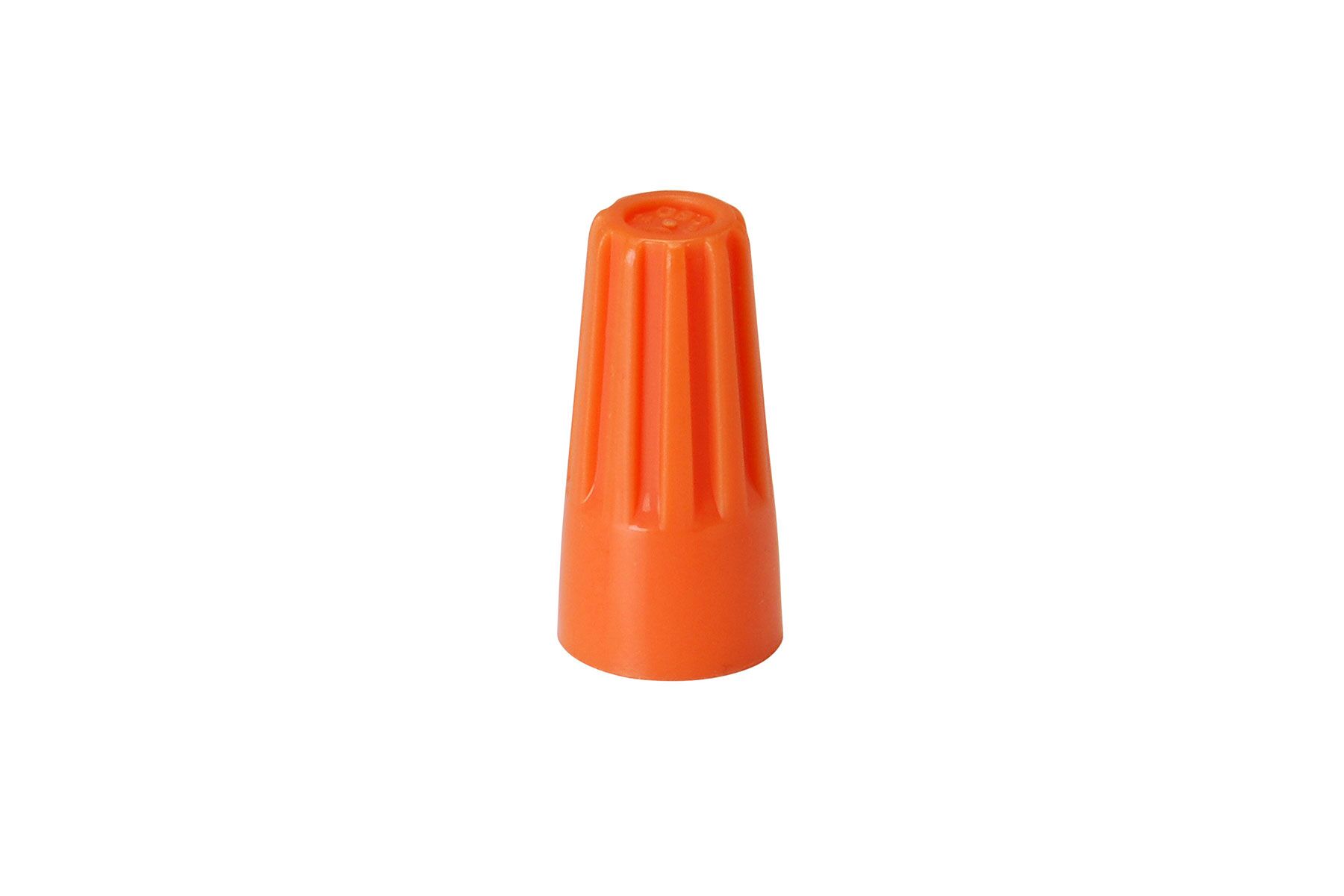

E-3CB Boxed – Orange Terminal Wire Nut Connectors with Spring (100 pcs.) – 1 – 4 Wires – 16 AWG – 600V – 105ºC
E-3CB Boxed – Orange Terminal Wire Nut Connectors with Spring (100 pcs.) – 1 – 4 Wires – 16 AWG – 600V – 105ºC
PVC Wire Nut Connectors with Springs
Etlin Wire Nut Connectors are the industry standard with durability and high quality. They come with square wire spring threads which make tightening easy and fast. These connectors are removable for re-use and are colour coded.
Connectors are moulded from extruded PVC fire-resistant material. They resist cracking and are excellent against environmental extremities. The high dielectric shell has a deep skirt design which prevents exposure to bare wire. The versatile selection of sizes covers building wires from #22 to #10 AWG.
The suffix “CB” means packed in 100 Pack cardboard box and the suffix “-25” means packed in 25 Pack poly bag with a header card.
