TECHNICAL INFORMATION
| WIRE RANGE |
|---|

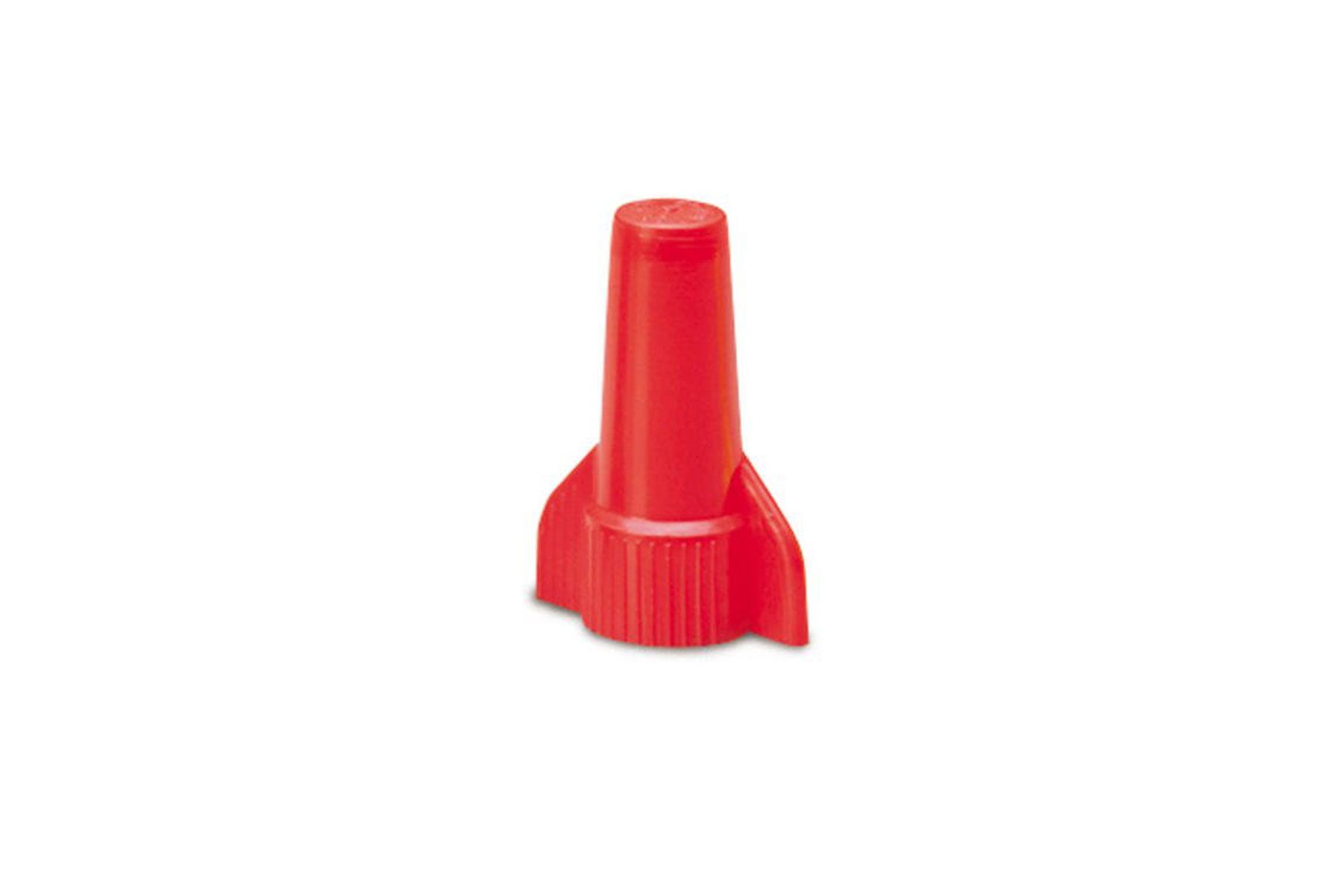

E-13 – Red Winged Screw On Terminal Wire Nut Connectors – 3 – 5 Wires – #18 – 8 AWG – 600V
E-13 – Red Winged Screw On Terminal Wire Nut Connectors – 2 – 5 Wires – #18 – 8 AWG – 600V – Max. #12 (x5), Min. #16 (x3) – 105ºC
