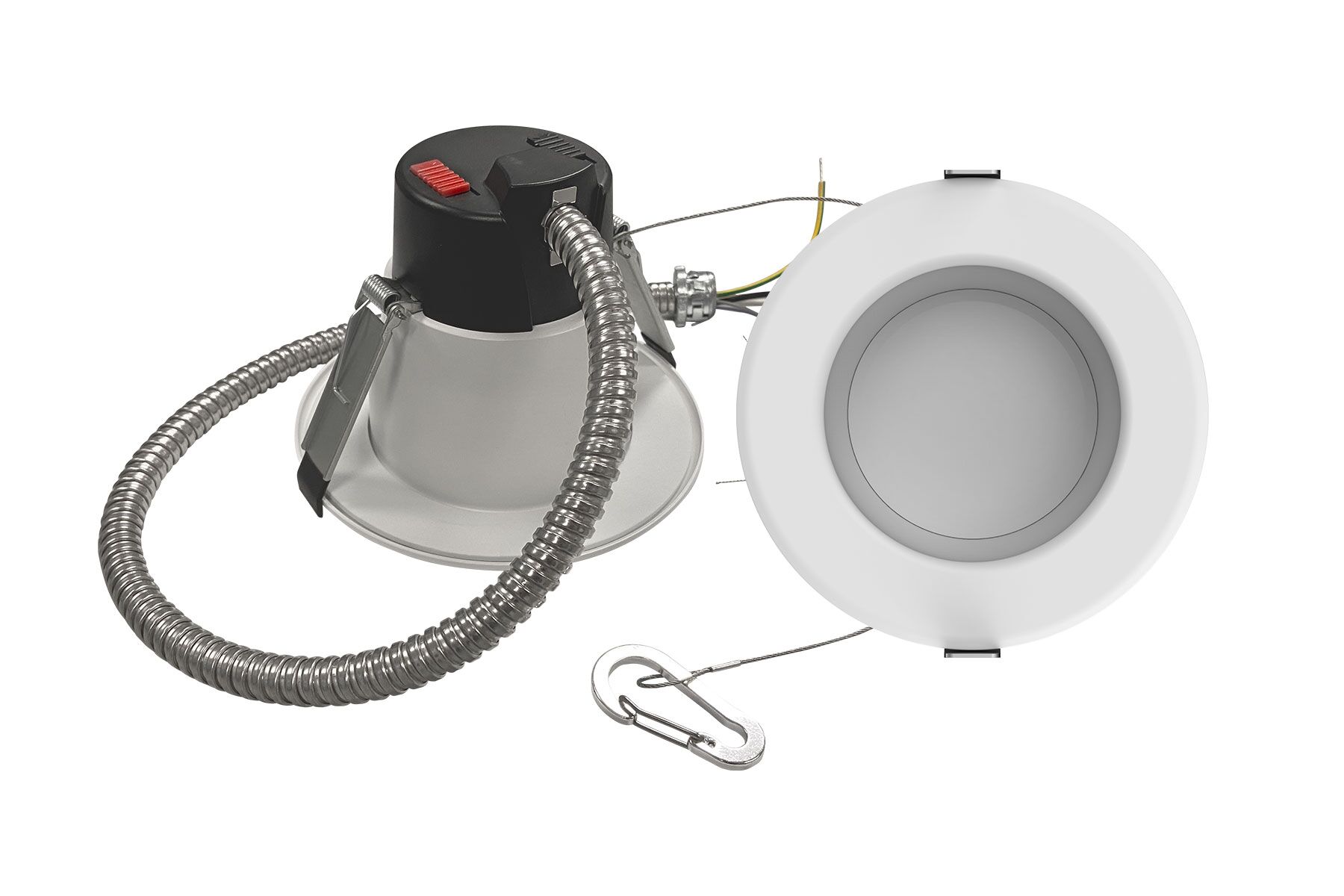

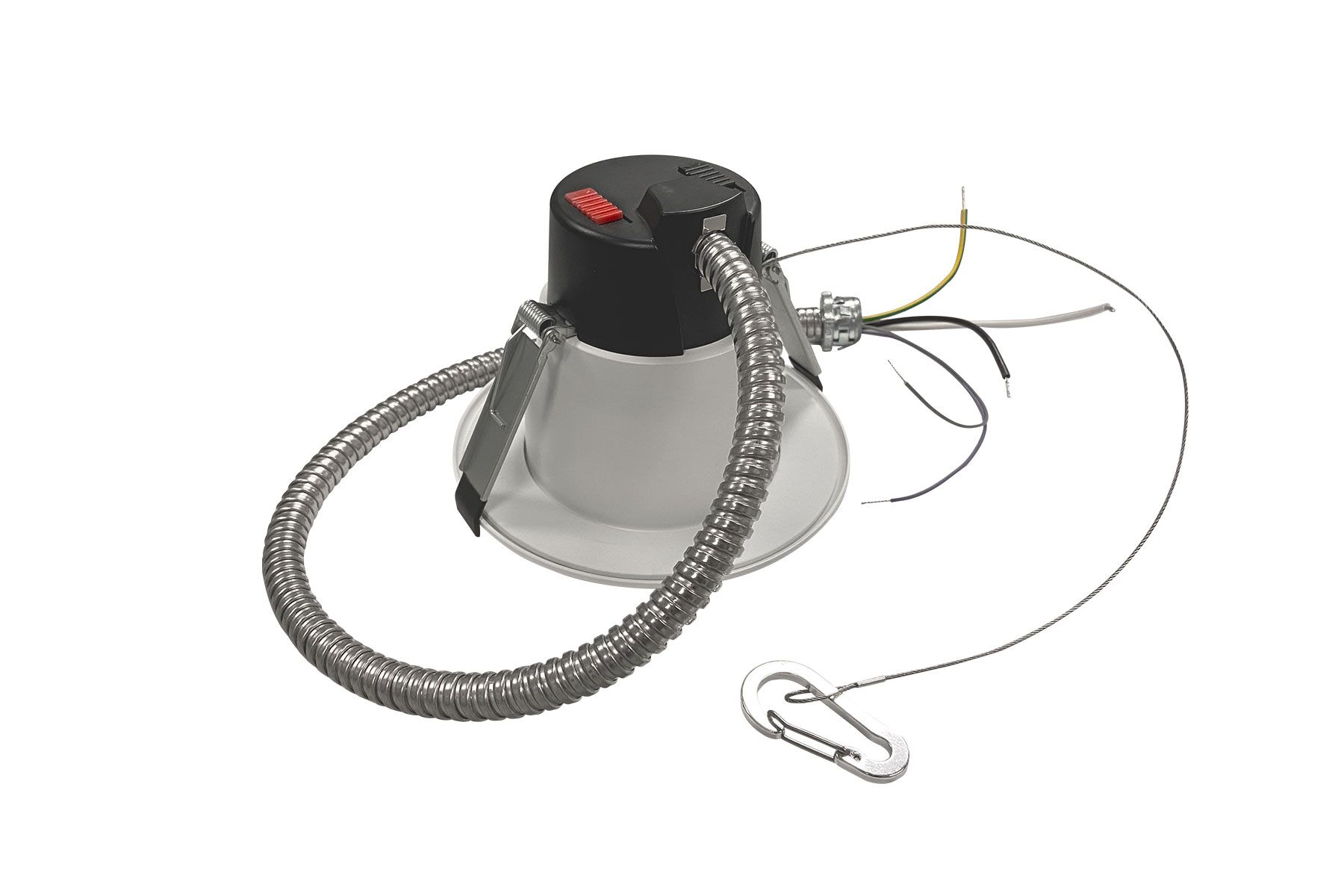

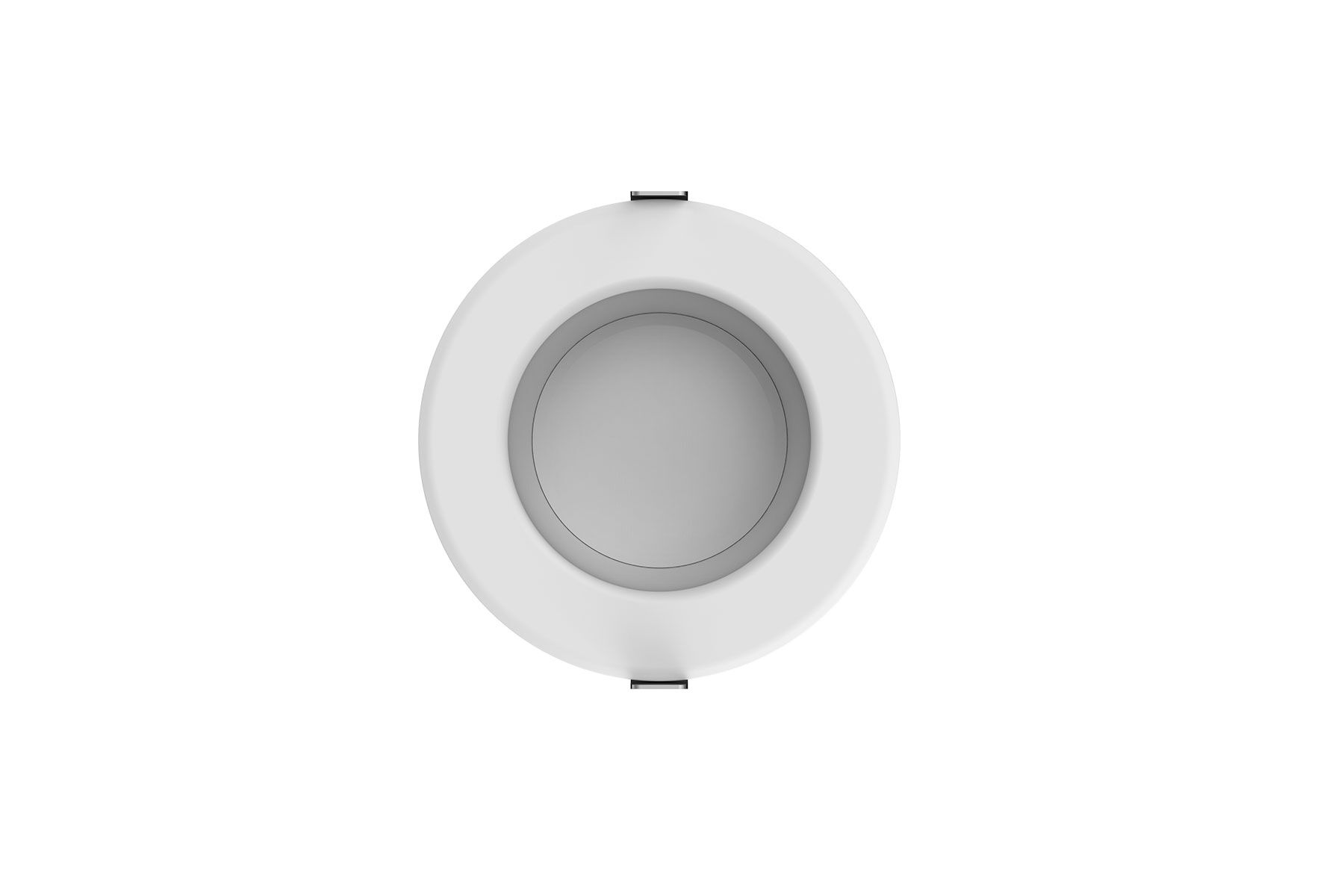

DLCLR4-5812WC0-WH-FB – 4 Inch. Round Multi-Wattage and Color Selectable Integrated LED Commercial Recessed Lighting, 0 – 10V Continuous Dimmable, 5.5W – 3000K = 499LM / 3500K = 495LM / 4000K = 494LM, 8W – 3000K = 735LM / 3500K = 760LM / 4000K = 750LM, 12W – 3000K = 1059LM / 3500K = 1103LM / 4000K = 1054LM, 120 – 347V

The new Etlin-Daniels DLCLR4-5812WC0-WH-FB LED Commercial Recessed Downlight offers a simple to install, high performance solution for a wide variety of applications. Each LED fixture is available in 120-347V, and has a 3CCT switch offering 3000K, 3500K & 4000K options, along with a
Multi-Wattage Switch offering 3 lumen / wattage levels.
The deep baffle design provides glare free illumination with a 90° beam pattern. Wet location rated, with an IC Rated, Airtight Housing, the new DLCLR series is the perfect option for either new design builds, or to retrofit and upgrade existing recessed housings.
Available in a white housing with snap-on black and silver trims. White goof rings and pre-mounting plates are available for T-Grid ceilings as well as stud / joist installations. The 3 sizes provide the perfect solution for retail, commercial and residential, hospitality, educational and healthcare applications. For further energy savings, take advantage of the 0-10V Continuous Dimming.

• LED Indoor Light Source
• Wet Location Rated
• IC Rated with Airtight Housing
• 90 CRI
• 120-347V
• 90° Beam Pattern
• 3CCT and 3 Multi-Wattage Switching
• 0-10V Continuous Dimming
• Snap-On Black and Silver Trims
• Goof Rings (white) Available
• 24″ BX Cable Attached with Connector
• Safety Clip Attached
• 5 Year Warranty
• Energy Star Certified

SPEC SHEET

INSTRUCTION MANUAL



5.5W IES FILE


5.5W 3000K


5.5W 3500K


5.5W 4000K

8W IES FILE


8W 3000K


8W 3500K


8W 4000K

12W IES FILE


12W 3000K


12W 3500K


12W 4000K
