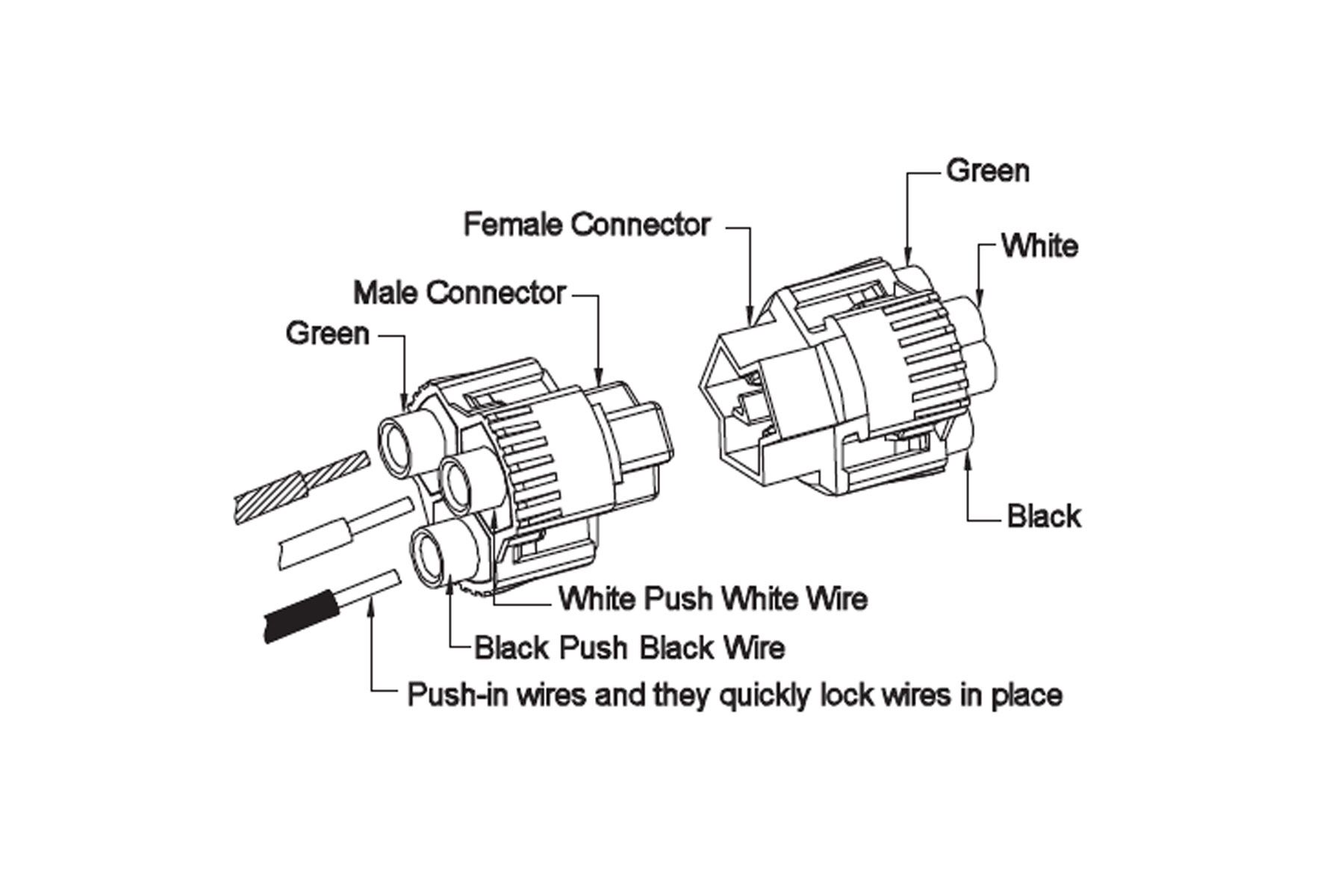

CN-03 – Electrical Disconnect – 3 Holes Inlet – 6 Holes Outlet – 18 – 14 AWG In & Out Wire – 2 PCS. SET – UL CSA

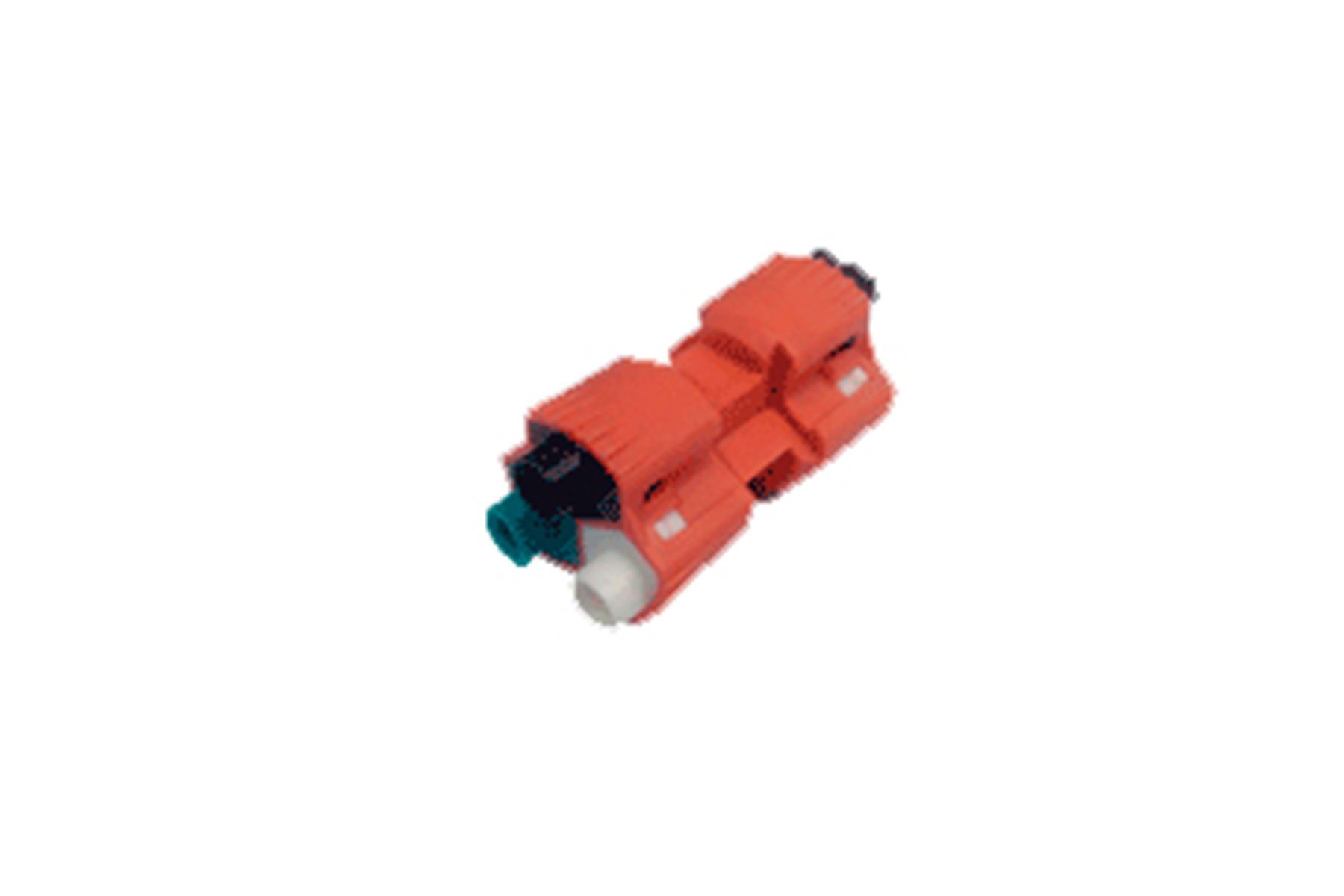

Type: Ballast Disconnect, two-piece, Orange Color
Wire: 18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise before applying solder on the stripped conductor end of the stranded wire).

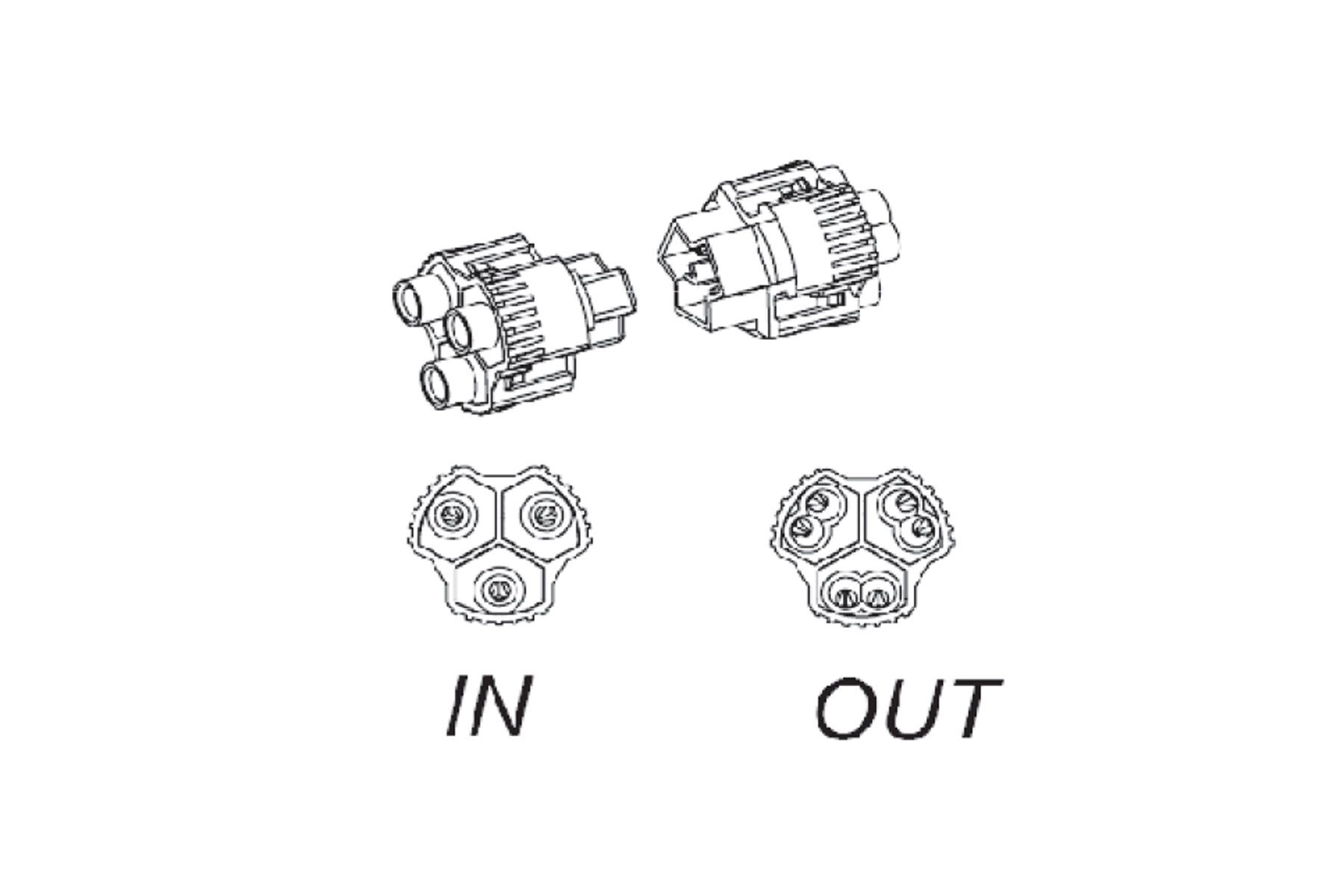

Input:  8 – 14 AWG Line (x3)
Output: 18 – 14 AWG Line (x6)
Strip Length: 3/8″
Max. Current Rating: 3.0A 120VAC / 1.3A 277VAC / 1.04A 347VAC / 0.75A 480 VAC / 0.6A 600 VAC
Material: ROHS certified
Housing: Nylon, UL94V-0 Flammability Rated
Contacts: Copper Alloy
Temperature: 105ºC
One-time use only

TECHNICAL INFORMATION

Additional Info.

Wire

18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise before applying solder on the stripped conductor end of the stranded wire).

Wire Input

18 – 14 AWG Line (x3)

Wire Output

18 – 14 AWG Line (x6)

Strip Length

3/8"

Max. Current Rating

3.0A 120 VAC / 1.3A 277 VAC / 1.04A 347 VAC / 0.75A 480 VAC / 0.6A 600 VAC

Material

ROHS certified

Housing

Nylon

Contacts

Copper Alloy

Temperature

105ºC

Flammability Rated

UL 94V-0
