Electrical Disconnect
Electrical Disconnect
Electrical Disconnect

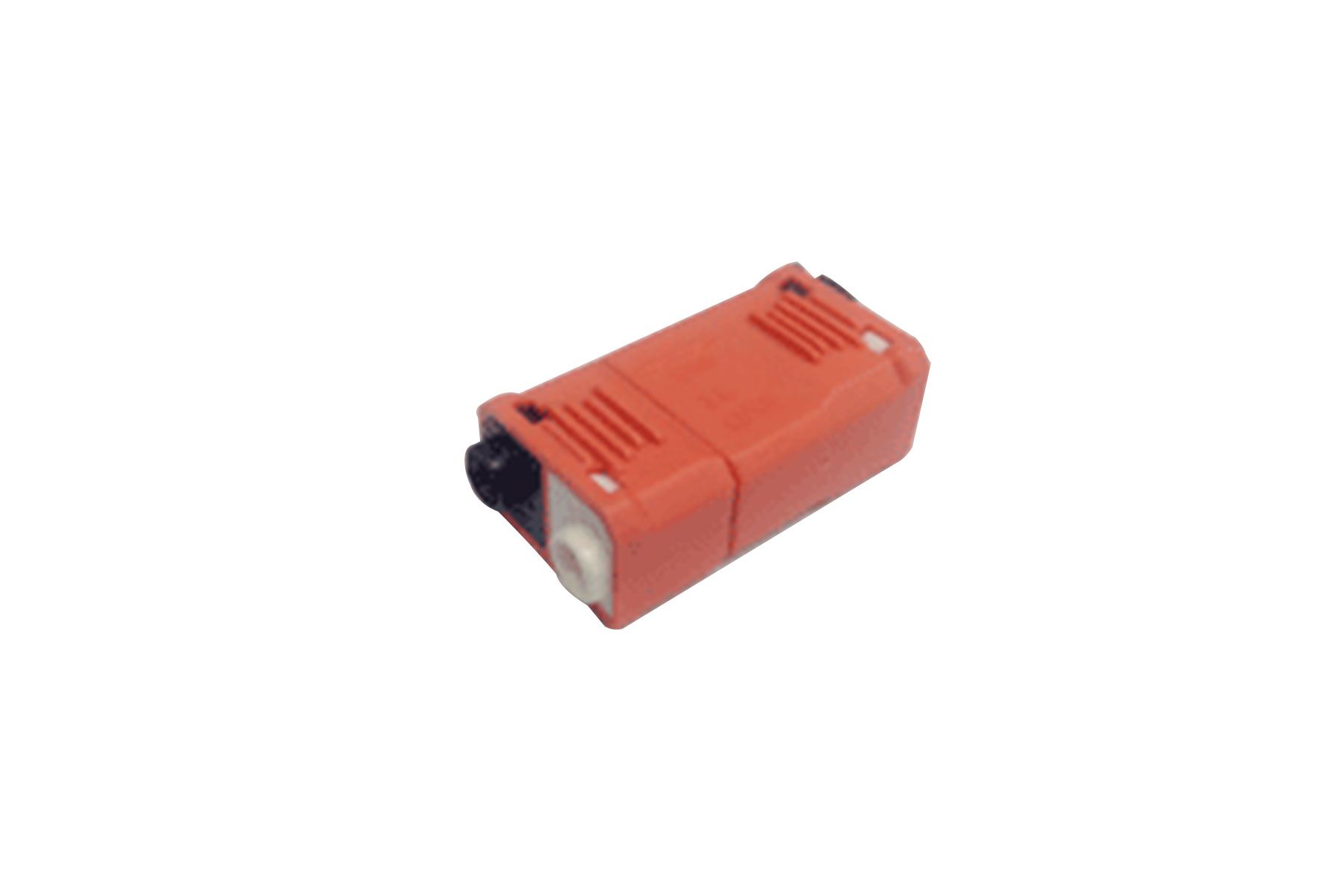

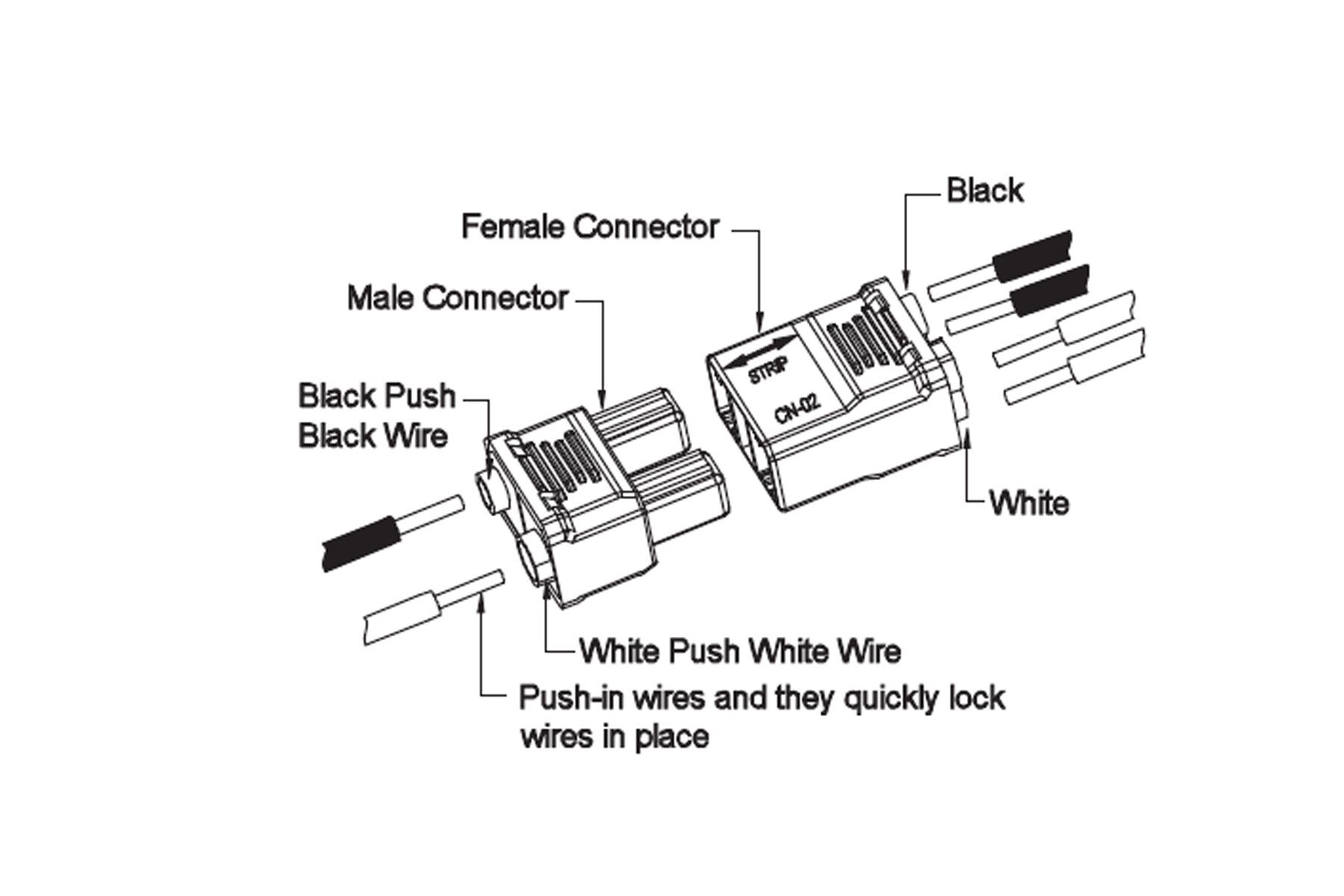

CN-02 – Electrical Disconnect – 2 Holes Inlet – 4 Holes Outlet – Male Side In 18 – 12 AWG Line – Female Side Out 18 – 14 AWG – 2 PCS. SET – UL CSA

Type: Ballast Disconnect, two-piece, Orange Color
Wire: 18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise before applying solder on the stripped conductor end of the stranded wire).

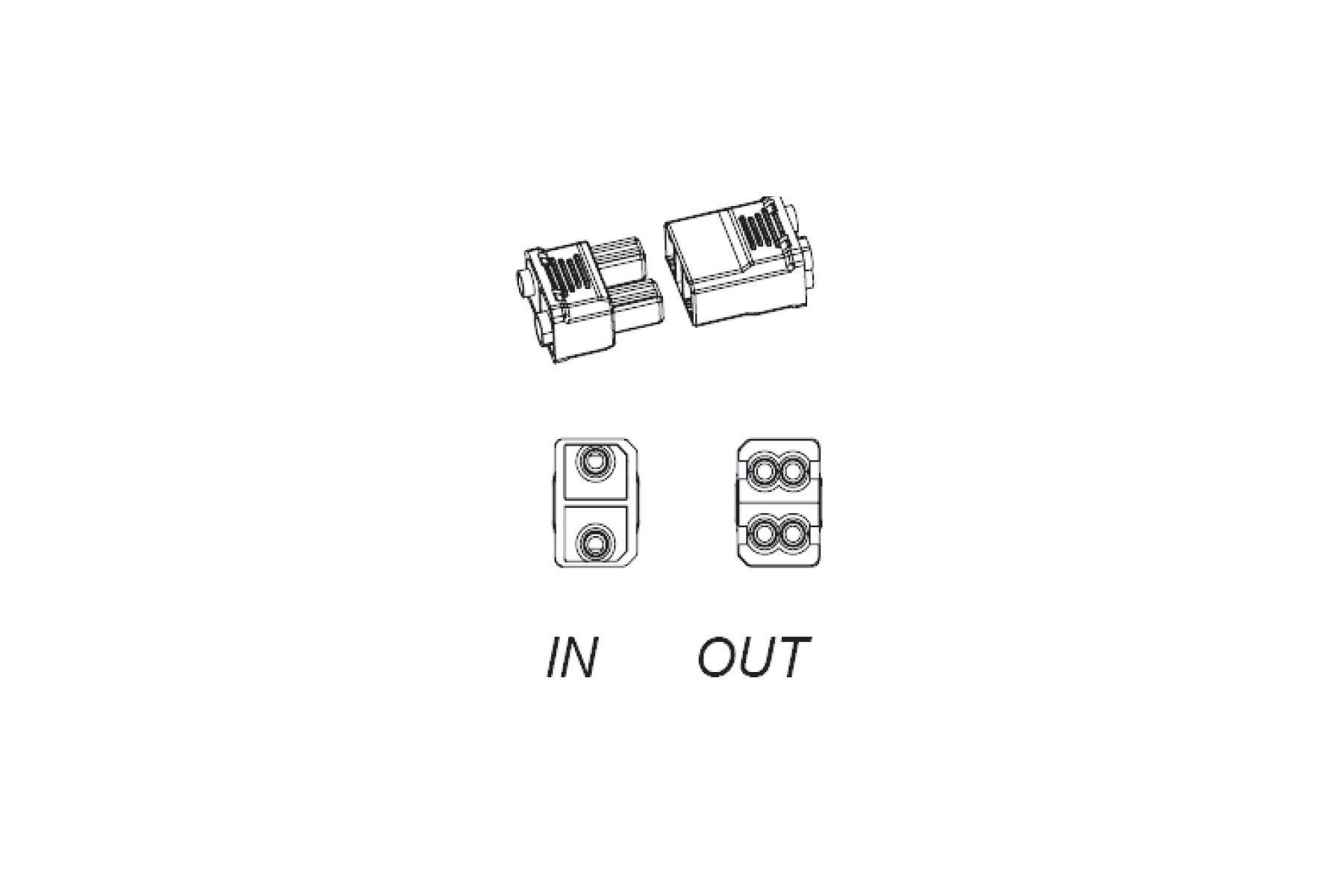

Input: Male Side In 18 – 12 AWG Line (x2)
Output: Female Side Out 18 – 14 AWG (x3)
Strip Length: 93/8″
Max. Current Rating: 3.0A 120VAC / 1.3A 277VAC / 1.04A 347VAC / 0.75A 480 VAC / 0.6A 600 VAC
Material: ROHS certified
Housing: Nylon, UL94V-0 Flammability Rated
Contacts: Copper Alloy
Temperature: 105ºC
One-time use only
Category:

TECHNICAL INFORMATION

Additional Info.

Wire

18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise before applying solder on the stripped conductor end of the stranded wire).
Wire Input

Male Side In 18 – 12 AWG Line (x2)
Wire Output

Female Side Out 18 – 14 AWG (x3)
Strip Length

3/8"
Max. Current Rating

3.0A 120 VAC / 1.3A 277 VAC / 1.04A 347 VAC / 0.75A 480 VAC / 0.6A 600 VAC
Material

ROHS certified
Housing

Nylon
Contacts

Copper Alloy
Temperature

105ºC
Flammability Rated

UL 94V-0
