Electrical Disconnect
Electrical Disconnect

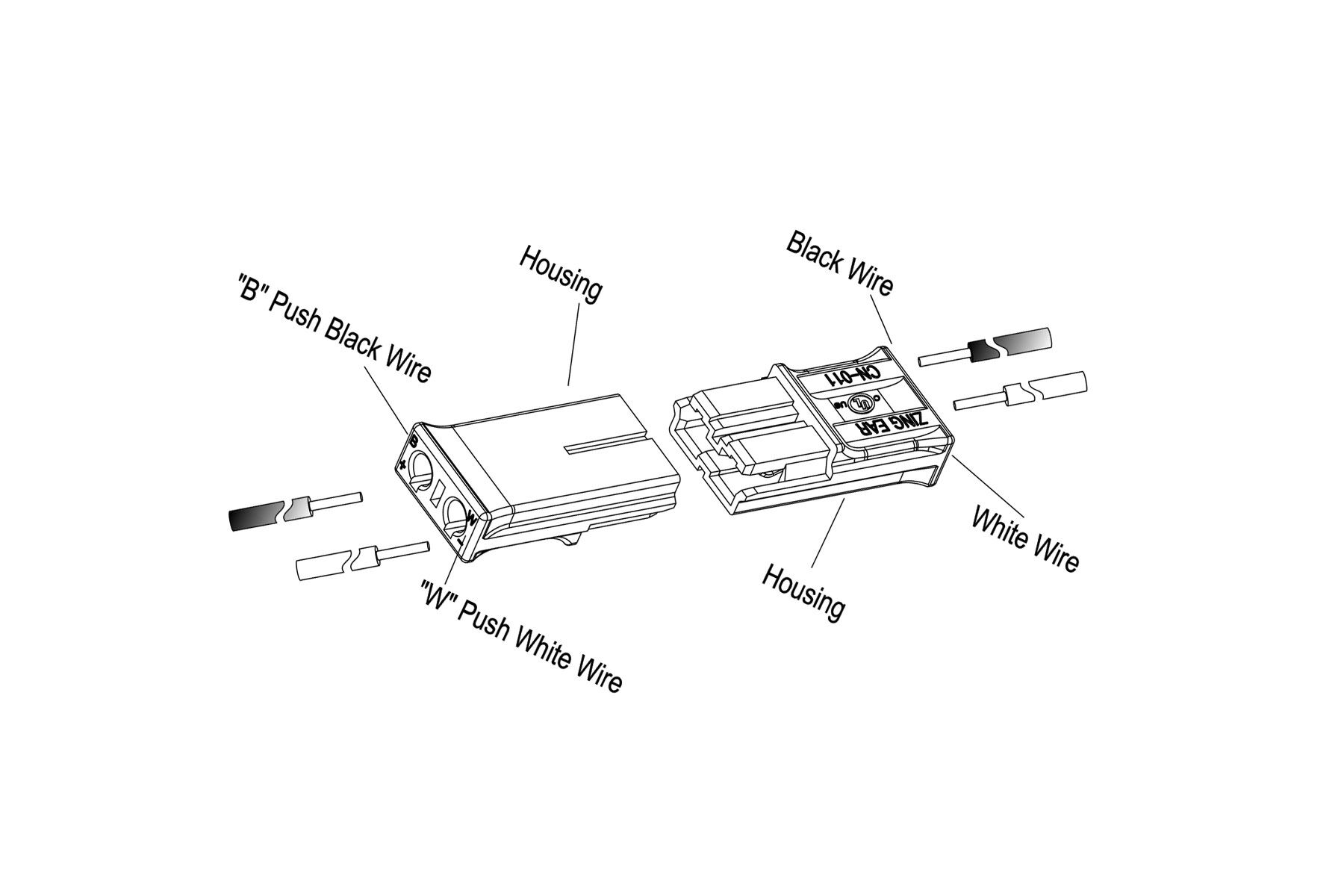

CN-011 – Electrical Disconnect – 2 Holes Inlet – 2 Holes Outlet – 18 AWG Line and Load – 2 PCS. SET – UL CSA

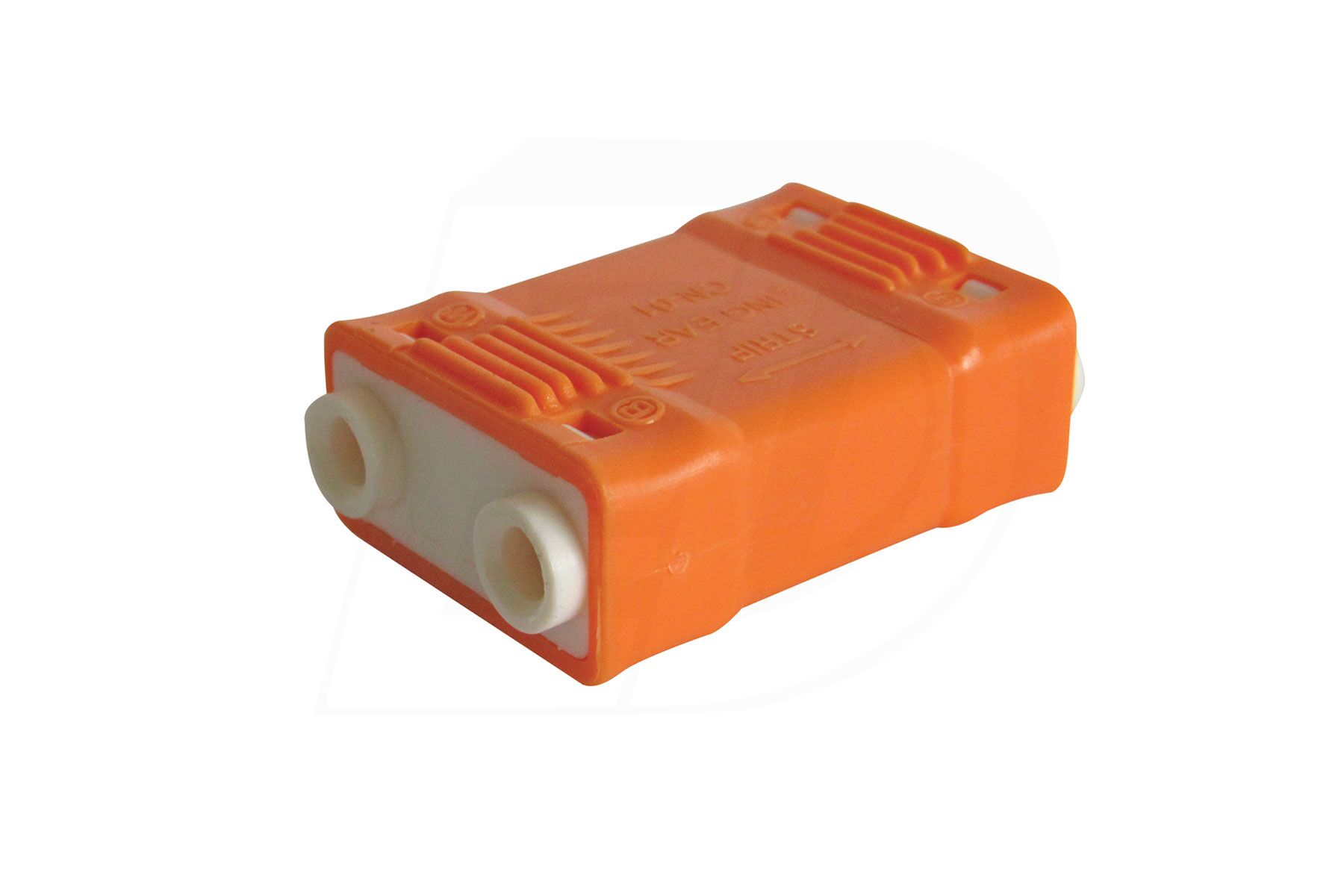

Type: Ballast Disconnect, two-piece, Orange Color
Wire: 18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise prior to applying solder on the stripped conductor end of the stranded wire).
Input/Output: 2 wires in / 2wires out
Strip Length: 9 ~ 10mm
Max. Current Rating: 3.0A 120VAC / 1.3A 277VAC / 1.04A 347VAC / 0.75A 480 VAC / 0.6A 600 VAC
Material: ROHS certified
Housing: Nylon, UL94V-0 Flammability Rated
Contacts: Copper Alloy
Temperature: 105ºC
One-time use only
Category:

TECHNICAL INFORMATION

Additional Info.

Wire

18AWG Solid and Tin Bonded Stranded Copper Conductors (Twist conductor strands together counterclockwise before applying solder on the stripped conductor end of the stranded wire).
Wire Input

2
Wire Output

2
Strip Length

9 ~ 10mm
Max. Current Rating

3.0A 120 VAC / 1.3A 277 VAC / 1.04A 347 VAC / 0.75A 480 VAC / 0.6A 600 VAC
Material

ROHS certified
Housing

Nylon
Contacts

Copper Alloy
Temperature

105ºC
Flammability Rated

UL 94V-0
