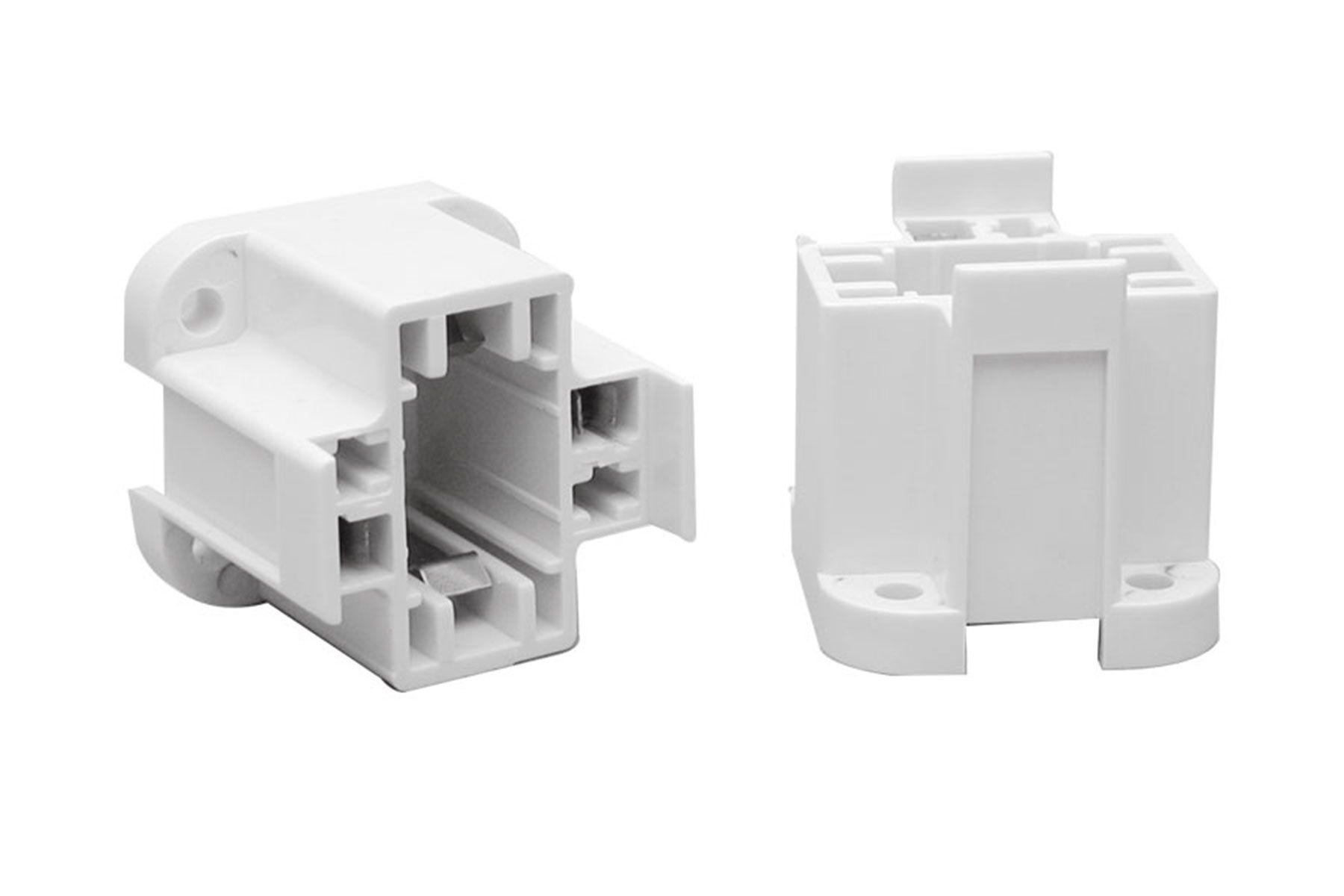

CF13G24-D1 – 2 Pin G24 / GX24-D1 Keyed Base CFL Light Socket – 13W Quad Tube Lamps – 75 Watt 600 Volts Max – cULus cCSAus

  • For 2-pin quad lamps in G24 or GX24 base
  • High-strength polycarbonate body
  • Metal spring clip for positive lamp retention
  • Quick connect push-in wire terminals for 18 AWG Solid or Twist & Tin or solder dipped wire, stripped 7/16”
  • Each wiring port accepts 2 wires for easy harness wiring
  • Four holes on the base for secure mounting
  • Rated 75W, 600V
  • cCSAus Certified / cULus Listed

TECHNICAL INFORMATION

ITEM

LAMP BASE

, ,

USE WITH

MOUNTING

CONNECTION.

WIRES-FROM

Wattage (W)

VOLTAGE (V)

COLOR.

MATERIAL.

STRIP LENGTH

CERTIFICATION

,
