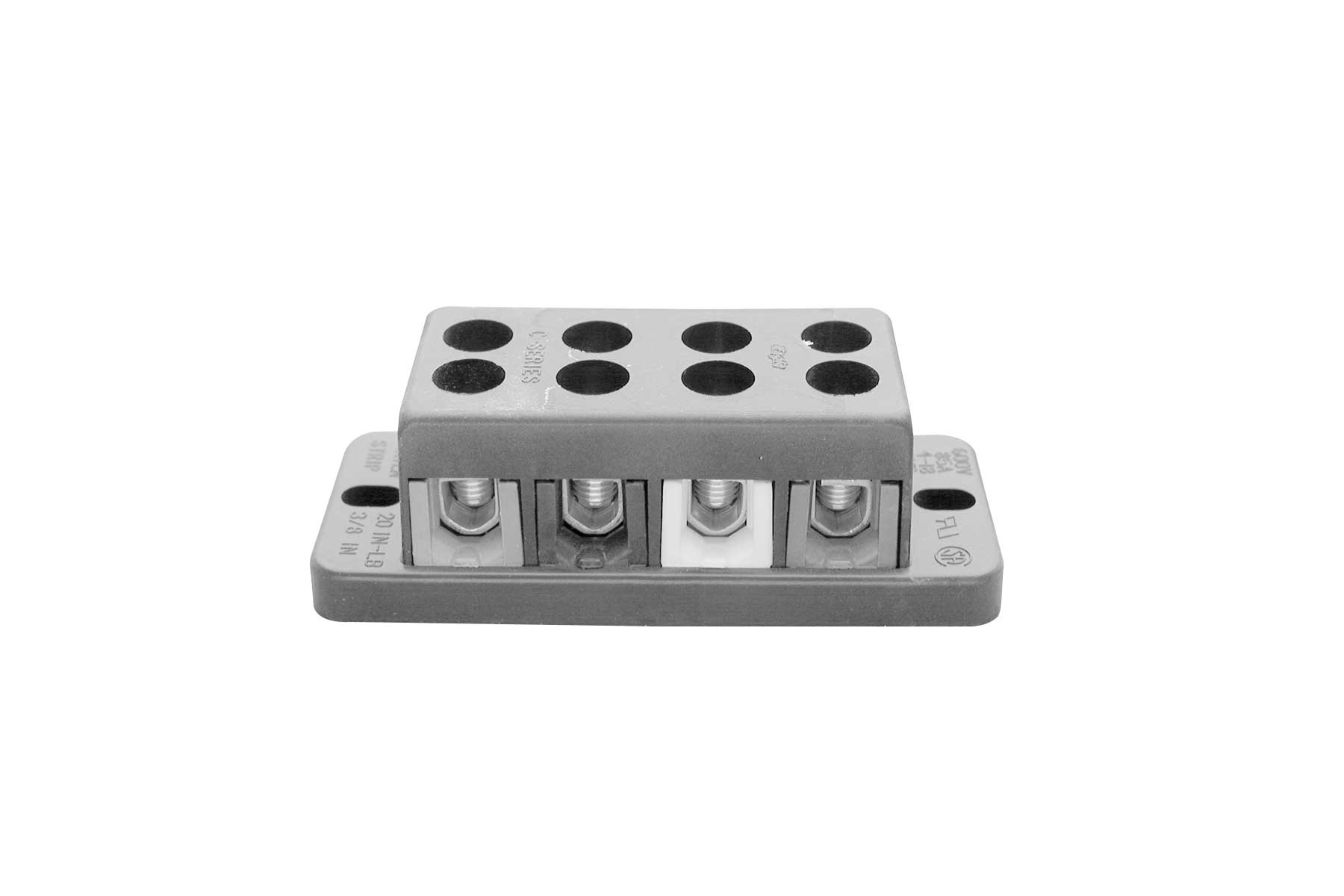

C-04 – Barrier Style Dead Front Double Row Terminal Block – 4 Poles – 18 to 4 AWG – 85 AMPS, 600V – .312 Inch Center to Center Spacing – 1/4 -20 Inch Screws – Black Phenolic – cURus
These terminal blocks are used to make safe, reliable, cost effective connections and feature a rugged construction.They feature dead front front and tops. They are rated 85 amps at 600 volts. They have a .312″ center to center spacing. They have 1/4- 20 screw. They are cURus rated.
Available Poles and Sizes:
C-02 – 2 Poles – 2.96″ Length – 2.59″ Mounting Dimension
C-03 – 3 Poles – 2.96″ Length – 2.59″ Mounting Dimension
C-04 – 4 Poles – 3.59″ Length – 3.22″ Mounting Dimension
TECHNICAL INFORMATION
| POLES | 4 Poles |
|---|---|
| OVERALL LENGTH | 3.59" |
| AMP RATING | |
| VOLTAGE (V) | |
| CENTER TO CENTER SPACING | .312" |
| STYLE | Barrier Style |
| WIRE GAUGE | 18 – 4 AWG |
| TERMINATIONS | |
| SCREW TYPE | |
| MATERIAL | |
| COLOR | |
| CERTIFICATION | |
| SIZES AVAILABLE | C-02 – 2 Poles – 2.96" Length – 2.59" Mounting Dimension |
SPEC SHEET
