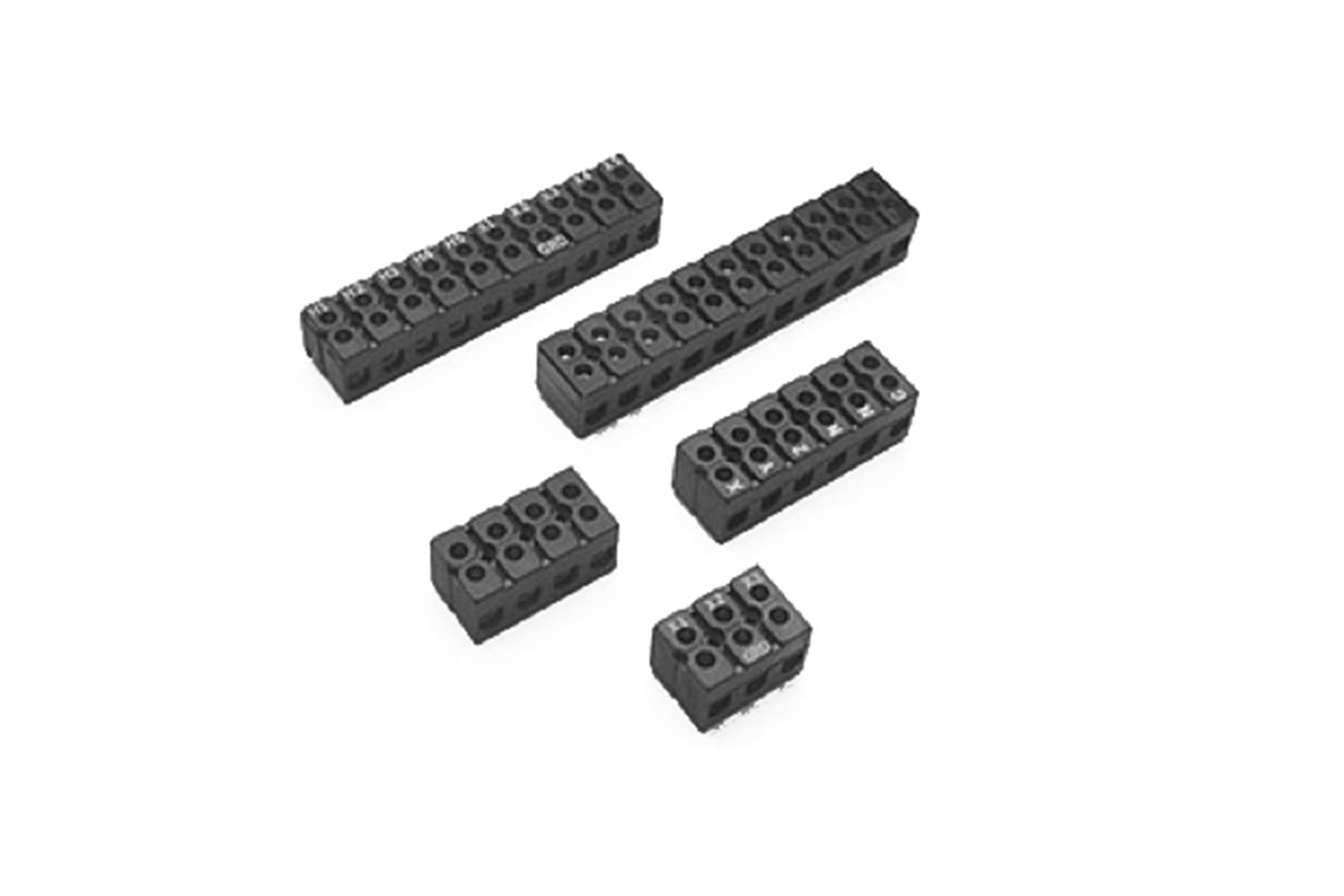

B-02 – Barrier Style Dead Front Double Row Terminal Block – 2 Poles – 18 to 4 AWG – 85 AMPS, 600V – .312 Inch Center to Center Spacing – 1/4 -20 Inch Screws – Black Phenolic – cURus

These terminal blocks are used to make safe, reliable, cost effective connections and feature a rugged construction.They feature dead front front and tops. They are rated 85 amps at 600 volts. They have a .312″ center to center spacing. They have 1/4- 20 screw. They are cURus rated.

Available Poles and Sizes:
B-02 – 2 Poles – 1.19″ Length
B-03 – 3 Poles – 1.81″ Length – .63″ Mounting Dimension
B-04 – 4 Poles – 2.44″ Length – 1.25″ Mounting Dimension
B-05 – 5 Poles – 3.06″ Length – 1.88″ Mounting Dimension
B-06 – 6 Poles – 4.940″ Length – 3.75″ Mounting Dimension
B-08 – 8 Poles – 4.030″ Length – 3.375″ Mounting Dimension
B-10 – 10 Poles – 5.560″ Length – 5.0″ Mounting Dimension
B-12 – 12 Poles – 6.190″ Length – 6.25″ Mounting Dimension

TECHNICAL INFORMATION

POLES

2

OVERALL LENGTH

1.19"

AMP RATING

VOLTAGE (V)

CENTER TO CENTER SPACING

.312"

STYLE

Barrier Style

WIRE GAUGE

18 – 4 AWG

TERMINATIONS

SCREW TYPE

MATERIAL

COLOR

CERTIFICATION

SIZES AVAILABLE

B-02 – 2 Poles – 1.19" Length
B-03 – 3 Poles – 1.81" Length – .63" Mounting Dimension
B-04 – 4 Poles – 2.44" Length – 1.25" Mounting Dimension
B-05 – 5 Poles – 3.06" Length – 1.88" Mounting Dimension
B-06 – 6 Poles – 4.940" Length – 3.75" Mounting Dimension
B-08 – 8 Poles – 4.030" Length – 3.375" Mounting Dimension
B-10 – 10 Poles – 5.560" Length – 5.0" Mounting Dimension
B-12 – 12 Poles – 6.190" Length – 6.25" Mounting Dimension

SPEC SHEET
