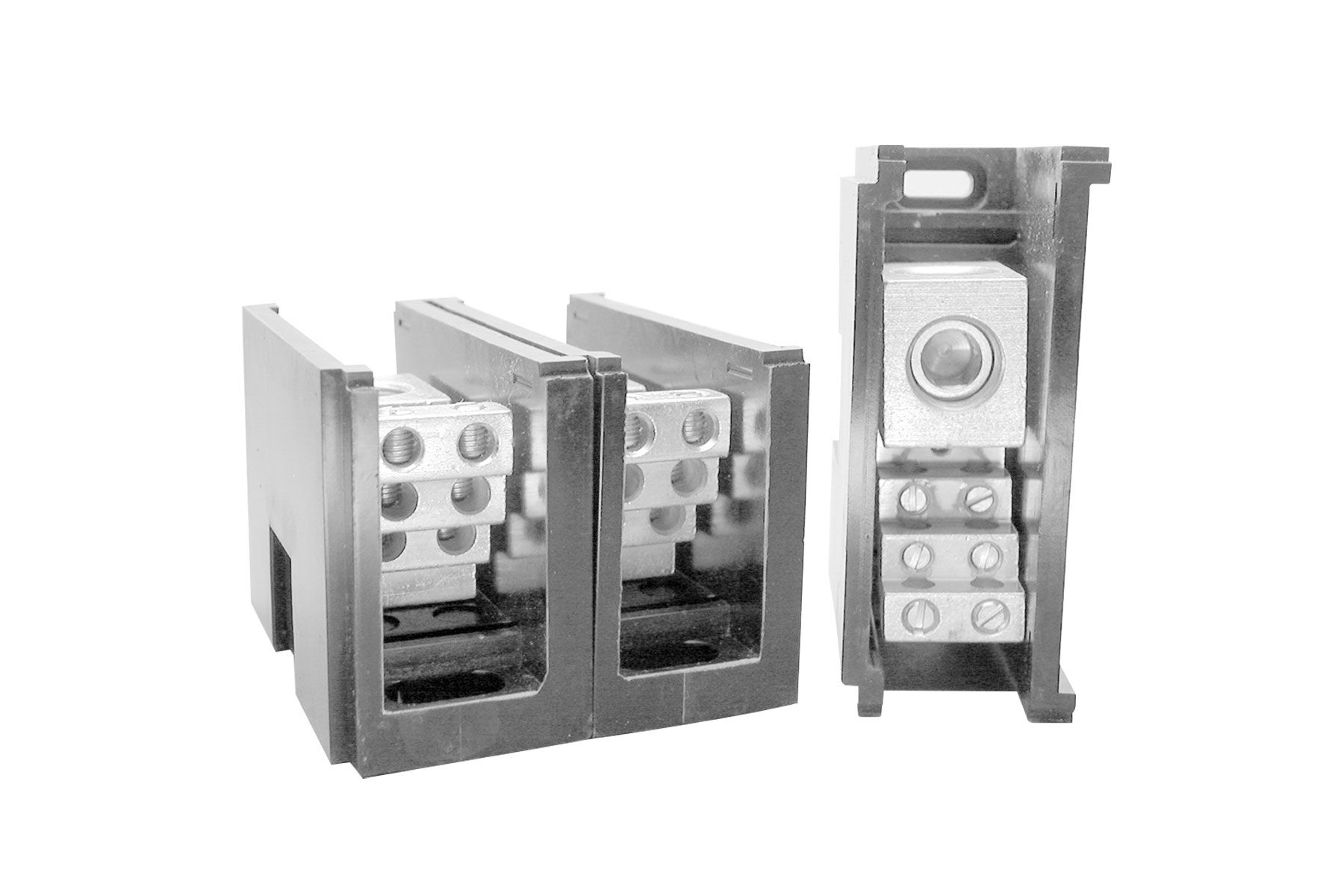

AS-K1-H6 – Power Distribution Block – 2/0-14 AWG Line Side – 4-14 AWG Load side – 175A 600 VAC Rated

Power Distribution Block – 2/0-14 AWG Line Side – 4-14 AWG Load side – 175A 600 VAC Rated

Modular Power Distribution Block System

• Versatile
• 90º C Rated
• Underwriters Recognized
• 14 AWG to 1000 MCM
• Handles Copper and / or Aluminum Wire
• Rated for up to 600 volts
• Wide wire ranges
• High-impact, extra-strong bases

Thermal:
Heat Distortion Temperature: 264 psi: 500+°F Flame Resistance – UL 94 (File No. E27601):
• 1/4″: 94V-0
• 1/8″: 94V-0
• 1/16″: 94V-0

Mechanical / Physical:
Flexural Strength: 16,000 – 20,000 psi
Compressive Strength: 24,000 – 28,000 psi
Tensile Strength: 6,000 – 8,000 psi
Impact Strength, Notch Izod: 2.0 – 4.0 ft-lb/in
Water Absorption, 24 hours, 23°C: 0.14%
Hardness, Barcol: 40-50

Electrical:
Arc Resistance: 190 sec
Comparative Tracking Index: 500+ volts
Inclined Plane Track Resistance, 2.5 kv: 900+ minutes
Dielectric Strength, Short Time: 350 volts/mil
Dielectric Constant, 60 Hz: 5.5
Dissipation Factor, 60 Hz: 0.008

Material: Cyglass 605
Connector body made of high strength, high conductive aluminum alloy, tin plated using ALSTAN 70 Process.
Base moulded from glass-filled polyester guaranteeing ultimate strength and best possible electrical insulating properties.

TECHNICAL INFORMATION

Additional Info.

LINE SIDE

1 Wire – 2/0 – 14 AWG

LOAD SIDE

6 Wire – 4 – 14 AWG

SIZE

Small

LENGTH

2.9"

WIDTH

1.04"

HEIGHT

2.34"

AMP PER POLE

175A

VOLTAGE

600 VAC
