Slot Head Screw Brass Plated

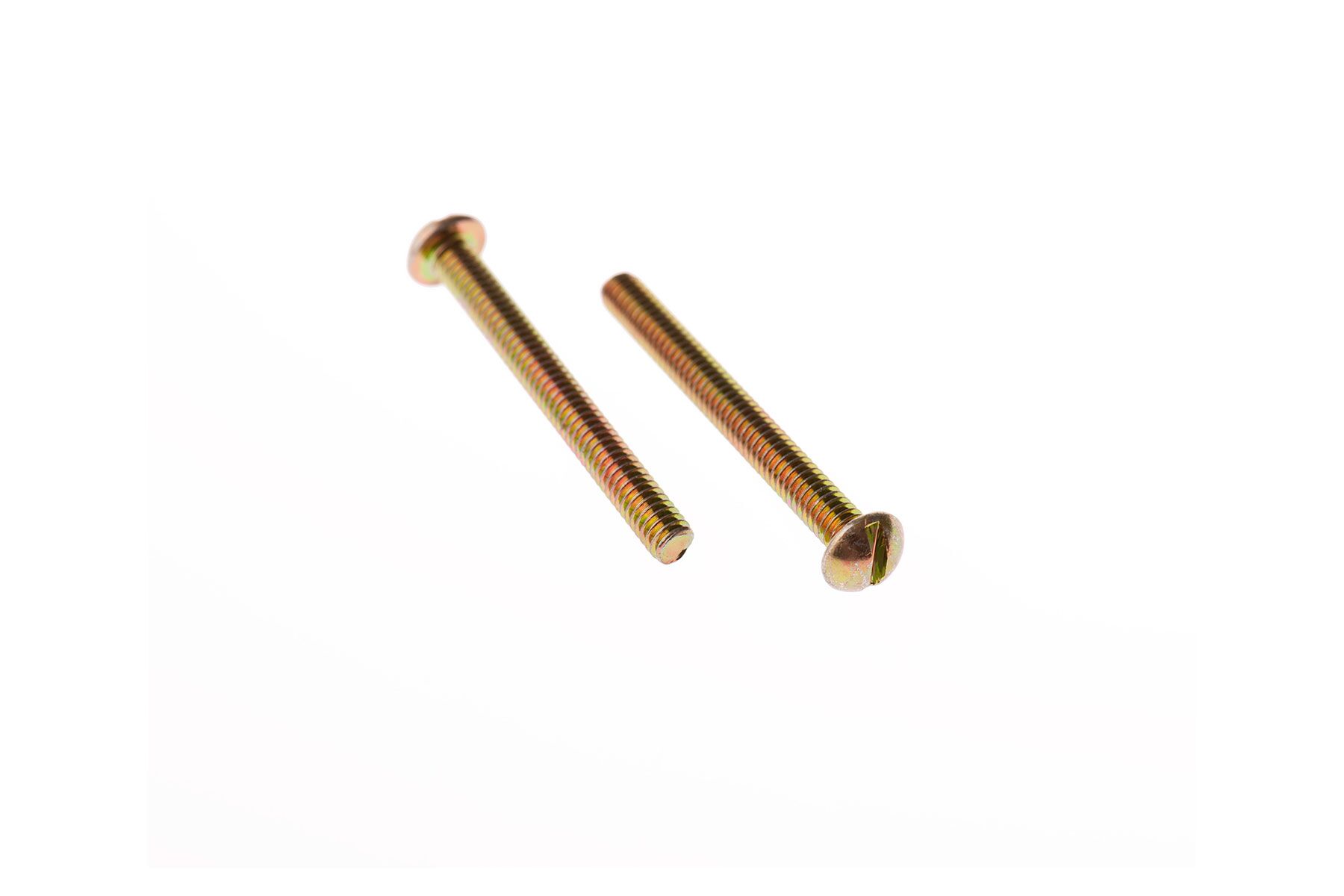

3010-18 – Slot Head Screw Brass Plated – 1-1/2″ Length – #8/32 Thread

Slot Head Screw Brass Plated – 1-1/2″ Length – #8/32 Thread

Categories: Lamp Parts and accessories, Lighting Components, Screws

TECHNICAL INFORMATION

TECHNICAL INFORMATION

Screw Head	Slot Head
Screw Length	1-1/2"
Thread	#8/32 Thread
FINISH	Brass Plated
